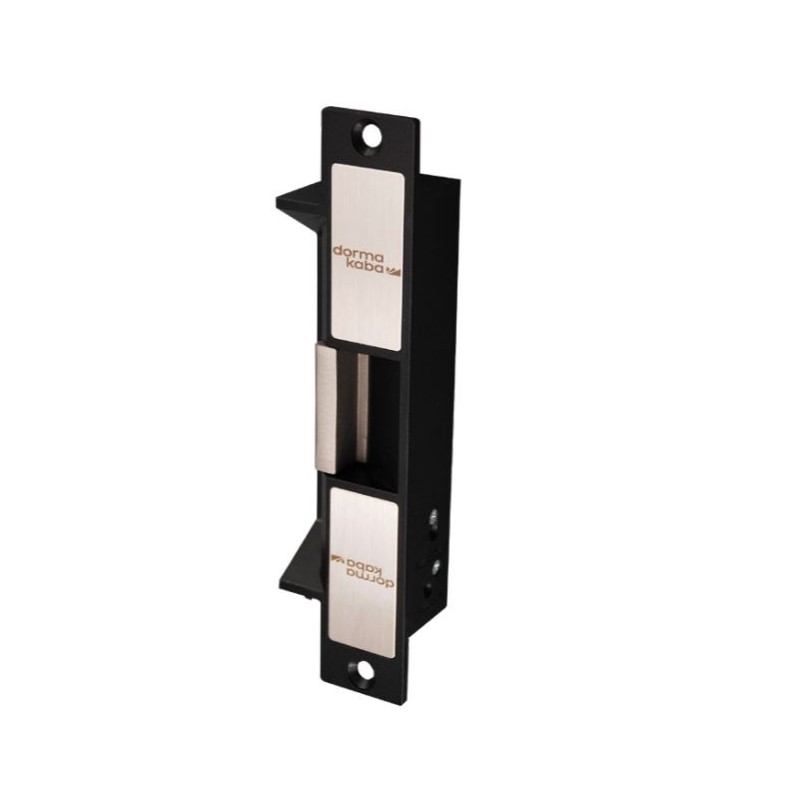

Dormakaba KES200Z Electric Strike, Zinc Alloy, Non Monitored, 12-28V DC/AC

DK-KES200Z
AVAILABLE TO ORDER
Dormakaba KES200Z Electric Strike, Zinc Alloy, Non Monitored, 12-28V DC/AC

The Dormakaba DK-KES200Z is an economical electric strike, designed for use with a large selection of mortice, key in knob and key in lever type locks in both timber and metal frames. The DK-KES200Z also offers variable voltage from 12VAC/ DC to 28VAC/DC as well as a fast and convenient interchangeable fail safe/fail secure function (changeable on site). The unit comes pre-drilled for the optional extension lips. Also included in package is an installation kit for metal frame installation.

  • Fail safe/fail secure configurable
  • Suits latch depth up to 15mm
  • Optional extension lips
  • Includes mounting tabs for metal frame

  • Dimensions: 175L x 44W x 27D(mm)
  • Holding strength: 800kg
  • Operating voltage: 12/28V AC/DC
  • Voltage tolerance: +/-15 percent
  • Current draw: 230mA/12VDC, 140mA/24VDC, 440mA/12VAC, 230mA/28VAC
  • Operating Temperature: -10 - +45 degrees Celsius
  • Humidity: 0 - 95 percent non-condensing
  • Cycle tested: to 1 million cycles
  • Material: zinc alloy housing, stainless steel keeper
