Dormakaba KES1500 Electric Strike, Rim/Surface Mount, Non Monitored, 12/24V DC
DK-KES1500
AVAILABLE TO ORDER

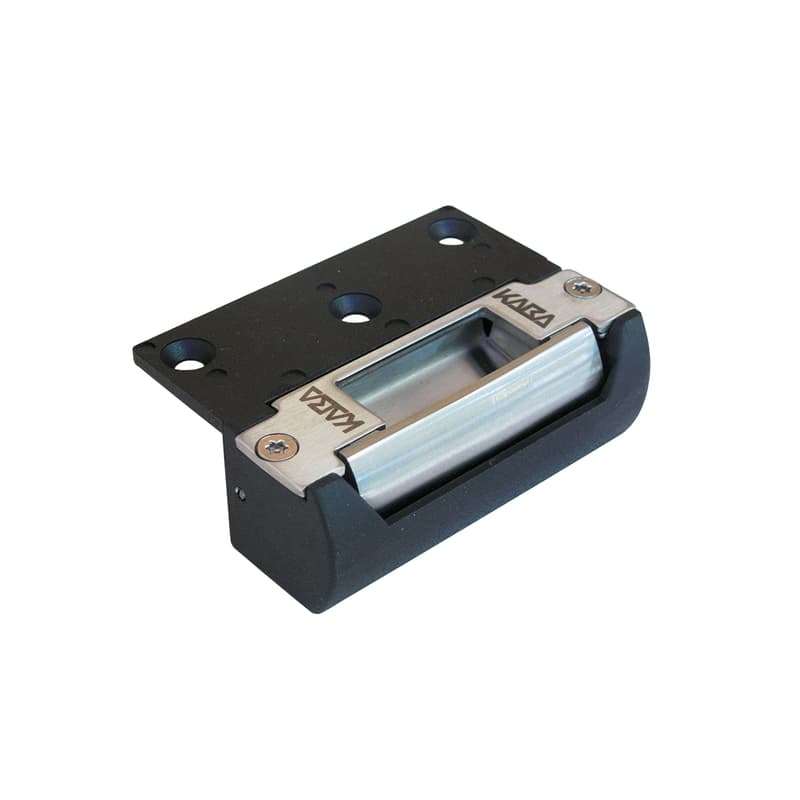

Dormakaba KES1500 Electric Strike, Rim/Surface Mount, Non Monitored, 12/24V DC
The Dormakaba DK-KES1500 rim mounted electric strike is an economical choice, offering dual voltage 12/24V as standard and an interchangeable fail safe/fail secure feature. It is constructed of a solid zinc alloy housing, stainless steel keeper and face plate. Designed for use with a large selection of rim mounted lock types it is suitable for wood framed and hollow metal doors.
- Fail safe/fail secure configurable
- Suits latch depth up to 15mm
- Dimensions: 62L x 86W x 28.5D(mm)
- Holding strength: 900kg
- Operating voltage: 12/24VDC
- Voltage tolerance: +/-15 percent
- Current draw: 250mA/12VDC, 150mA/24VDC
- Operating Temperature: -10 - +45 degrees Celsius
- Humidity: 0 - 95 percent non-condensing
- Cycle tested: to 1 million cycles
- Material: zinc alloy body, stainless steel faceplate and release lip
Datasheets
No description available for this product
- Dimensions: 62L x 86W x 28.5D(mm)
- Holding strength: 900kg
- Operating voltage: 12/24VDC
- Voltage tolerance: +/-15 percent
- Current draw: 250mA/12VDC, 150mA/24VDC
- Operating Temperature: -10 - +45 degrees Celsius
- Humidity: 0 - 95 percent non-condensing
- Cycle tested: to 1 million cycles
- Material: zinc alloy body, stainless steel faceplate and release lip
