Dormakaba KES100 ANSI Electric Strike, Non Monitored, 12/24V DC

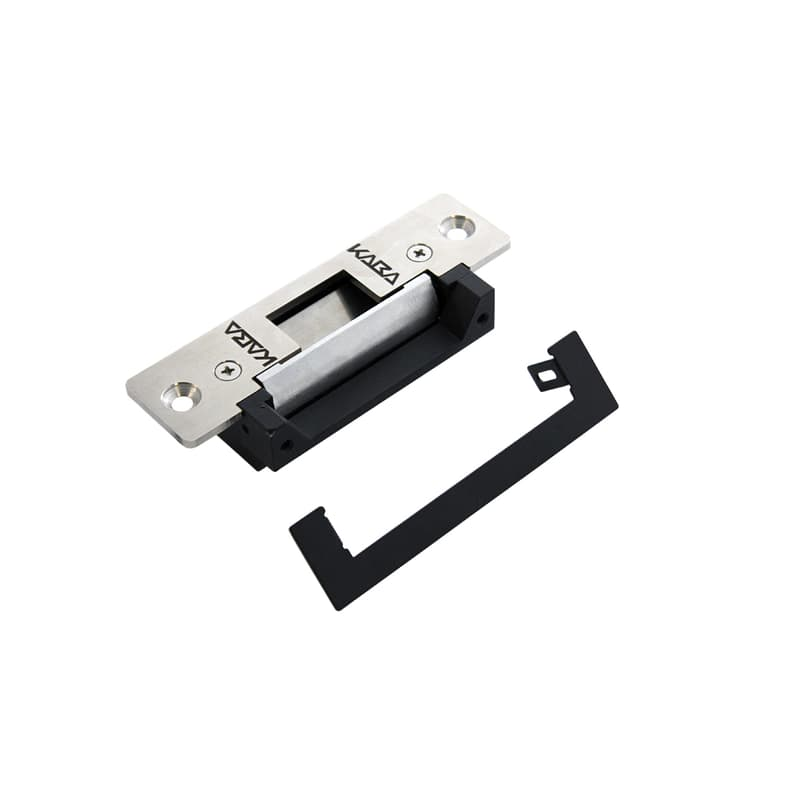

The Dormakaba DK-KES100 ANSI electric strike is an economical choice, offering dual voltage 12/24V as standard and an interchangeable fail safe/fail secure feature. It is constructed of solid zinc alloy housing, a stainless-steel keeper and face plate. Designed for use with large selection of morticed type locks and sporting a keeper depth of 16mm it also includes a 202mm long face plate, making a single model suitable for all types of wooden, steel, and aluminium door frames. It is supplied as standard with trim plate to cover any damage to frame during installation.

• Fail safe/fail secure configurable
• 16mm keeper
• Includes long face plate for timber frame installation
• Includes trim plate
• Optional lip extension brackets

Datasheets

• DK-KES100 Datasheet.pdf

• Dimensions: 124L x 43.5W x 29.5D(mm)
• Holding strength: 700kg
• Operating voltage: 12/24VDC
• Voltage tolerance: +/-15 percent
• Current draw: 250mA/12VDC, 150mA/24VDC
• Operating Temperature: -10 - +45 degrees Celsius
• Humidity: 0 - 95 percent
• Latch Throw: 19mm
• Material: zinc alloy body, stainless steel faceplate and keeper
