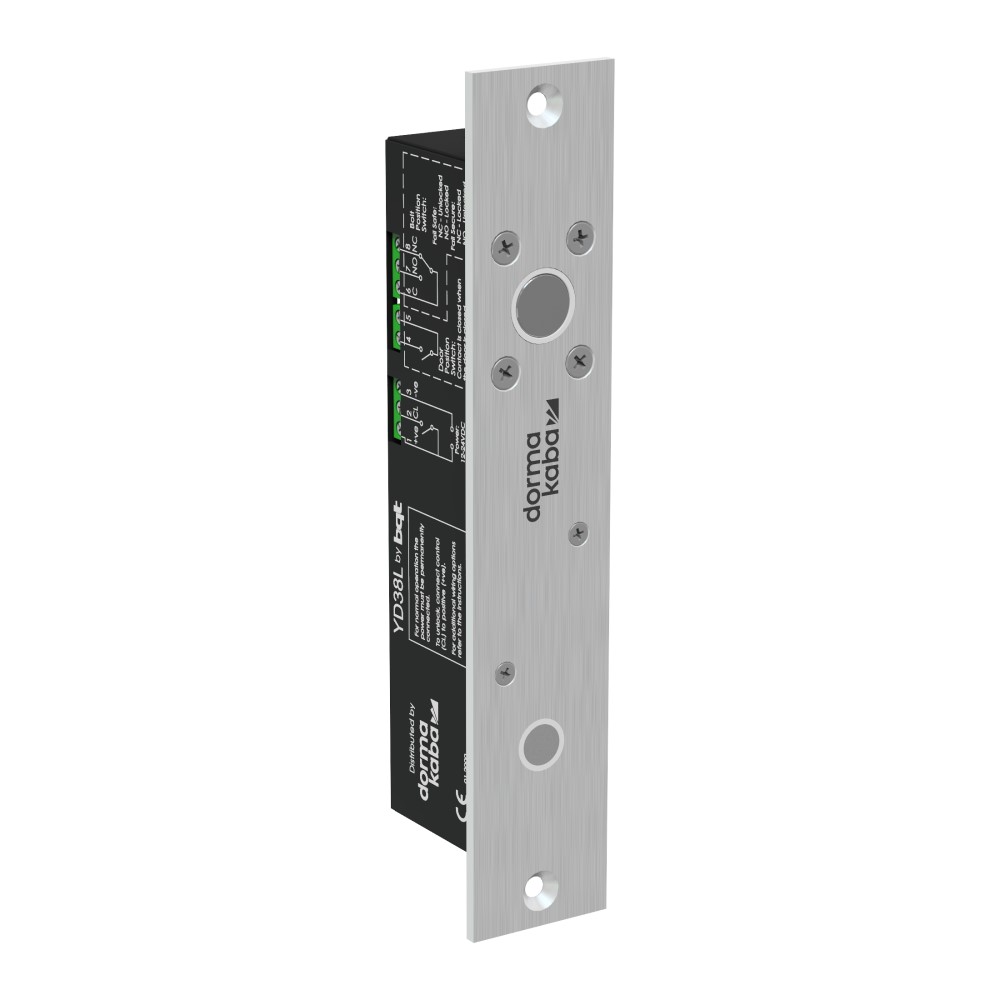

Dormakaba's DK-DB38LPTL electronic deadbolt lock is a high security streamlined lock that is suitable for use on any single or double acting door. The DK-DB38LPTL includes a positioning magnet-latch to effectively align doors before locking. With a solid 14.2mm stainless steel bolt pin and a holding force of 2000kg, this electronic deadbolt makes for a reliable and robust locking solution.

  • Dimensions: 203L x 37.5W x 44D (mm)
  • Bolt diameter: 14.3mm
  • Holding force: 2000kgs
  • Power input: 12 - 24V DC
  • Power consumption: 1.5A (peak), 230mA (idle)
  • Endurance: 1,000,000 cycles

  • Power To Lock / Fail Safe
  • Strong magnetic latch for door alignment
  • Automatic locking
  • Anti-tamper
  • Automatic re-lock attempts
  • Thermal overheating protection
  • Reverse polarity protection
  • Dual monitoring (door and bolt positions)
  • Horizontal or vertical mounting options
  • Single or double acting doors suitability
  • Glass door mounting options (accessories sold separately)
