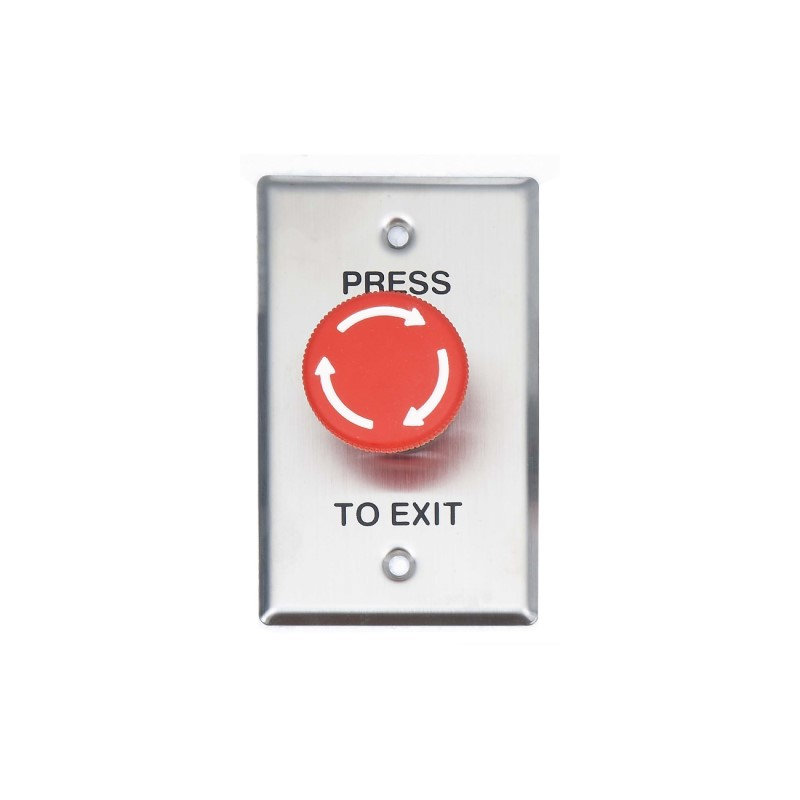

Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate

CSD-WEL2210R-S
AVAILABLE TO ORDER
Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate

Mechanical latching push to exit red mushroom button with isolated NO and NC contacts, mounted on a stainless steel plate.

  • 40mm mushroom head
  • Current (max): 10A/24VDC
  • Current (min): 5mA
  • Resistance: <=50 mΩ
  • Insulation resistance: >100 MΩ
  • Contacts: 1 x NO and 1 x NC (isolated)
  • Stainless steel GPO plate
  • Dimensions: 70 x 115 x 50mm (W x H x D)
