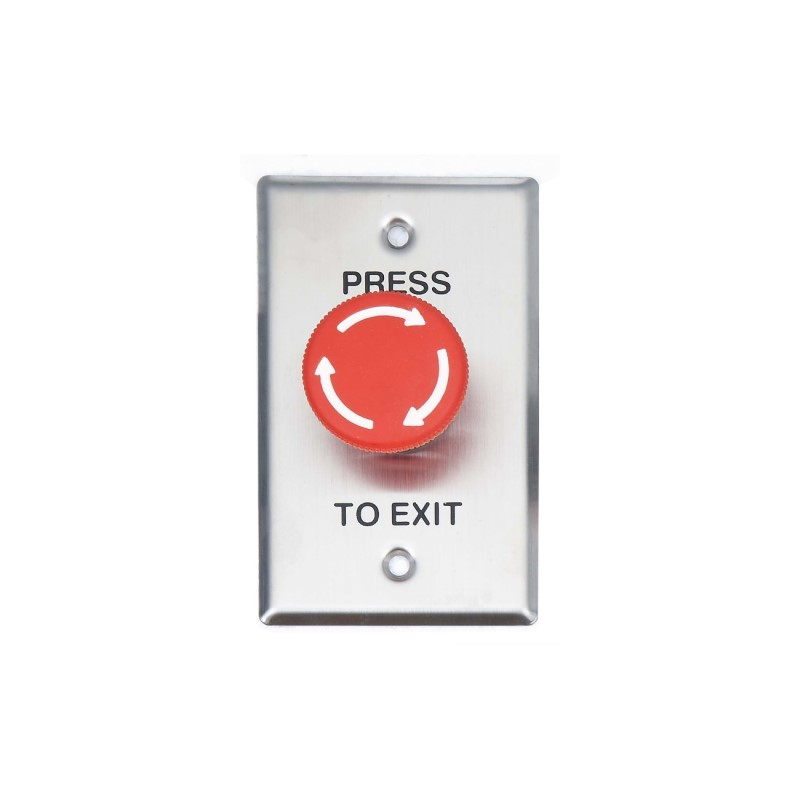

Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate
Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate
Code: CSD-WEL2210R-S
Brand: Generic
Product Details
Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate
Brand: Generic
Product Details
Exit Button, Big Mushroom, Red, Twist to Reset, Standard Stainless Steel Plate
Mechanical latching push to exit red mushroom button with isolated NO and NC contacts, mounted on a stainless steel plate.
- 40mm mushroom head
- Current (max): 10A/24VDC
- Current (min): 5mA
- Resistance: <=50 mΩ
- Insulation resistance: >100 MΩ
- Contacts: 1 x NO and 1 x NC (isolated)
- Stainless steel GPO plate
- Dimensions: 70 x 115 x 50mm (W x H x D)
