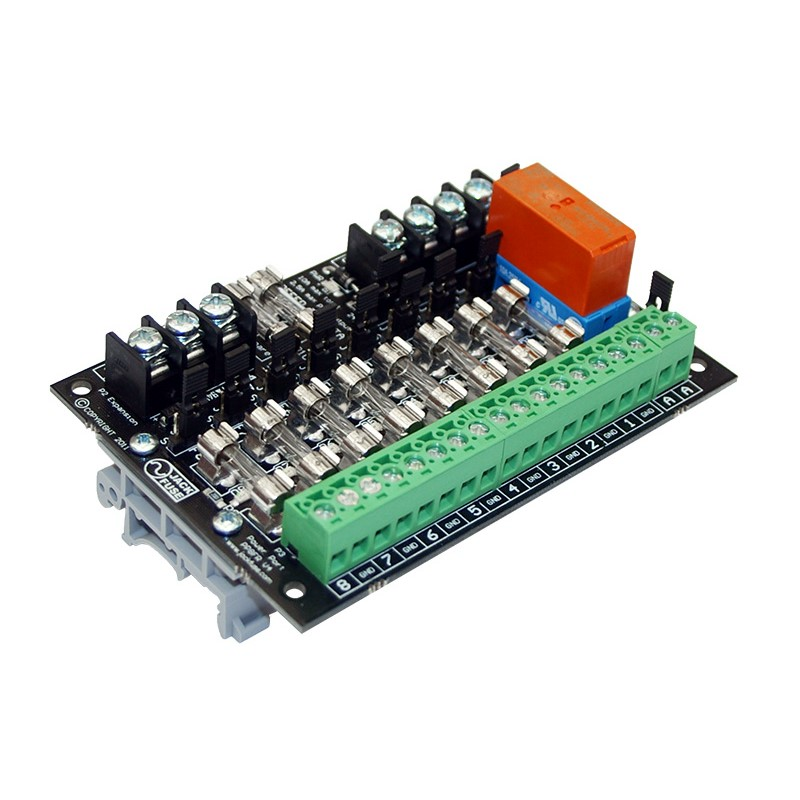

The Power Port 8FR is an expandable module designed to provide protected power distribution for building electronic access control and security devices. In addition, the PP8FR also interfaces electronic access control devices to a buildings fire detection and emergency evacuation system.

• Eight individually fused outputs each with status LED
• Field replaceable fire trip relay
• Individual field selectable power outputs - fire power or standard power
• On board spare fuse holders
• Wide range of operating voltages
• Unlimited local and remote expansion options
• Fire relay status output with on board customisable EOL resistors, or N/C output for failsafe fire trip connection to extra modules or other equipment
• Drive fire relay directly from FIP voltage or onboard voltage via N/C FIP contact
• Unfused auxiliary output for expansion
• Drastically reduced material list, cost and install time compared to traditional methods
