Tactical 10 Way PDM, 1A Fuses (Resettable), 12VDC / 24VAC Selectable, Fault Relay Output

Home // Power & Cabling // Power Supplies // Tactical // Accessories // Power Distribution Modules // Tactical 10 Way PDM, 1A Fuses (Resettable), 12VDC / 24VAC Selectable, Fault Relay Output

Code: TP-PDM6-1A
Brand: Tactical Power Products
Product Details
Tactical 10 Way PDM, 1A Fuses (Resettable), 12VDC / 24VAC Selectable, Fault Relay Output

Overview
Features
Specifications
Downloads

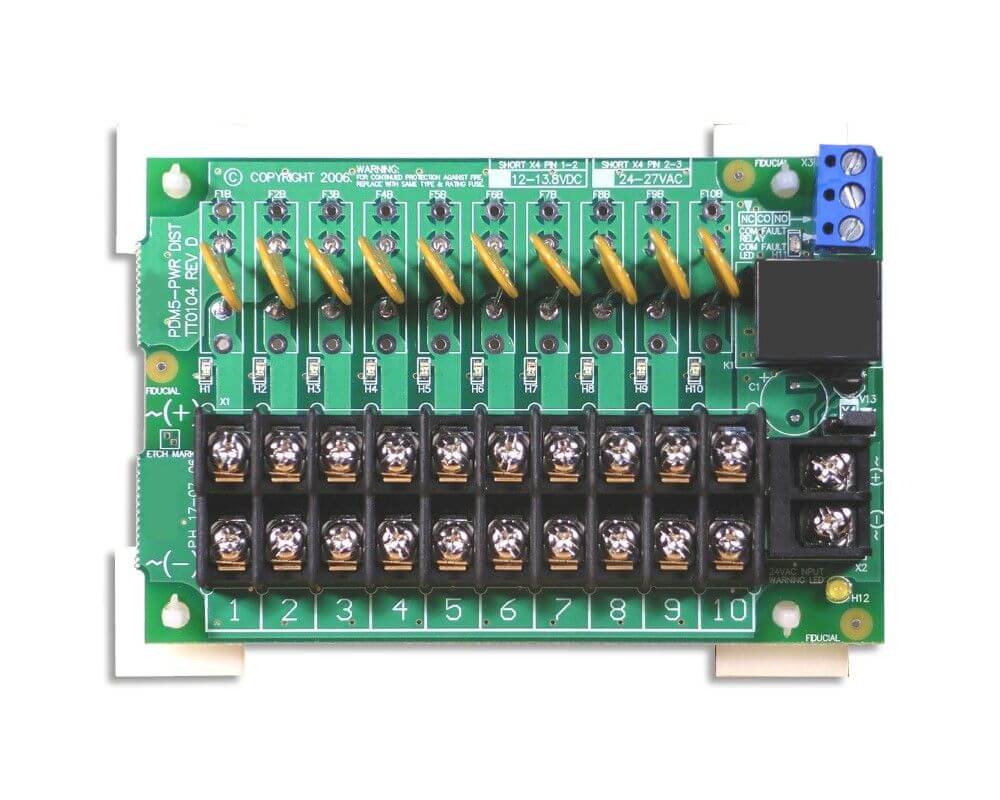

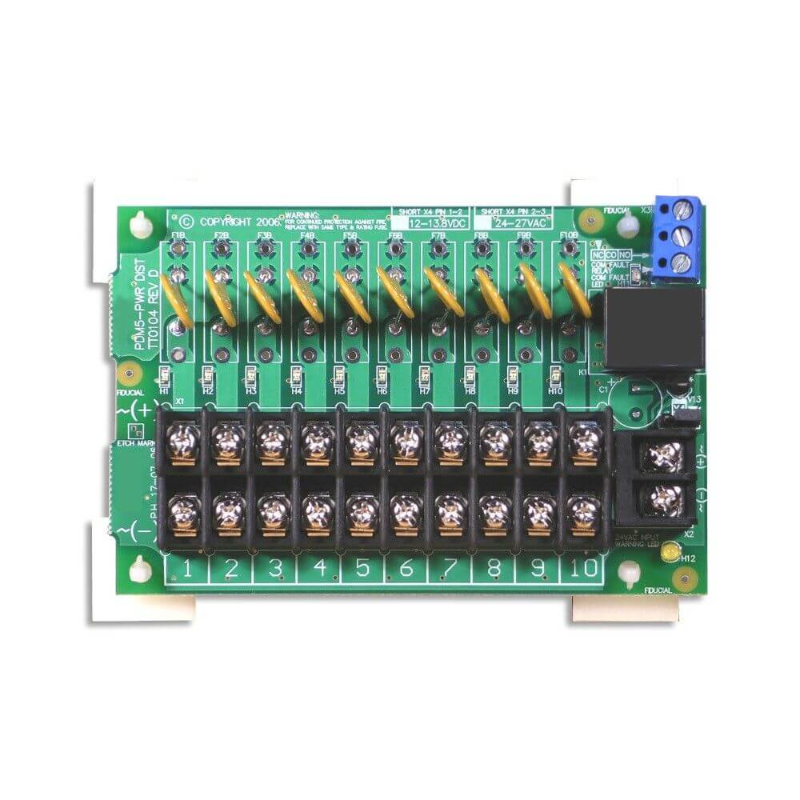

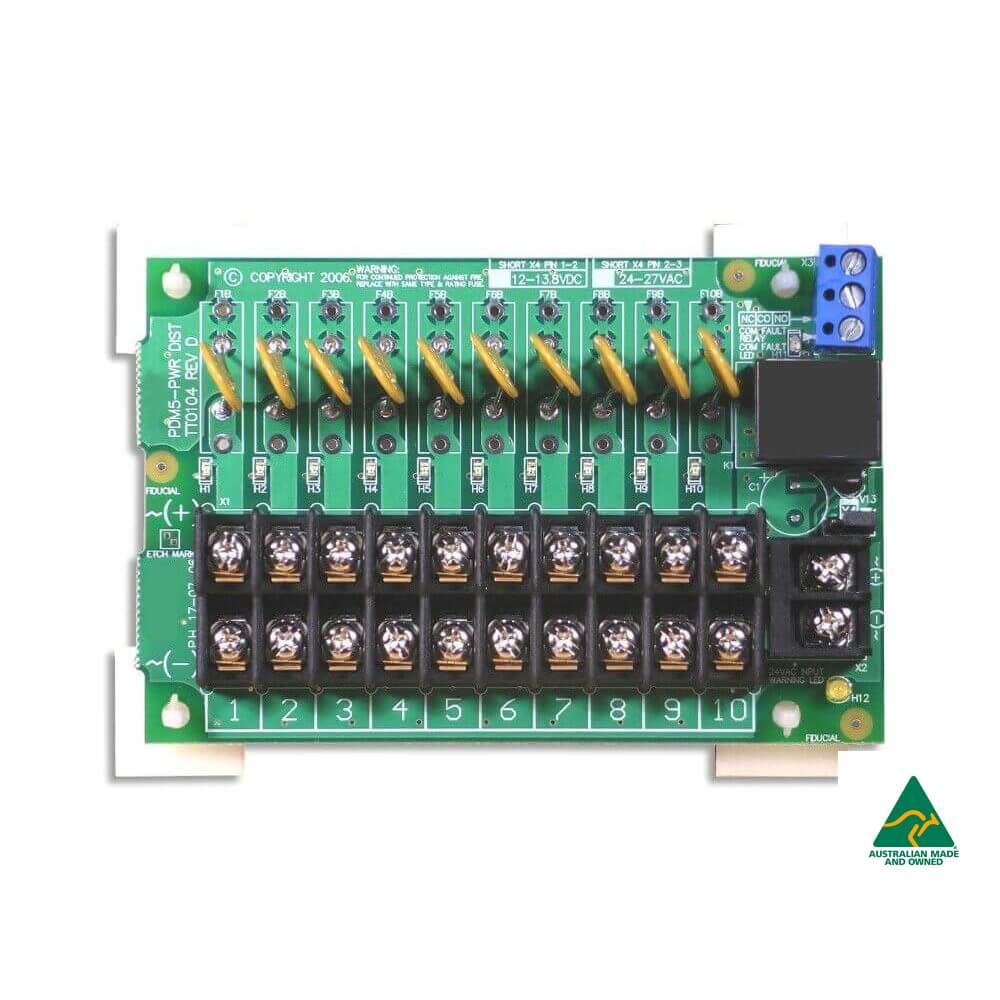

The Tactical TP-PDM6-1A power distribution module offers a user friendly solution to low voltage power distribution for low voltage DC and AC equipment (e.g. CCTV and Access Control systems). The use of PDM modules minimises the likelihood of a total system shutdown in the event of a short circuit on any one single circuit run. Featuring state-of-the-art SMD technology and 10 individual resettable 1A fused circuits - each with an LED to indicate fuse status.

10 individual resettable 1A fuses
Common fault relay SPDT
Single input terminal
12VDC /24VAC jumper

Datasheets

TP-PDM6-1A Datasheet.pdf

Dimensions: 110L x 81W x 34H mm
Weight: 120 gm
Relay: 1 Amp
