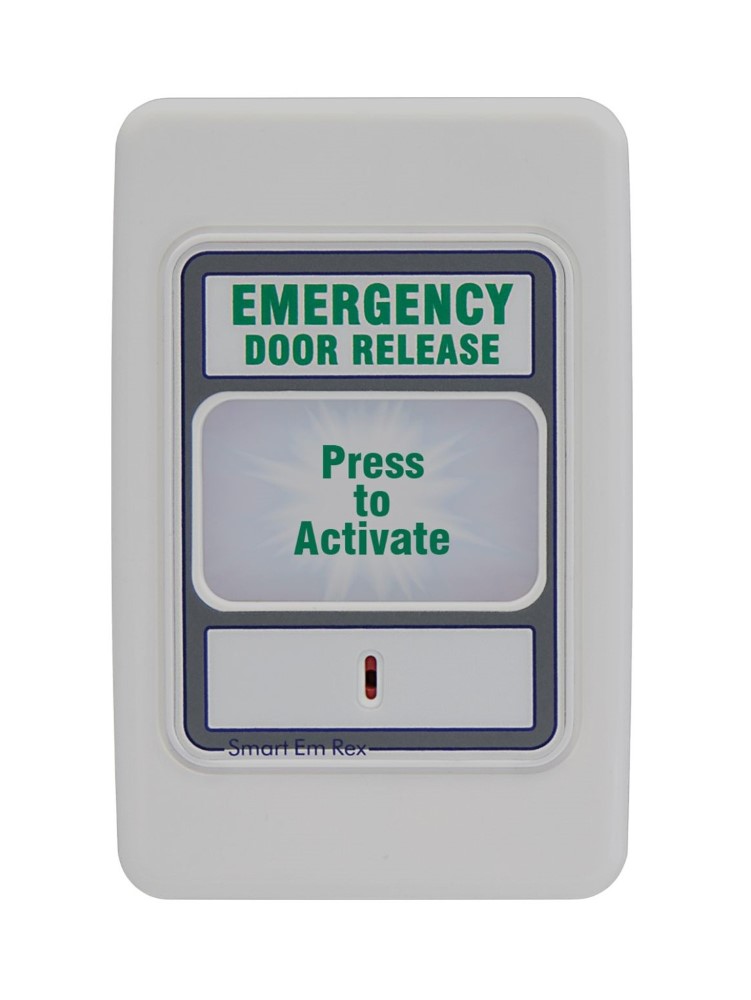

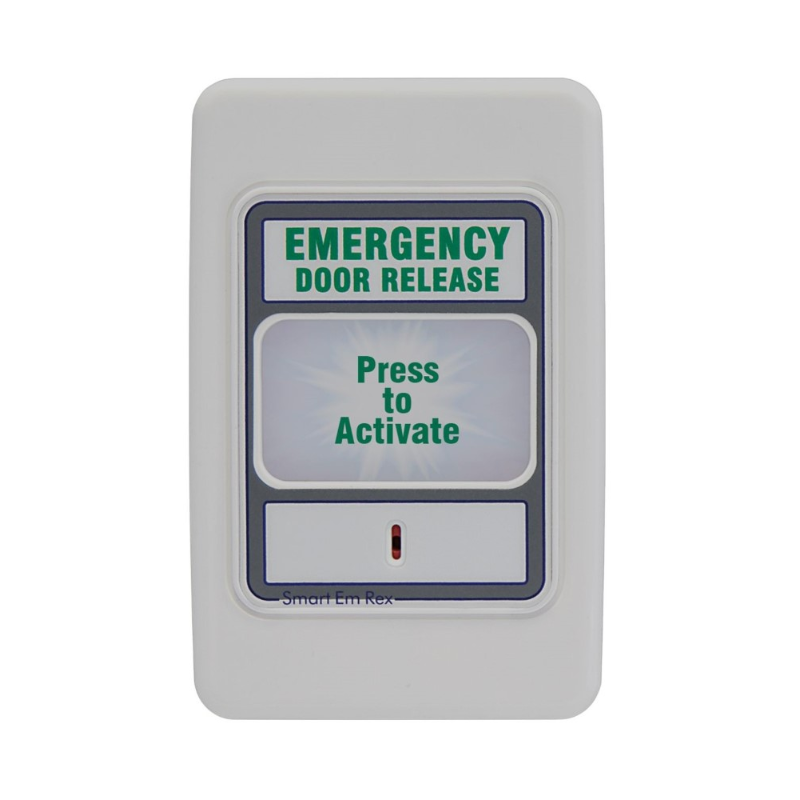

The Trojan Em Rex (Emergency Exit Device) is an emergency door release unit which can be used on its own or in conjunction with the Prox Rex units to make up a total access controlled exit solution.

• Field resettable unit, with each unit supplied with a single reset key.
• Single gang profile fits standard electrical flush box.
• No breaking of glass when operated.
• Two outputs, one set to break lock power and one set for status monitoring.
• Visual confirmation of activation.
• Audible confirmation of activation.
• Ancillary input for remote operation of sounder.
• Minimal moving parts.
• The face plate will not deteriorate over time and is easily cleaned.

Datasheets

• CSD-30510x Datasheet.pdf

• Power requirements 9 to 16Vdc (only if using on board sounder)
• 10mA at 13.6 Vdc
• Clean N/O and N/C outputs
• The contacts are rated at 1 AMP at 30Vdc
