Trojan Em Rex Cover, Monitored, Clear Polycarbonate

CSD-30510C
AVAILABLE TO ORDER

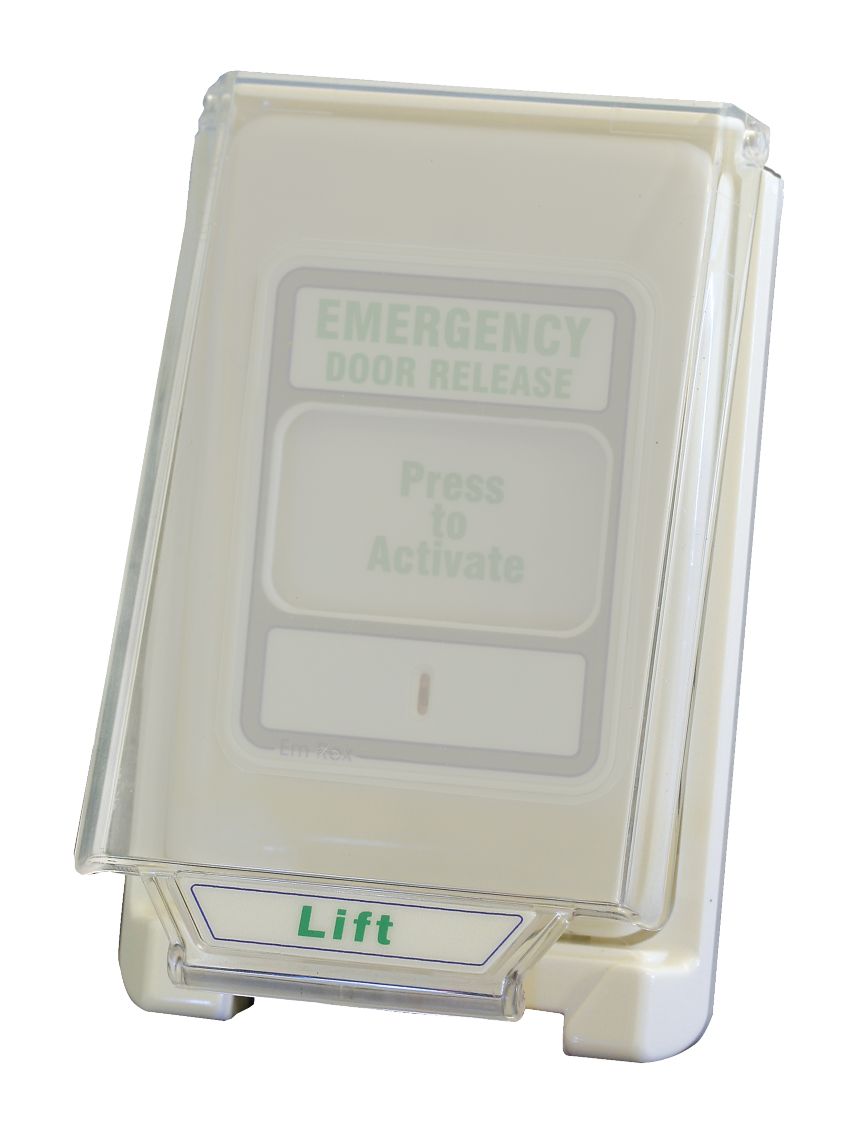

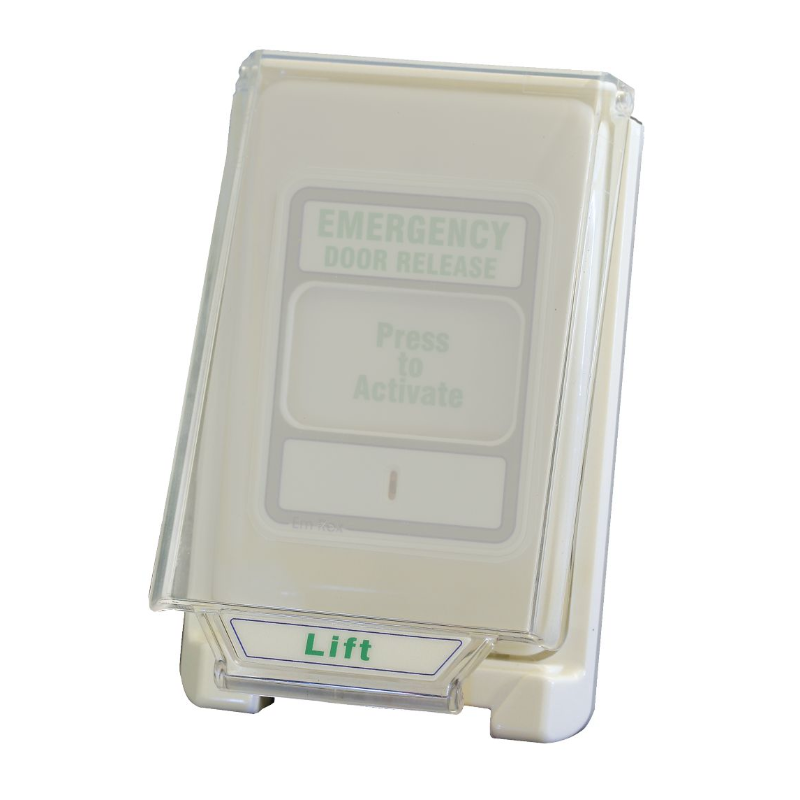

Trojan Em Rex Cover, Monitored, Clear Polycarbonate

The Trojan Monitored Em Cover is for use with the Em Rex unit to deter unintended or malicious activation of the unit when it is installed in a public area. This version has two outputs which can be used to monitor the operation of the cover.

  • Overall dimensions: 92mm (w) x 153mm (h) - fits a single gang electrical flush box
  • Switching voltage: max 30Vdc, 200mA
  • Output for connection to the Em Rex for audible indication
  • N/C output for status monitoring (opens on activation)

  • Designed to complement the Em Rex unit.
  • Two outputs, one set for local audible indication and one set for status monitoring
  • The Em Cover is secured behind the Em Rex unit to prevent removal
  • Designed to latch closed to make the operation of it a deliberate action
  • Polycarbonate construction to withstand long term operation without any deterioration
  • Weather resistant for external use
