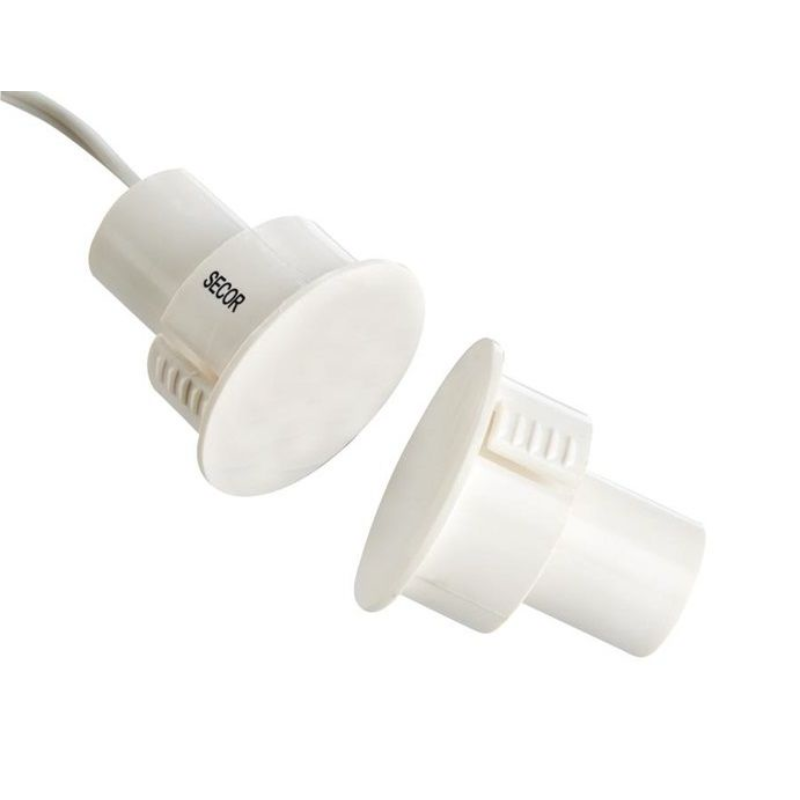

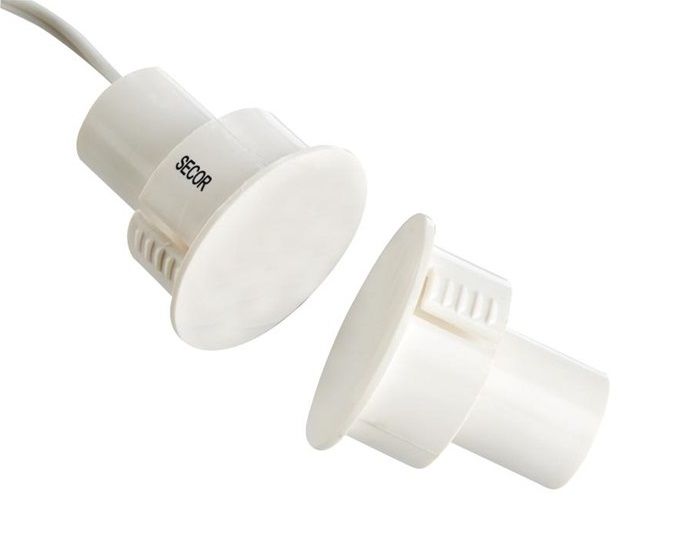

Recessed Steel Door Reed Switch, 25mm, White

Magnetic reed switches use no glue or screws to mount. Small protrusions hold the contact in place. Use indoors or outdoors for an attractive recessed installation.

• Stocked in white, other colours available upon request

Datasheets

• CSD-2003 Datasheet.pdf

• Contact: NC, SPST
• Rating (max): 10W
• Voltage (max): 100VDC
• Current (max): 500mA
• Reed: Epoxy sealed
• Dimensions: 30 x 25mm
• Colour: White
• Gap: 40mm
