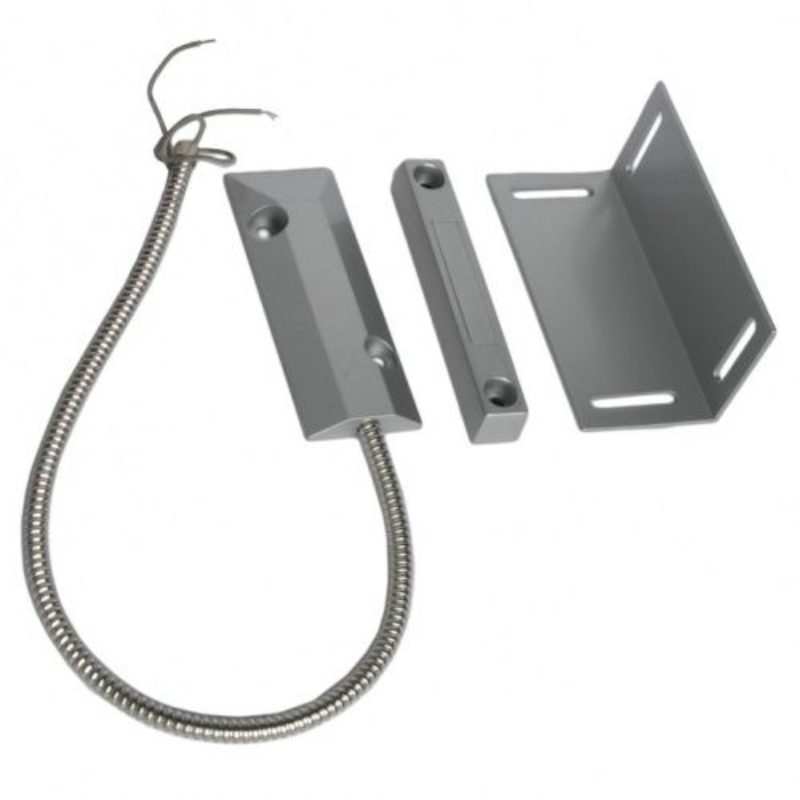

Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap
CSD-2000
AVAILABLE TO ORDER
Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap
features
Specifications
Downloads
Reed switch 106 x 36.5 x 10mm
Magnet 106 x 15.5 x 16mm
Bracket 107 x 50 x 50mm
Gap 65mm
Extra wide gap
350mm armoured cable (stainless)
Robust constructed and epoxy sealed to ensure that there is no corrosion
Universal mounting with L bracket
Contact: NC, SPST
Rating (max): 10W
Voltage (max): 100VDC
Current (max): 500mA
Reed: Epoxy sealed
Dimensions:
Armoured cable: 630mm
Reed switch: 106 x 36 x 10mm
Magnet: 106 x 15 x 16mm
Bracket: 106 x 50 x 50mm
Gap: 50mm
Datasheets
CSD-2000 Datasheet.pdf
add
remove
Description
No description available for this product
add
remove
Product specifics & Details
Contact: NC, SPST
Rating (max): 10W
Voltage (max): 100VDC
Current (max): 500mA
Reed: Epoxy sealed
Dimensions:
Armoured cable: 630mm
Reed switch: 106 x 36 x 10mm
Magnet: 106 x 15 x 16mm
Bracket: 106 x 50 x 50mm
Gap: 50mm
Similar Products
AVAILABLE TO ORDER
X2-REED-301
Roller Door Heavy Duty Reed Switch, 48mm, 480mm Armoured Cable, 30mm Gap
