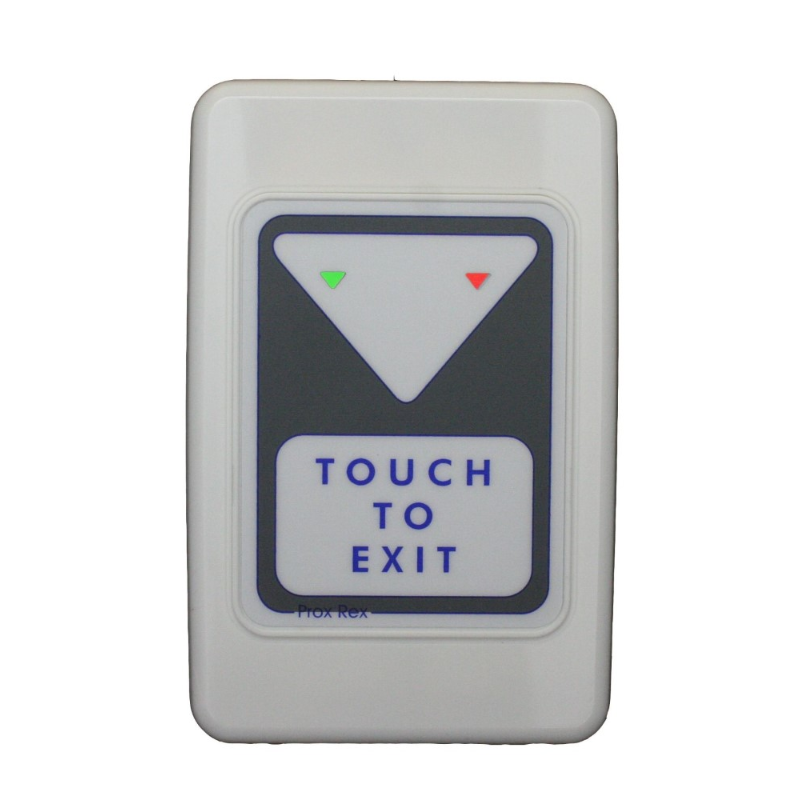

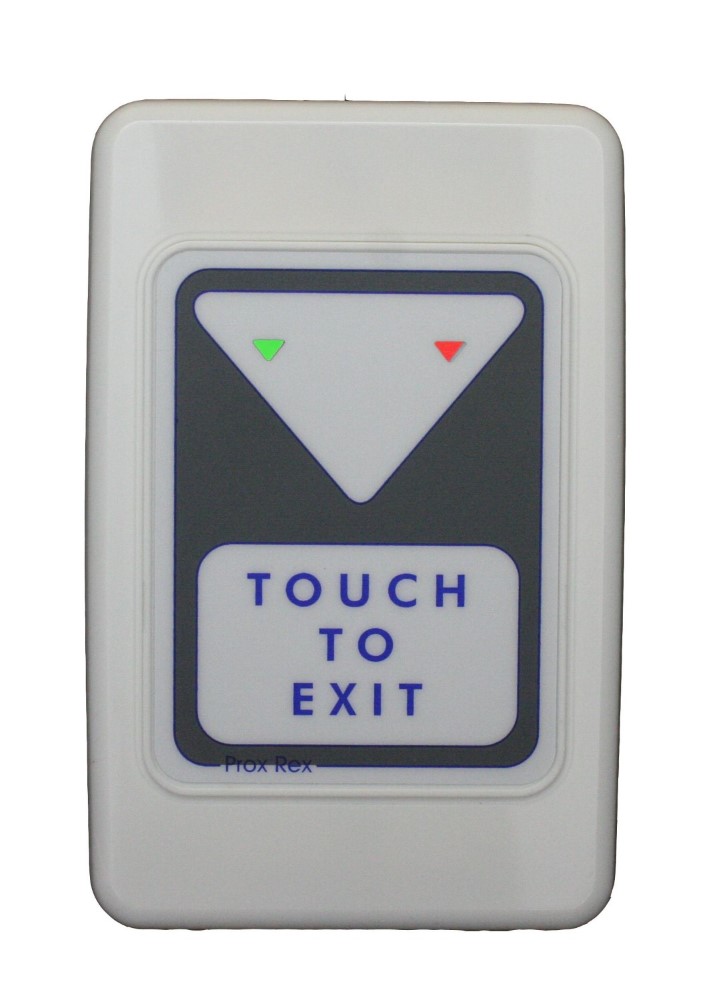

Trojan Prox Rex, Touch Request To Exit Unit, White

The Trojan Prox Rex (Touch to Exit) electronic switch is a touch sensitive switch unit designed for use with access control systems and is an ideal replacement for conventional push buttons, door release buttons, call switches and more.

• Requires only the lightest touch to activate, making it perfect for fast and easy egress, an advantage for the elderly and disabled.
• Single gang profile fits standard electrical flush box.
• Can be used for a number of applications.
• Vandal-resistant - all components are behind the plate.
• Perfect replacement for door release buttons that are in high usage areas.
• No moving parts.
• Ideal for areas where infection control is important
• Built-in sounder to provide audible confirmation of operation.
• Two LED indicators provide visual confirmation for heartbeat (red) and operated (green).
• The switch is fully self-calibrating.
• The face plate will not deteriorate over time and is easily cleaned.

• Power requirements 9 to 16V DC - 50mA at 13.6 VDC
• Clean N/O and N/C
• The contacts are rated at 1 AMP at 30Vdc
