Secor 4-in-1 Combo Siren / Buzzer / Blue LED Strobe / LED Steady

CSD-WP15
AVAILABLE TO ORDER

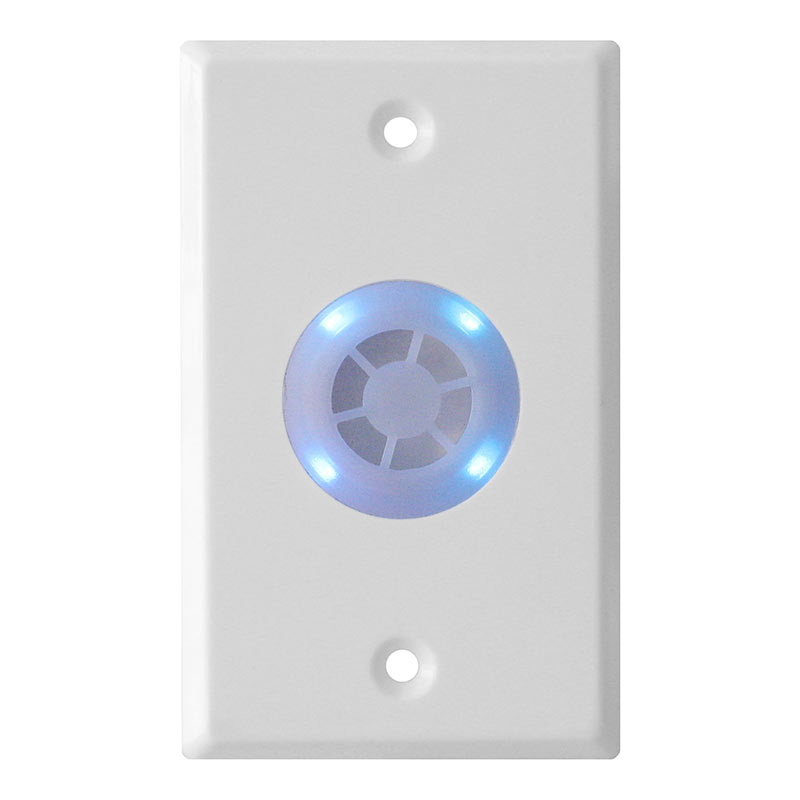

Secor 4-in-1 Combo Siren / Buzzer / Blue LED Strobe / LED Steady

Optical acoustic indicator which provides an indication of door status.

  • All in one siren, buzzer, blue LED strobe and LED steady
  • Sound level selectable
  • Standard double GPO size
  • Siren and strobe for forced door alarm
  • Door open too long buzzer
  • Door status LED

  • Four inputs: alarm, buzzer, LED strobe, and LED steady - negative triggering
  • Voltage: 9-15VDC
  • Selectable sound pressure levels
  • High: Siren 105dB/m; buzzer 90dB/m
  • Low: Siren 80dB/m; buzzer 75dB/m
  • Current: Siren 150mA (max); LED 30mA
  • Dimensions: 110(L) x 70(W) x 35mm(D)

add remove Description

No description available for this product

  • Four inputs: alarm, buzzer, LED strobe, and LED steady - negative triggering
  • Voltage: 9-15VDC
  • Selectable sound pressure levels
  • High: Siren 105dB/m; buzzer 90dB/m
  • Low: Siren 80dB/m; buzzer 75dB/m
  • Current: Siren 150mA (max); LED 30mA
  • Dimensions: 110(L) x 70(W) x 35mm(D)
