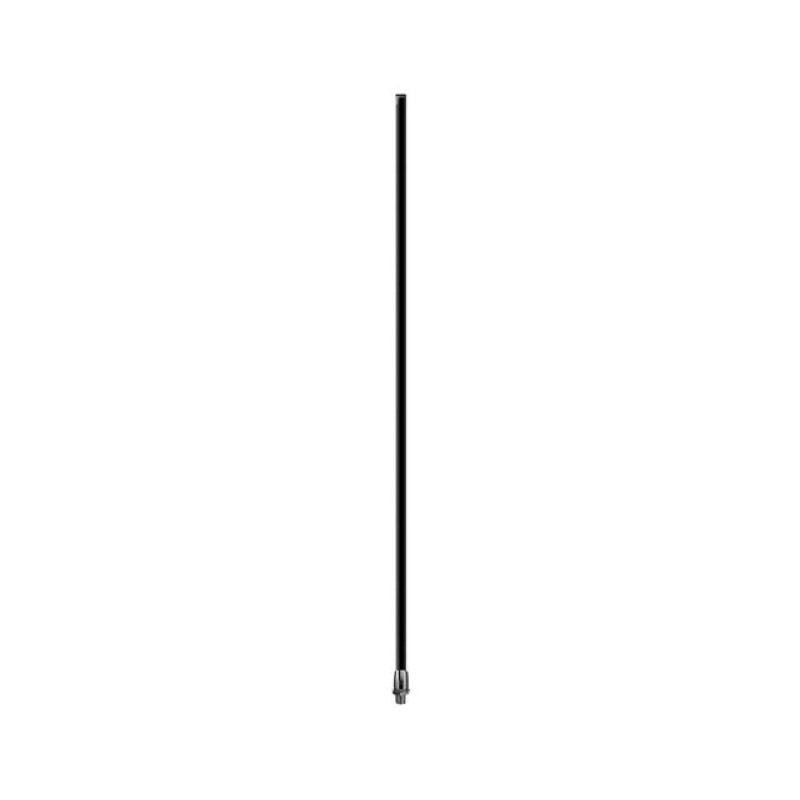

Benelec Cellular Antenna, 5G, 7.5dBi, 1240mm, Black

BEN-009
AVAILABLE TO ORDER
Benelec Cellular Antenna, 5G, 7.5dBi, 1240mm, Black

The BEN-009 (024579B) is multi-band 5G marine antenna intended for use in frequency bands 690 - 960 MHz, 1710 - 2700 MHz and 3500 - 3700 MHz. The 024579B antenna does away with the need for three separate antennas whilst maintaining high gain across the band 690 - 960 MHz. It comes with an N socket termination. The antenna is light weight, fitted to a stainless-steel stud, in a black radome.

Frequency

  • 690 - 960 MHz Tuned Bandwidth 270 MHz
  • 1710 - 2700 MHz Tuned Bandwidth 990 MHz
  • 3500 - 3700 MHz Tuned Bandwidth 200 MHz



Gain

  • 7.5 dBi  (690 - 960 MHz)
  • 3 dBi (1710 - 2700 MHz)
  • 3 dBi (3500 - 3700 MHz)



  • Impedance: 50 oHms
  • Operating VSWR: < 2:1
  • Radiation Pattern: Omni directional
  • E Plane 3dB beamwidth: 14 degree @ 690-960MHz
  • Length : 1040mm
  • Width: fiberglass, 16mm (0.6")
  • Weight : 0.80kg (1.8 lbs)
  • Termination: N docket
  • Construction: fiberglass radome, black

  • Multi-band performance
  • Easy to install
  • Fiberglass and thick-walled radome
  • Light weight
  • Plated heavy duty barrel stainless steel spring
  • Designed and manufactured in Australia
