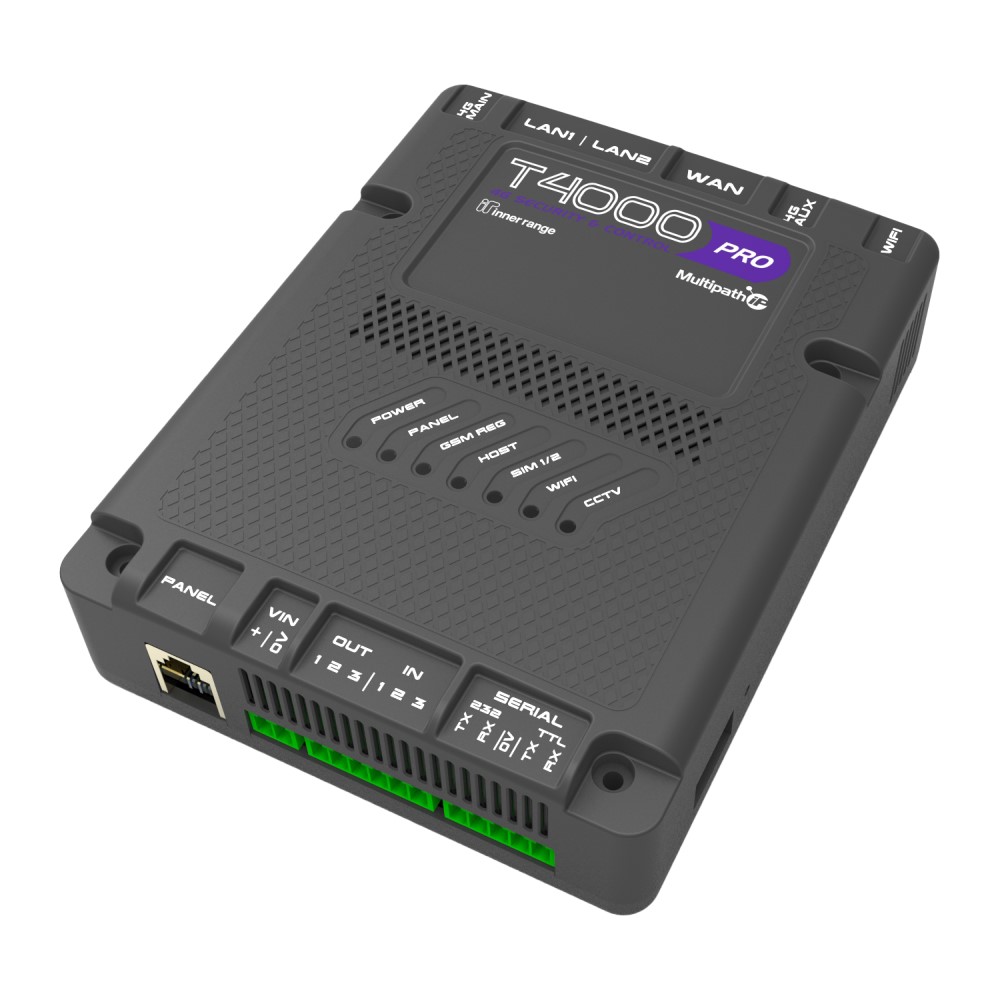

Multipath T4000 Pro High Speed 4G Router, Dual Sim (Tel/Opt) WiFi, 3x I/O, WAN, 2x LAN

The Inner Range IR-998600AU T4000 Pro is a fast and powerful security communicator. Designed with high data transfer rates in mind, the T4000 Pro is perfect for remotely accessing live CCTV video streams as well as programming security and access control systems. The T4000 Pro offers dialler and serial connections for traditional alarm communications but also boasts a fully programmable router with built in web programming UI. Setting up 4G failover connectivity for your mission critical devices is made easy with the T4000 Pro. Simply plug in any device that requires an internet connection, choose a 4G data subscription plan via the SkyCommand Portal and the T4000 Pro takes care of the rest. The T4000 Pro can be monitored professionally by one of the many Multipath IP partnering monitoring centres and allows internet connection for isolated CCTV and security networks. Alternatively, the T4000 Pro can operate in standalone mode, monitoring back to base with alarm events.

• Simple plug and play installation
• Dual-SIM 4G LTE cellular module with 3G fallback
• High speed router (4G LTE/Ethernet/Wi-Fi)
• Inbuilt Wi-Fi 802.11n supporting client mode or Access Point (AP) mode
• 3 x configurable Ethernet ports (2 x LAN + 1 x WAN)
• Acts as a 4G LTE backup service for wired internet connections such as the alarm panel and a CCTV system
• Can provide LTE internet for the alarm panel and a CCTV system where there is no on-site internet
• Built-in web user interface
• Compatible with most alarm systems via serial data link or dialler capture port
• 3 x configurable open-collector outputs for control of external devices
• 3 x configurable general-purpose inputs
• Remote control using the SkyCommand smart phone app
• Over-the-air firmware updatable

Datasheets

• IR-998600AU Datasheet.pdf
• T4000 Comparison Chart.pdf

• Enclosure type: ABS plastic
• Installation environment: 0 to 49 degrees at 15 to 90 percent relative humidity (non-condensing)
• LED status indicators: 7
• Alarm formats: Contact ID, IRFast and IRFast + text
• Power input: 12-24VDC, 150mA nominal
• Power current consumption at 12V DC: 200mA (Idle) + 10mA (GSM online)
• Minimum operating voltage: 8V DC
• Low volts sense voltage (typical): 11.0V
• Fuse: PTC protection + on-board fuse (non-replaceable)
• Zone input: 3 Software configurable (EOL or Non-EOL)
• Open Collector output (OUT) current: 3 x 100mA DC per output
• Dimensions: 130mm (L) x 102mm (W) x 33mm (D) (Not including connectors)
• Shipping weight: 700g
