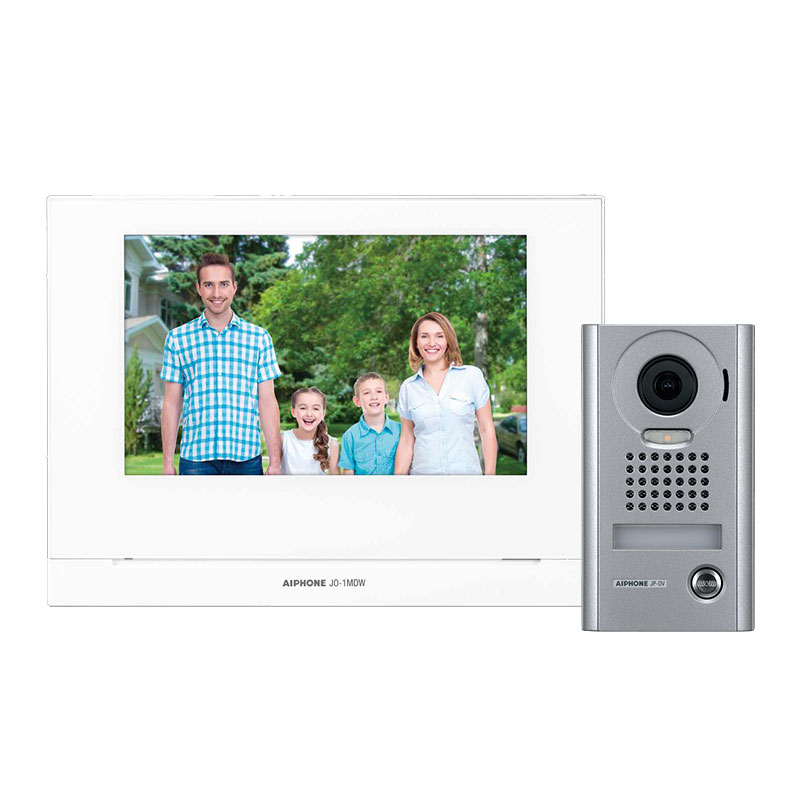

Aiphone's AI-JOS-1VW kit is a video intercom solution with a surface mount door station which includes everything you need for an app-capable video intercom system. With the added feature of smartphone connectivity that can be accessed anywhere, this kit provides enhanced security. It features a 7-inch touch screen for your convenience and suits a variety of home and office applications.

• Large 7" touchscreen provides crisp, clear detail of your caller
• Answer and open your door from the on-site master or your mobile device
• Connect up to 8 smartphones or tablets per system
• On-site monitor ensures calls get answered or recorded
• Store calls with no added fees using onboard memory
• Increase call storage by adding a MicroSD card to the on-site monitor
• Watch recorded calls from the on-site master or on the mobile app
• Die-cast zinc vandal resistant surface mount video door intercom faceplate
• Video door intercom automatically activates white LED lights to see clearly at night
• Standard doorbells can be replaced to add security when seeing and speaking with visitors

Datasheets

• AI-JO-Dx Datasheet.pdf

User Manuals

• AI-JO-1MDW User Manual.pdf

Inside Monitor

• Model: JO-1MDW
• Video display: 7" TFT LCD touchscreen
• Mounting: Surface wall mount or desk mount with MCW-S stand
• Internal call recording: 10 calls max. at 10 seconds per call
• Memory expansion: Micro SDHC card slot, 32GB max.
• Call recording with max memory: 1,000 calls max. at 10 seconds per call
• Door release: N/O dry contact, 24V AC/DC, 500mA
• Communication style: Handsfree or PTT app
• Model: Intercom app type B
• Max per system: 8 devices
• Door release: In-app slider activates contacts at JO-1MDW

Video Door Station

• Model: JO-DV
• Power source: Supplied by inside monitor
• Camera: 1/4" colour CMOS
• Mounting: Surface wall mount using a 1 gang electrical box
• Faceplate material: Zinc die cast
• Enclosure rating: IP54
• Impact rating: IK08
• Communication style: Handsfree
• Wiring to master: 2-cond, low cap, non-shielded
• Max. wire distance: 165" (22AWG) 330" (18AWG)

Power Supply

• Model: PS-1820UL
• Power source: AC 100 - 240V 50/60Hz
• Power output: DC 18V 2A
