Aiphone JV 7" 1-to-1 Intercom Kit, Surface Mount, IK08, IP54

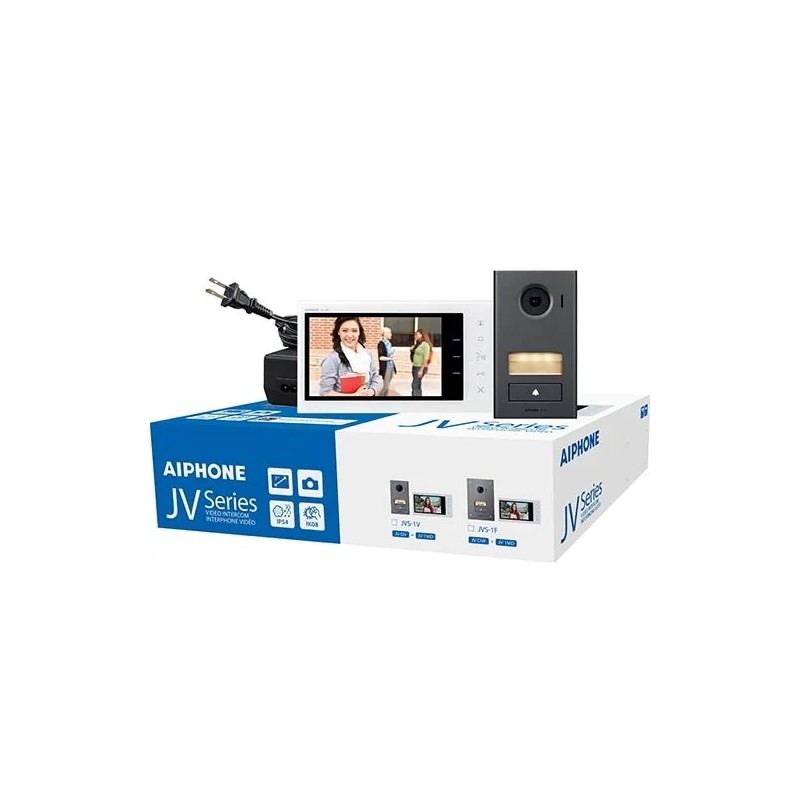

The AI-JVS-1VMO box set includes the JV-DV, JV-1MD and a PS-2420UL power supply.

It is a convenient system that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion master station, to create a 1x2 system.

JV-DV Door Station

• Fixed camera
• Weather and vandal resistant
• LED illumination automatically turns on in low light
• Backlit call button and nameplate

JV-1MD Video Master Station

• Video identification and monitoring
• Slim design
• Hands-free communication or push-to-talk

User Manuals

• AI-JVS-1xMO User Manual.pdf

JV-1MD Video Master Station

• Power supply: 24 V DC
• Power consumption:
• JV-1MD Standby 100 mA Max. 780 mA
• Communication: Auto-voice actuation / Press-to-talk Screen: 7 inch TFT LCD
• Ambient temperature: 0 - 40 C
• Material: Flame retardant resin
• Colour: White
• Dimensions: (HxWxD) 130 x 230 x 21
• Weight: JV-1MD Approx. 530 g (including mounting bracket)

JV-DV Door Station

• Minimum illumination: Approx. 5 lx
• temperature: -20 to 60 C
• Material JV-DV: Flame retardant resin
• Front panel: Die-cast aluminium
• Colour: JV-DV Gunmetal silver
• Dimensions: (HxWxD) JV-DV 170 x 97 x 23.7
• Weight: JV-DV Approx. 320 g
• IP54, IK08
