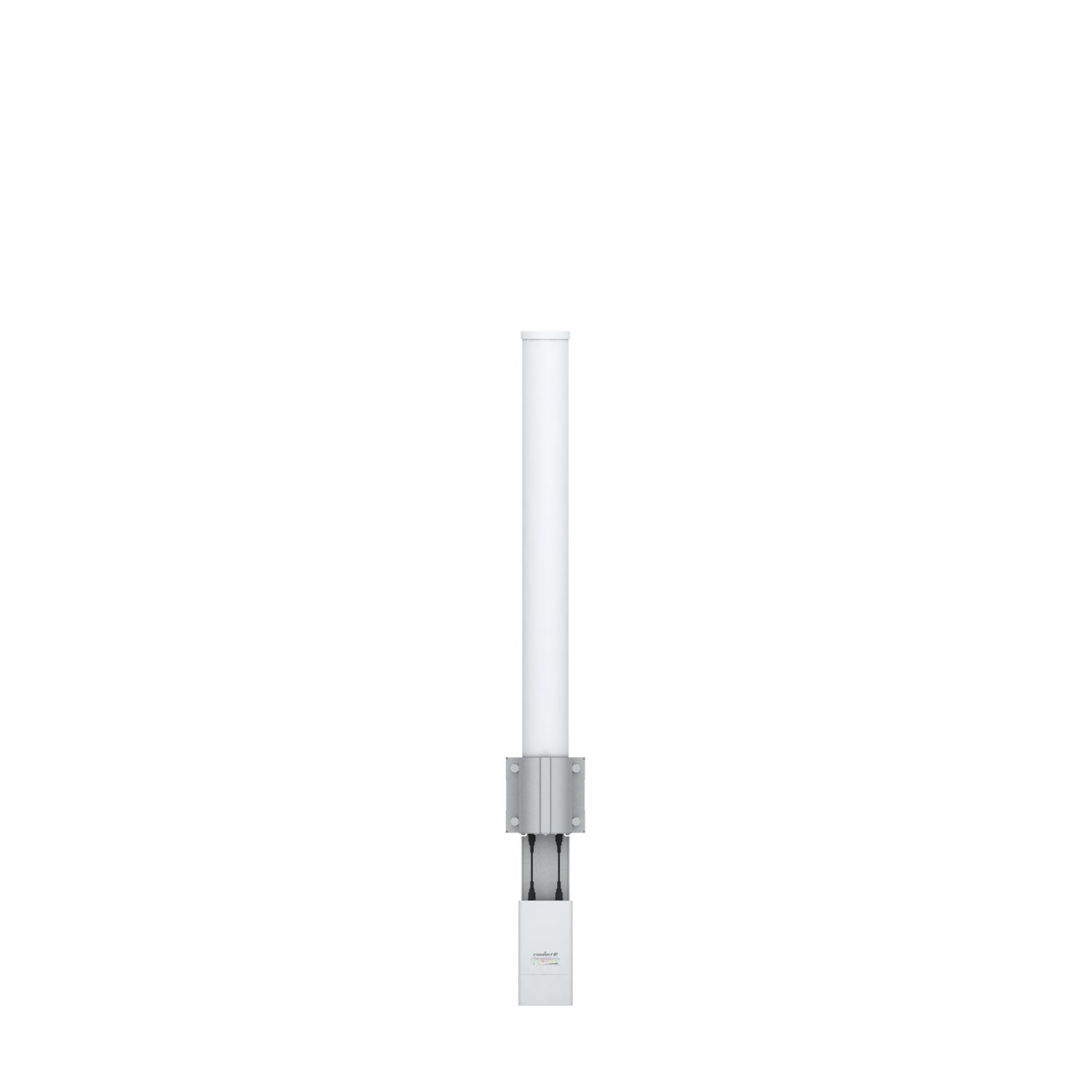

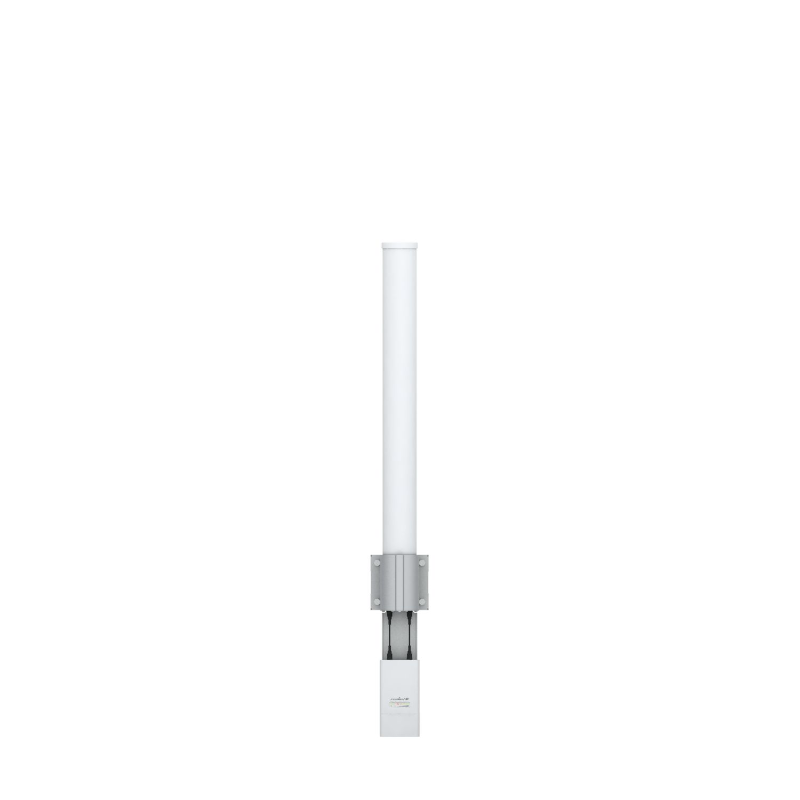

Ubiquiti 2.35 - 2.55 GHz AirMax, 10dBi 2x2 MIMO Omni-Directional Antenna
UB-AMO-2G10
AVAILABLE TO ORDER
Ubiquiti 2.35 - 2.55 GHz AirMax, 10dBi 2x2 MIMO Omni-Directional Antenna
The first of its kind, airMAX Omni antennas deliver carrier-class, 2X2 dual-polarity, omni-directional MIMO performance. They are designed for seamless integration with Ubiquiti airMAX Rocket hardware.
- Dimensions: 1030 x 122 x 84 mm
- Weight: 2.1 kg (Mount Included)
- Frequency: 2.35 - 2.55 GHz
- Gain: 10 dBi
- Elevation Beamwidth: 12deg
- Electrical Downtilt: 4deg
- Max. VSWR: 1.7:1
- Wind Survivability: 125 mph
- Wind Loading: 14 lbf @ 100 mph
- Polarization: Dual Linear
- Cross-Pol Isolation: 25 dB Min.
- ETSI Specification: EN 302 326 DN2
- Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers included
