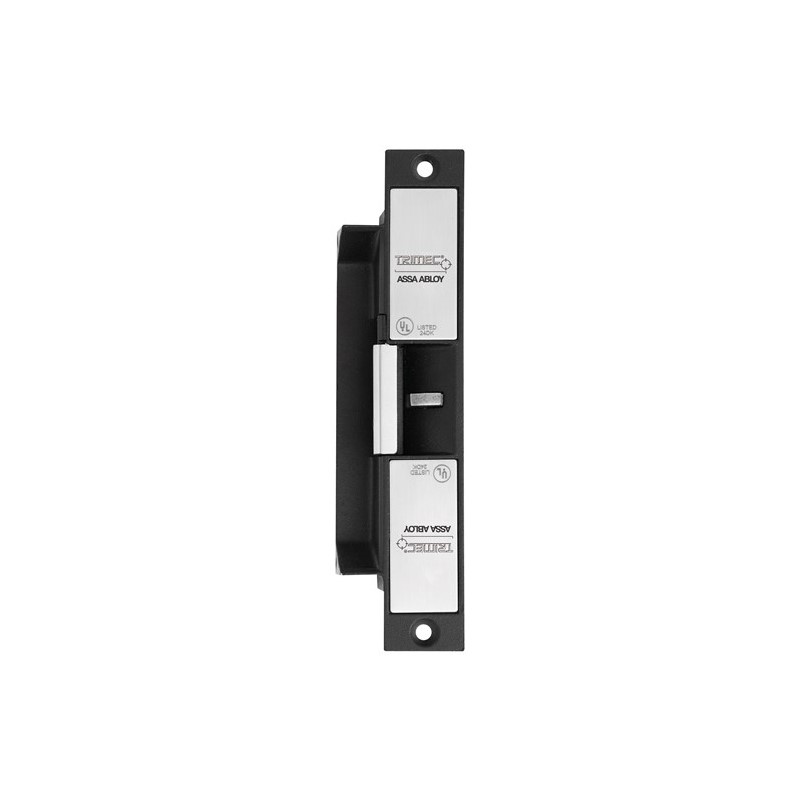

Trimec ES2000 Electric Strike, Monitored, 850kg, 12V DC, PTL/PTO (Default PTL)

The ASSA ABLOY Trimec TRI-112001-000 ES2000 series electric strike is a fully monitored high security product manufactured from cast stainless steel and designed for use with all access control systems. This strike is suitable for use with hinged doors which require either fire or security control as part of a building management system.

• High security
• Fail safe / Power To Lock
• Tongue sense monitored
• 4 Hour fire rating
• Cast stainless steel body
• Stainless steel locking pins
• Mounting kit supplied as standard
• Latch suitable for 15mm latch bolt with 3mm door gap
• Body solid stainless steel construction

Datasheets

• TRI-11200x-000 Datasheet.pdf

• Voltage: 12V DC
• Current draw: 175 mA at 12V DC
• Holding force: 850kg
• Endurance: 1,000,000 operations
• Operational temperature: -20 degrees to +60 degrees celsius
