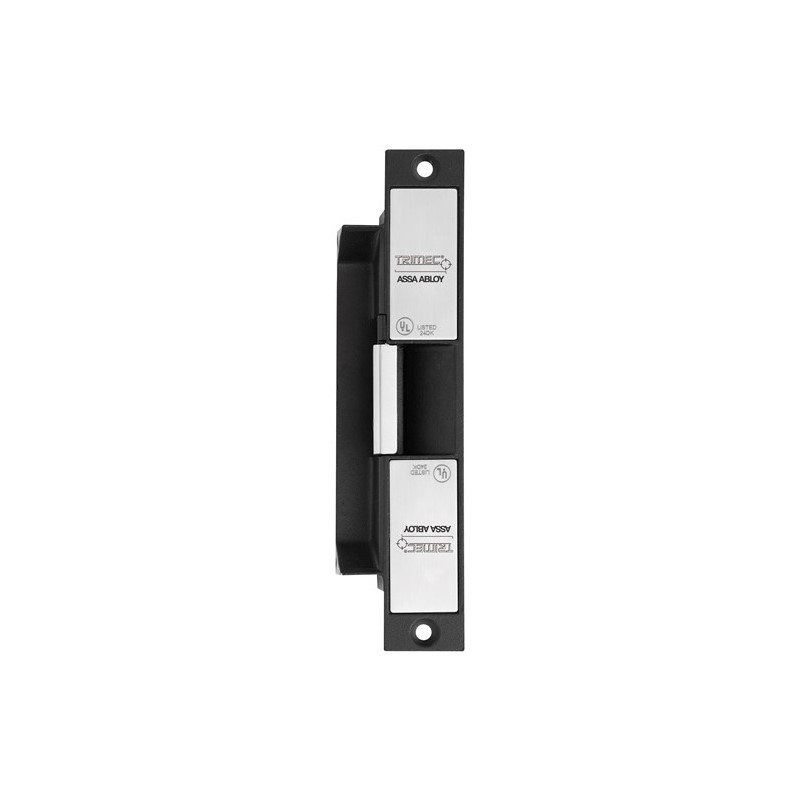

Trimec ES200 Electric Strike, 850kg, 12/24V, DC, PTL/PTO (Default PTO)

The ASSA ABLOY Trimec TRI-110202-000 ES200 series electric strike is a high security product manufactured from cast stainless steel and designed for use with all access control systems. The strike is suitable for use with hinged doors which require either fire or security control as part of a building management system.

• High security
• Fail secure / Power To Open
• 4 hour fire rating
• Cast stainless steel body
• Stainless steel locking pins
• Mounting kit supplied as standard
• Latch suitable for 15mm latch bolt with 3mm door gap
• Body solid stainless steel construction

Datasheets

• TRI-11020x-000 Datasheet.pdf

• Voltage: 12V DC or 24V DC
• Current draw: 175 mA at 12V DC, 88 mA at 24V DC
• Holding force: 850kg
• Endurance: 1,000,000 operations
• Operational temperature: -20 degrees to +60 degrees celsius
