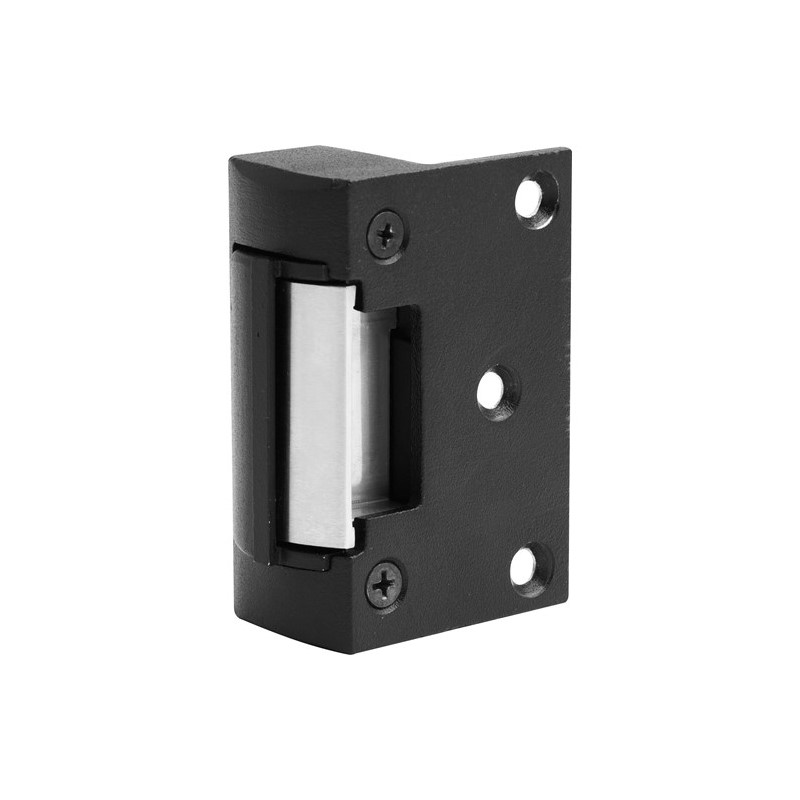

Trimec ES150 Electric Strike, Surface Mount, 680kg, 12/24V DC, PTL/PTO, IP56

The ASSA ABLOY Trimec TRI-110151-010M ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.

• Fail safe/fail secure changeable on site
• Easy installation suitable for steel and wooden door frames
• Stainless steel striker for extra strength and durability
• Stainless steel locking pins
• Solid stainless steel construction

Datasheets

• TRI-110151-010M Datasheet.pdf

• Voltage: 12V DC or 24V DC
• Current draw: 250mA at 12V DC, 125mA at 24V DC
• Holding force: 680kg
• Endurance: 1,000,000 operations
• Operational temperature: -20 degrees to +60 degrees celsius
• Weather rating: IP56
