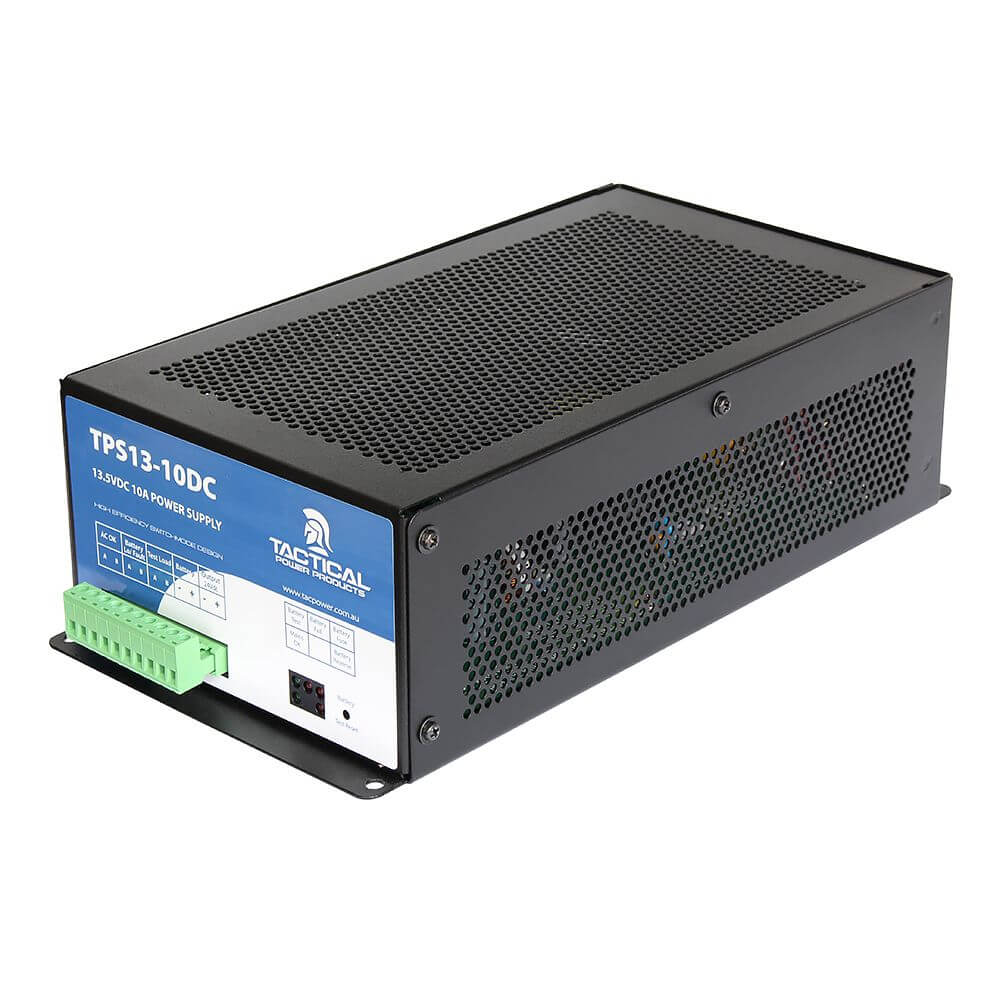

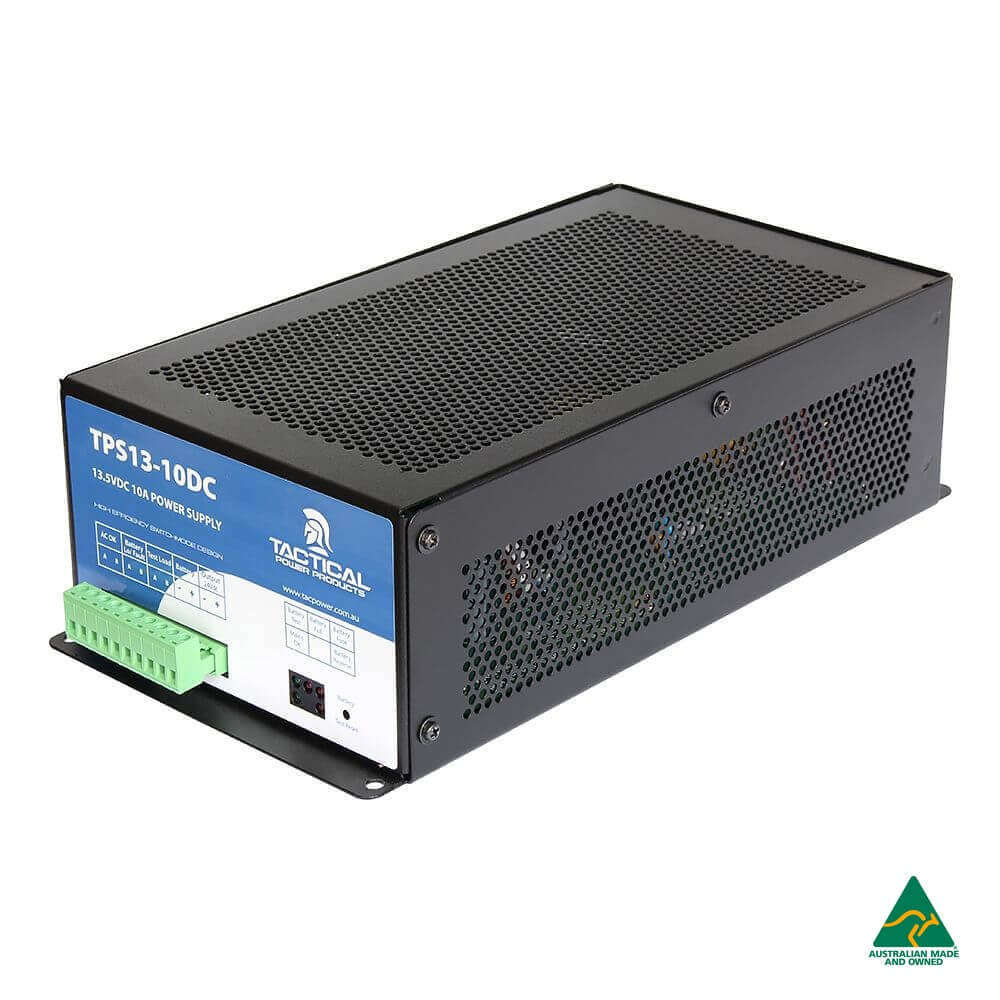

Tactical Power Supply, 13.5VDC, 10A, 13.8V Charger, AC Fail & Low Battery Outputs

The Tactical TP-TPS13-10DC power supply is a fully regulated switch mode power supply providing 13.5Vdc at 10A. Due to its switch mode design, the TP-TPS13-10DC generates significantly less heat than equivalent supplies of linear design. Additionally, the TP-TPS13-10DC features very low noise at full load with overload, short circuit and over voltage shutdown protection and is configured with a high output 1.4A battery charger.

The Tactical TP-TPS13-10DC power supply also includes a removable 10 way connector which provides outputs for DC load, battery charger, mains fail relay and low voltage / battery fail relay output.

• Genuine 10A continuous output
• Dual channel - 13.5Vdc output (10A) / 13.8Vdc battery charger (1.4A)
• Total output current of 11.4A (10A + 1.4A)
• AC fail and low battery outputs
• Over voltage protection
• Short circuit protection

• Input Voltage: 240Vac / 50Hz
• Operating Temperature: 0-50degC
• Dimensions: 275L x 145W x 83H mm
• Weight: 2kg
