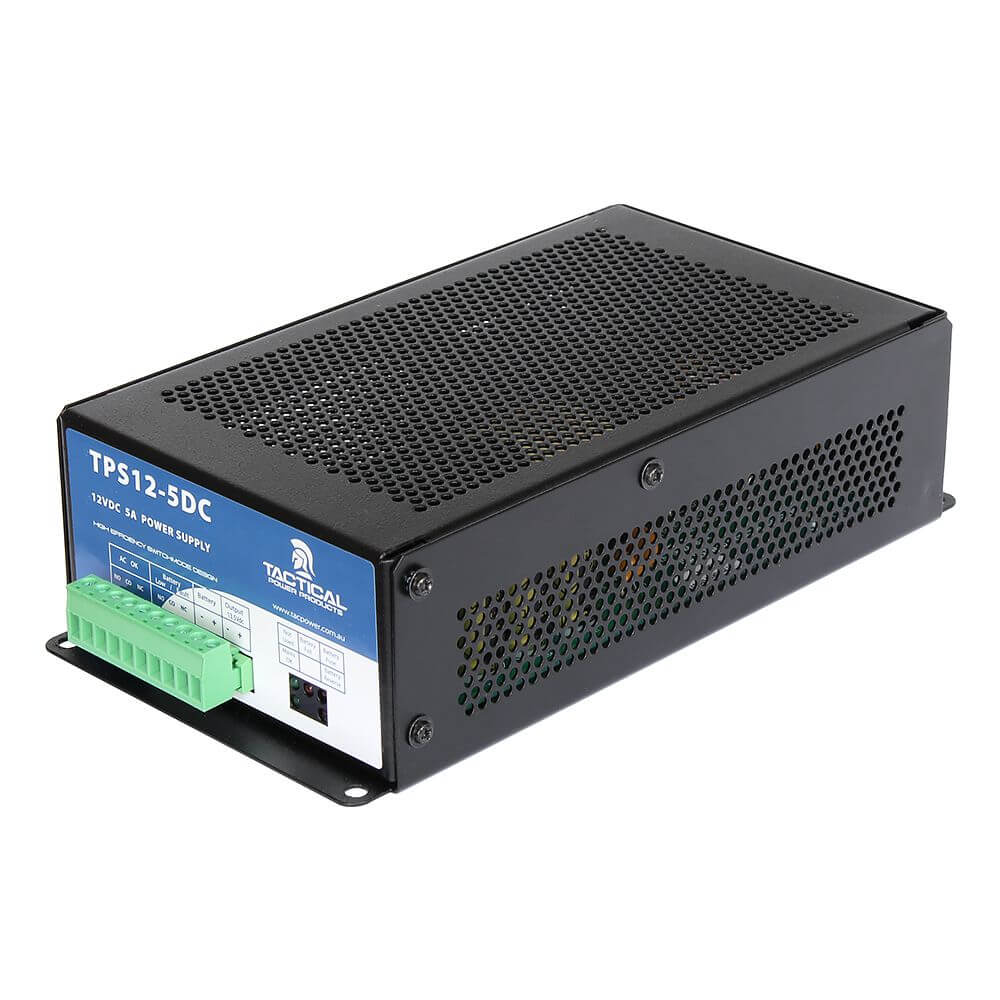

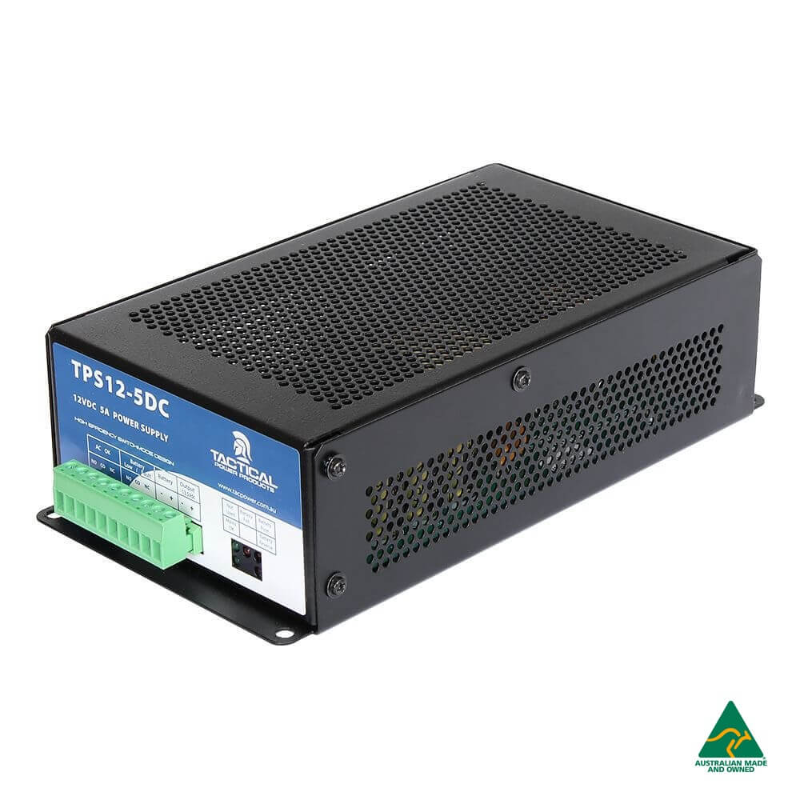

Tactical Power Supply, ECO, 12VDC, 5.0A, 13.8V Charger, AC Fail & Low Battery Outputs

TP-TPS12-5DC
AVAILABLE TO ORDER
Tactical Power Supply, ECO, 12VDC, 5.0A, 13.8V Charger, AC Fail & Low Battery Outputs

The Tactical TP-TPS12-5DC power supply provides a switch mode regulated 12.4Vdc at up to 5A via its primary output channel (to power loads such as voltage sensitive CCTV cameras). It includes a separate 13.8Vdc, 1.4A channel to keep your standby battery charged - making the TP-TPS12-5DC a 6.4A power supply.

In the event of a 240V mains failure, the TP-TPS12-5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.

  • Genuine 5A continuous output
  • Dual channel - 12Vdc output (5A) / 13.8Vdc battery charger (1.4A)
  • Total output current of 6.4A (5A + 1.4A)
  • AC fail and low battery relay outputs
  • Short circuit protection

  • Input Voltage: 240Vac / 50Hz
  • Operating Temperature: 0-50degC
  • Dimensions: 225L x 120W x 60H mm
  • Weight: 1.2kg

No description available for this product
  • Input Voltage: 240Vac / 50Hz
  • Operating Temperature: 0-50degC
  • Dimensions: 225L x 120W x 60H mm
  • Weight: 1.2kg
