Tactical Power Supply, ECO, 12VDC, 5.0A, 13.8V Charger, AC Fail & Low Battery Outputs
TP-TPS12-5DC
AVAILABLE TO ORDER
Tactical Power Supply, ECO, 12VDC, 5.0A, 13.8V Charger, AC Fail & Low Battery Outputs
| Warehouse | Status |
|---|---|
| Seven Hills - NSW |
IN STOCK
|
| Waterloo - NSW |
IN STOCK
|
| Fyshwick - ACT |
IN STOCK
|
| Loganholme - QLD |
AVAILABLE TO ORDER
|
| Dudley Park - SA |
AVAILABLE TO ORDER
|
| Tulla Central Warehouse- VIC |
IN STOCK
|
| Mulgrave - VIC |
IN STOCK
|
| Balcatta - WA |
AVAILABLE TO ORDER
|
| Canning Vale - WA |
IN STOCK
|

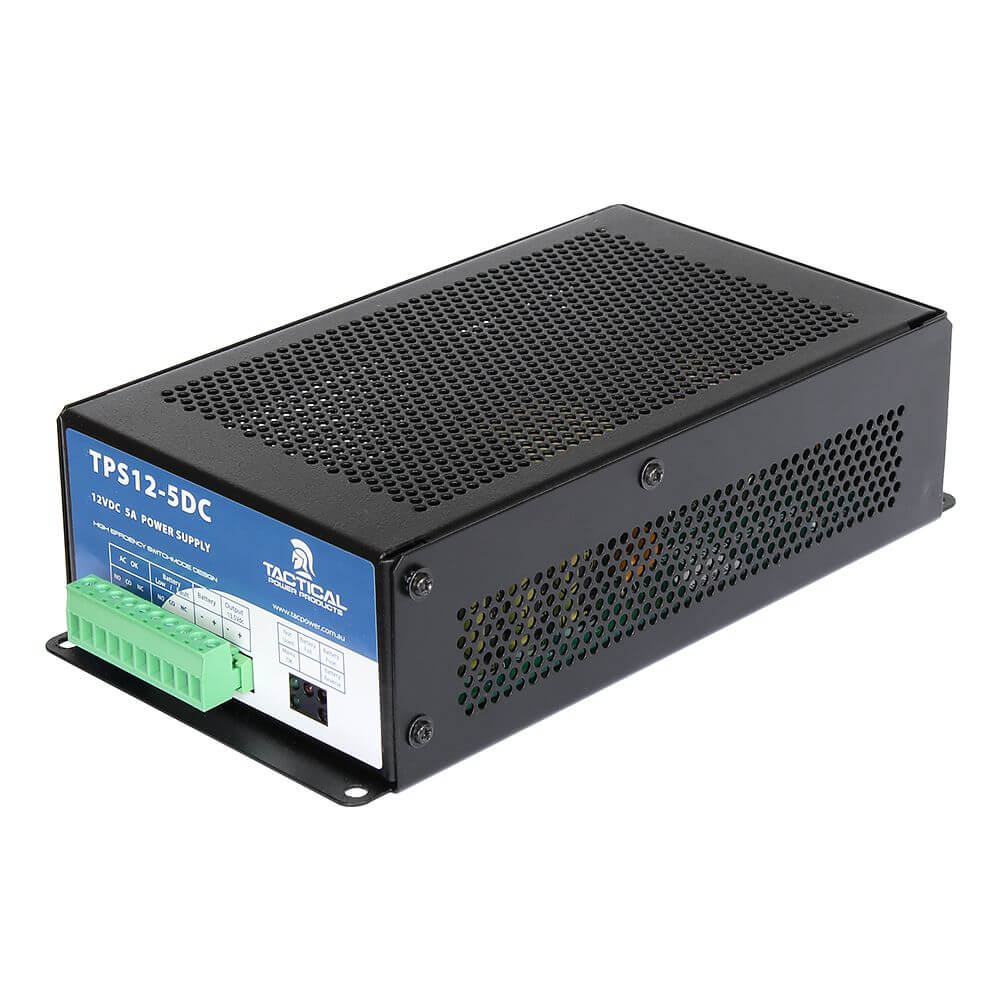

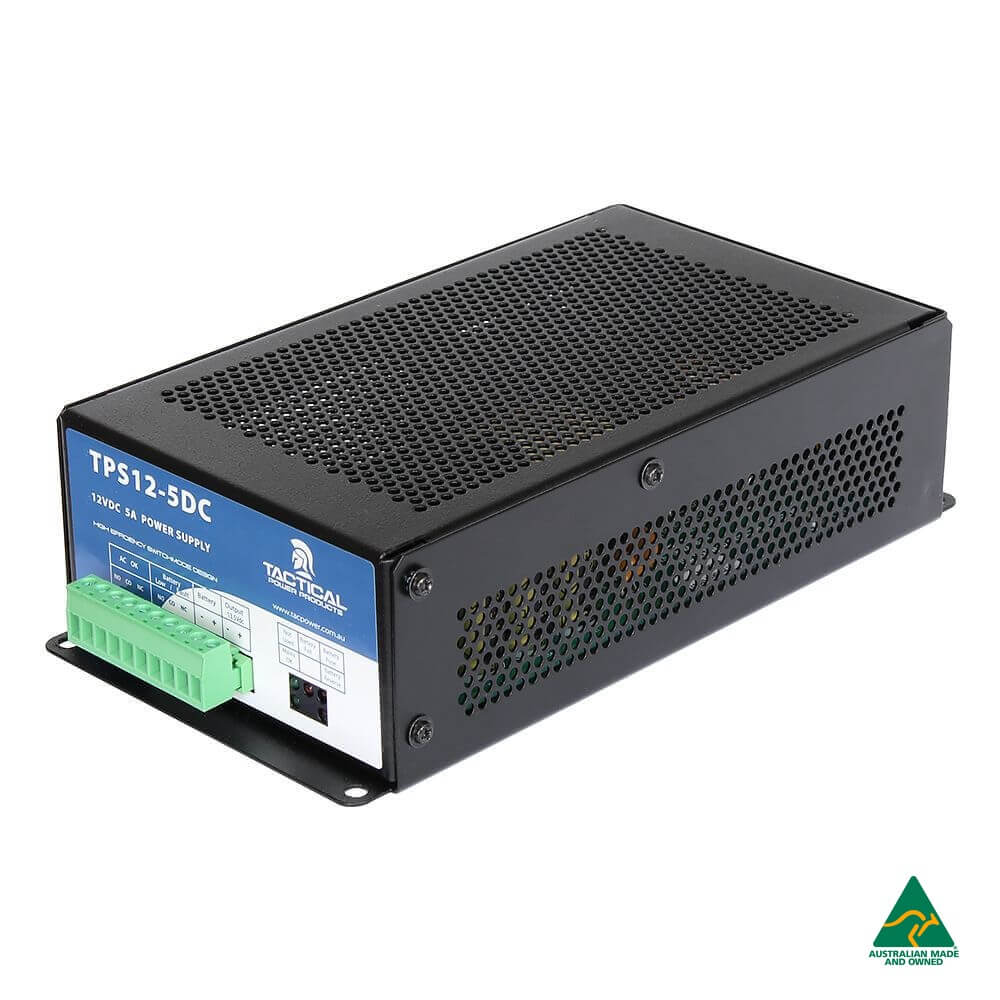

The Tactical TP-TPS12-5DC power supply provides a switch mode regulated 12.4Vdc at up to 5A via its primary output channel (to power loads such as voltage sensitive CCTV cameras). It includes a separate 13.8Vdc, 1.4A channel to keep your standby battery charged - making the TP-TPS12-5DC a 6.4A power supply.
In the event of a 240V mains failure, the TP-TPS12-5DC automatically re-regulates the 13.8V standby battery voltage to 12.4Vdc ensuring that sensitive equipment is not subjected to higher, potentially damaging voltages.
- Input Voltage: 240Vac / 50Hz
- Operating Temperature: 0-50degC
- Dimensions: 225L x 120W x 60H mm
- Weight: 1.2kg
- Genuine 5A continuous output
- Dual channel - 12Vdc output (5A) / 13.8Vdc battery charger (1.4A)
- Total output current of 6.4A (5A + 1.4A)
- AC fail and low battery relay outputs
- Short circuit protection
