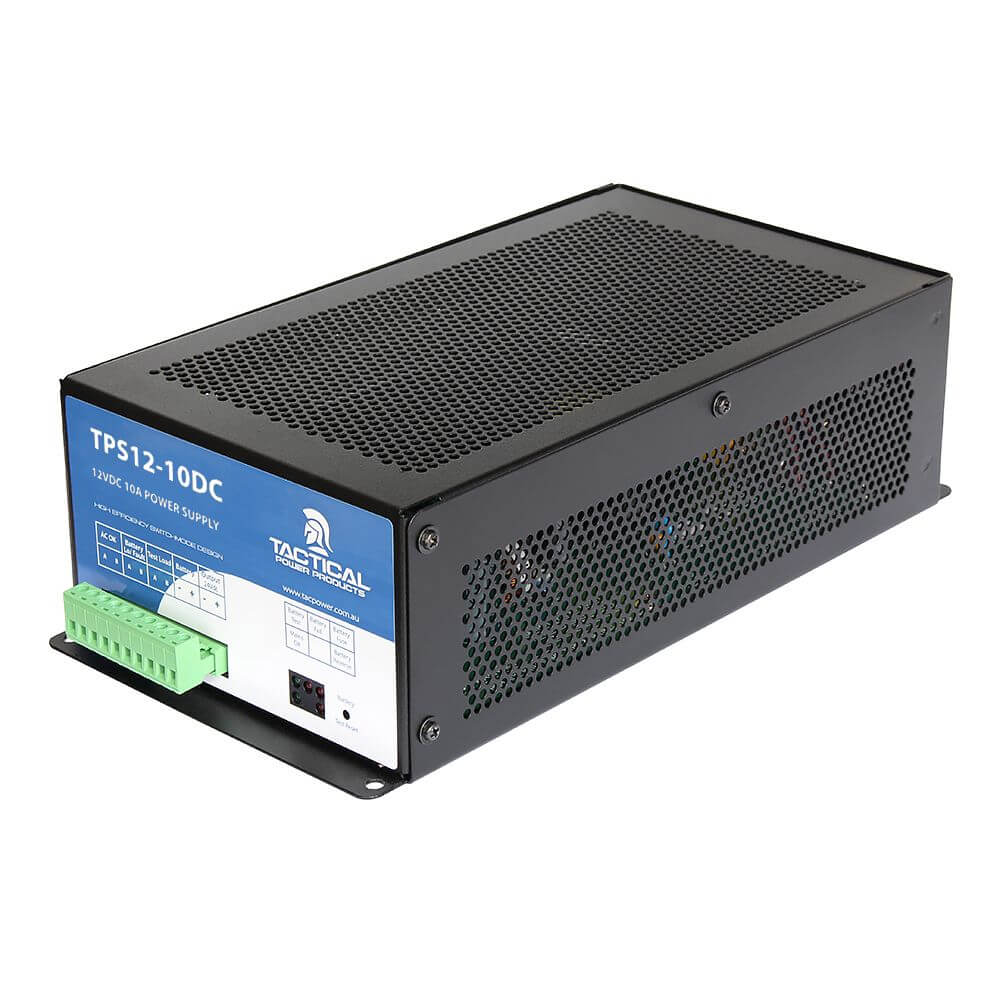

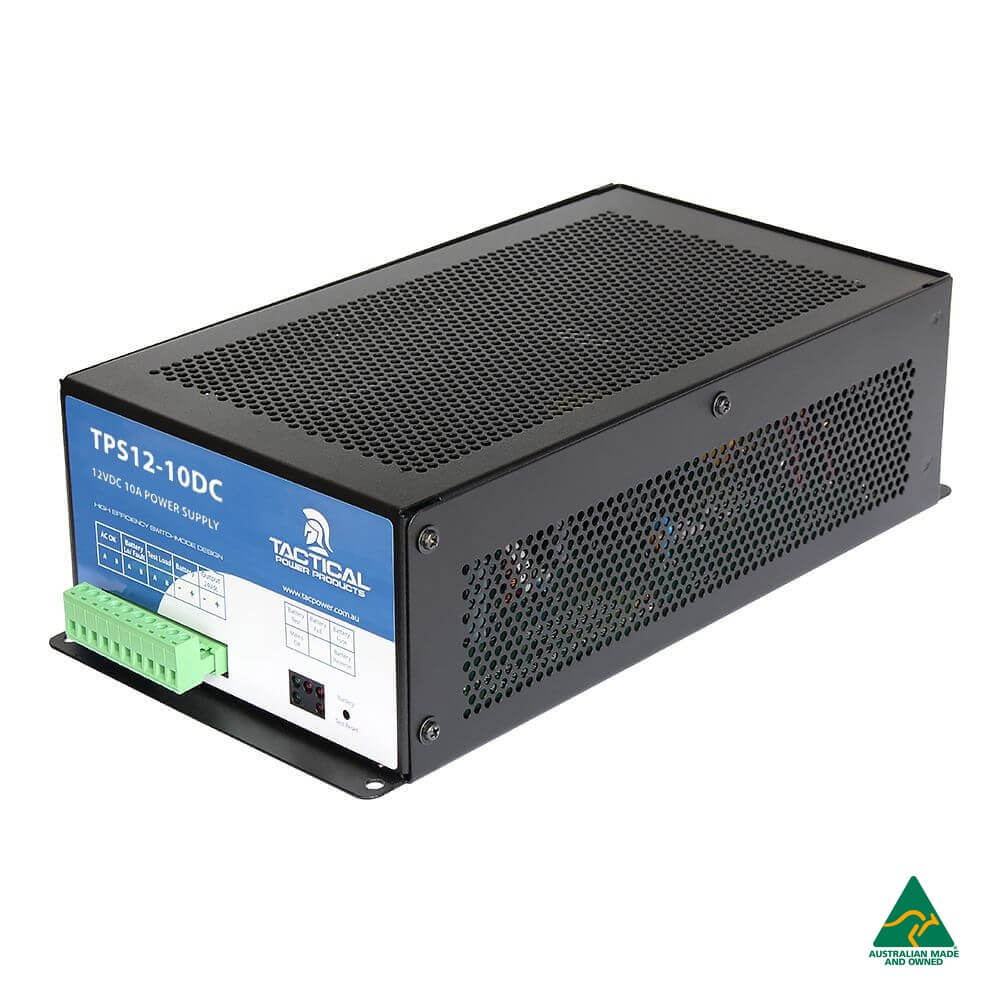

Tactical Power Supply, 12VDC, 10A, 13.8V Charger, AC Fail & Low Battery Outputs

The Tactical TP-TPS12-10DC power supply is a fully regulated switch mode power supply providing 12Vdc at 10A. Due to its switch mode design, this power supply generates significantly less heat than equivalent supplies of linear design. Additionally, the TP-TPS12-10DC features very low noise at full load with overload, short circuit and over voltage shutdown protection and is configured with a high output 1.4A battery charger.

In the event of a mains power failure, standby battery voltage is re-regulated to 12Vdc, ensuring that voltage sensitive loads (such as some CCTV cameras) are not subject to higher than expected voltage. A removable 10 way connector provides outputs for DC load, battery charger, mains fail relay and low voltage / battery fail relay output.

• Genuine 10A continuous output
• Dual channel - 12Vdc output (10A) / 13.8Vdc battery charger (1.4A)
• Total output current of 11.4A (10A + 1.4A)
• AC fail and low battery outputs
• Over voltage protection
• Short circuit protection

• Input Voltage: 240Vac / 50Hz
• Operating Temperature: 0-50degC
• Dimensions: 275L x 145W x 83H mm
• Weight: 2kg
