Tactical Power Converter, AC-DC or DC-DC, 9-48VDC or 9-30VAC to 5VDC at 1.5A

Overview
Features
Specifications
Downloads

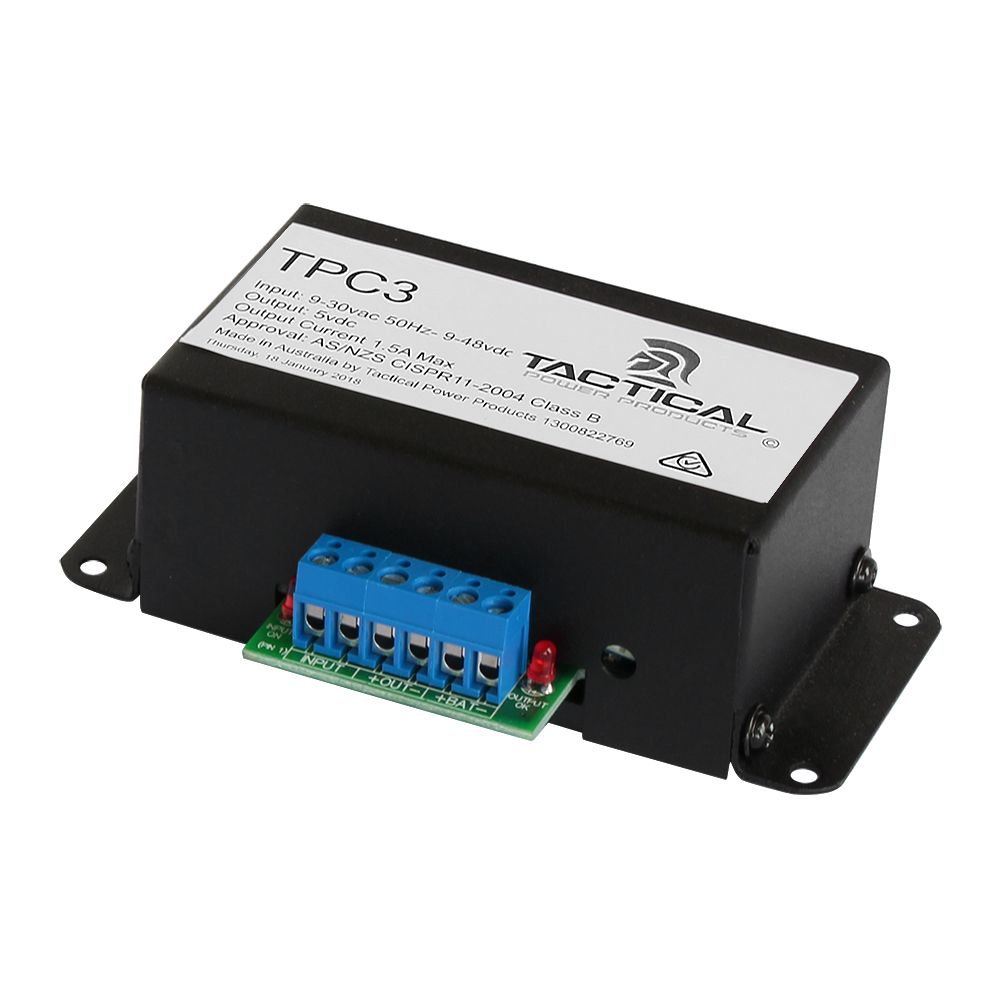

The Tactical TP-TPC3 is an AC-DC or DC-DC buck power converter designed to convert either 9-30VAC or 9-48VDC to an output voltage of 5VDC rated at 1.5 Amps.

Over current protection
Short circuit protection
Over temperature protection
Compact size & light weight

Input Voltage: 9 to 30Vac or 9Vdc to 48Vdc
Output Voltage: 5Vdc nominal
Output Current: 1.5A maximum
Dimensions: 114W x 63L x 40H
