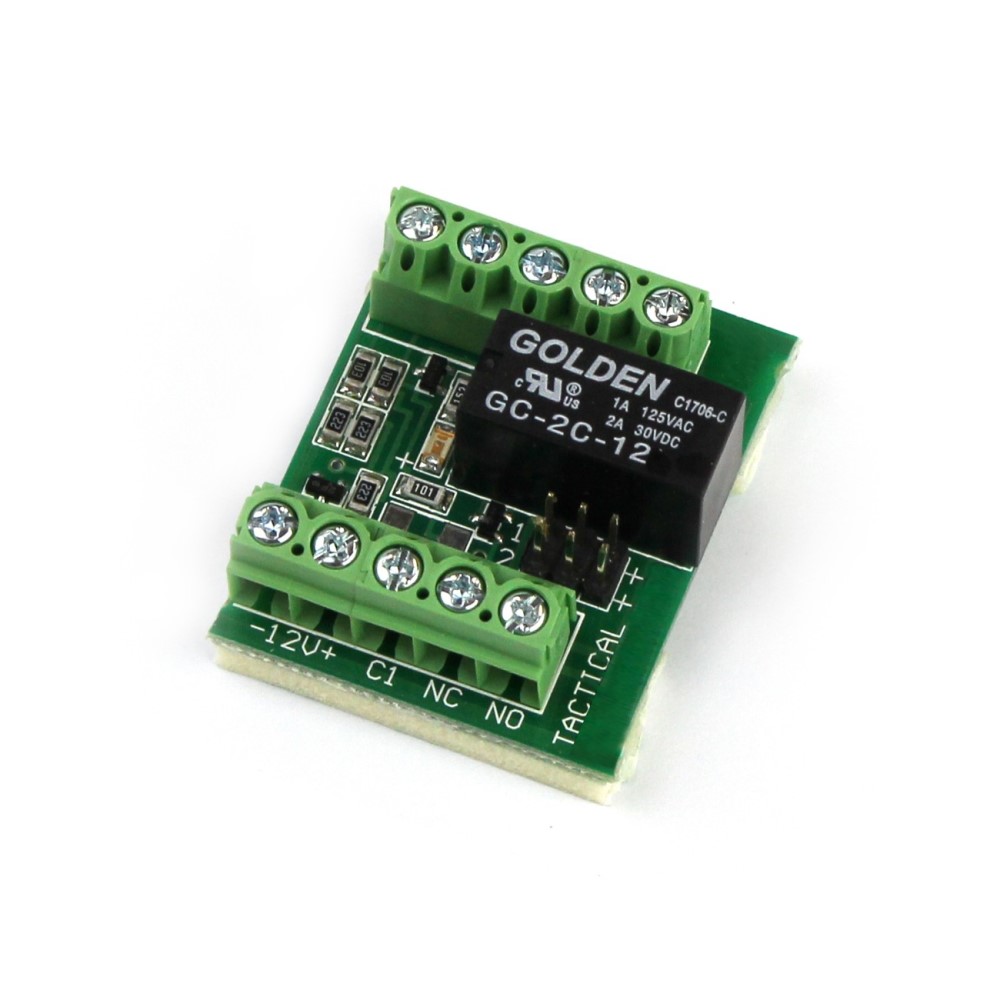

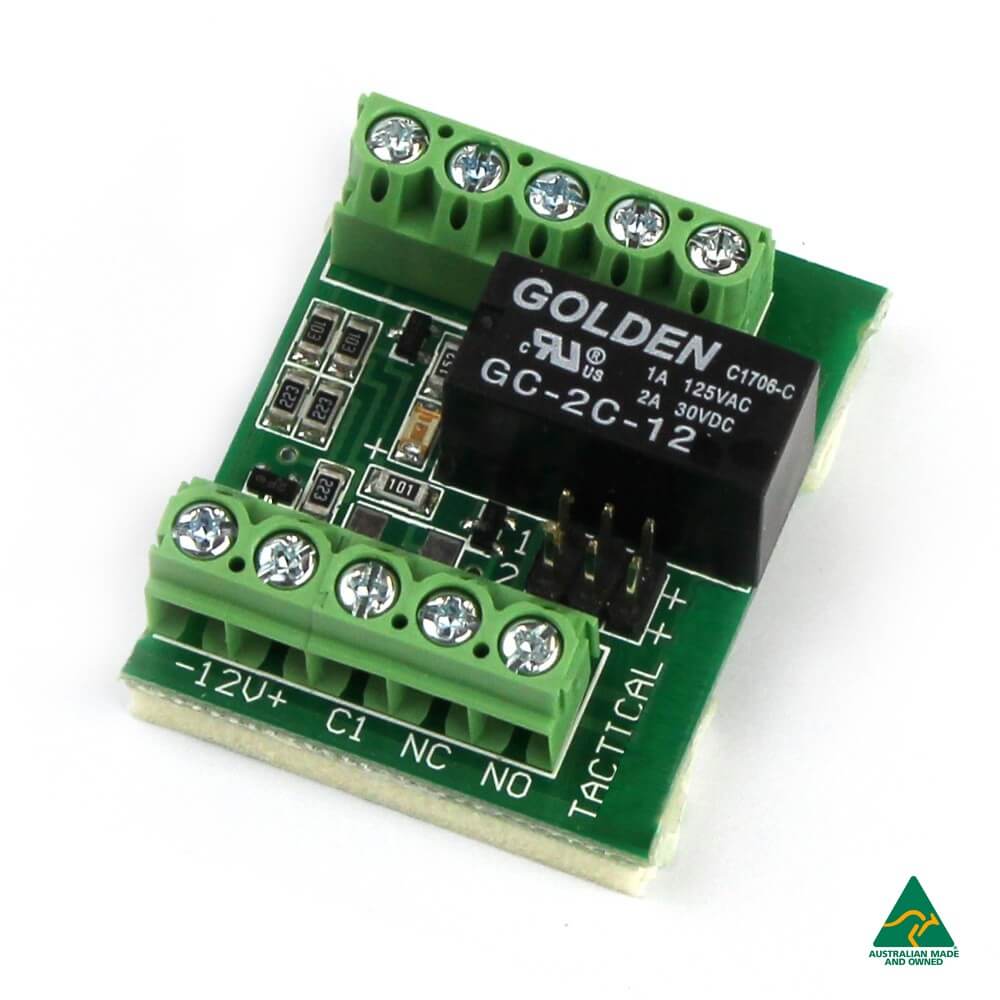

Tactical Relay Board, 12VDC or 24VDC, DPDT, Dual Input, Buffered, 1A Contacts

TP-RLB1-DPDT-V2
AVAILABLE TO ORDER
Tactical Relay Board, 12VDC or 24VDC, DPDT, Dual Input, Buffered, 1A Contacts

The Tactical Power TP-RLB1-DPDT-V2 is a 12VDC/24VDC buffered relay with a double pole double throw output (DPDT) and is ideal for any 12V/24V equipment with limited sink current capability. The relay can be configured to trigger with either a negative or positive voltage and by default both poles of the relay are voltage dry contacts. A positive or negative voltage can be applied to the common of either pole by changing the onboard jumper.

For more information visit TacPower.com

  • Input Voltage: 12Vdc - 24Vdc selectable
  • Current Draw: 22mA approx.
  • Configuration: DPDT
  • Contact Rating: 1A at 30Vdc
  • Dimensions: 30W x 40L x 20H mm
  • Current Draw: 47mA
  • Configuration: DPDT
  • Contact Rating: 1A @ 30Vdc
  • Neg Trigger Voltage: 0V
  • Pos Trigger Voltage: 5Vdc - 28Vdc
  • Dimensions: 30mm x 40mm x 20mm
