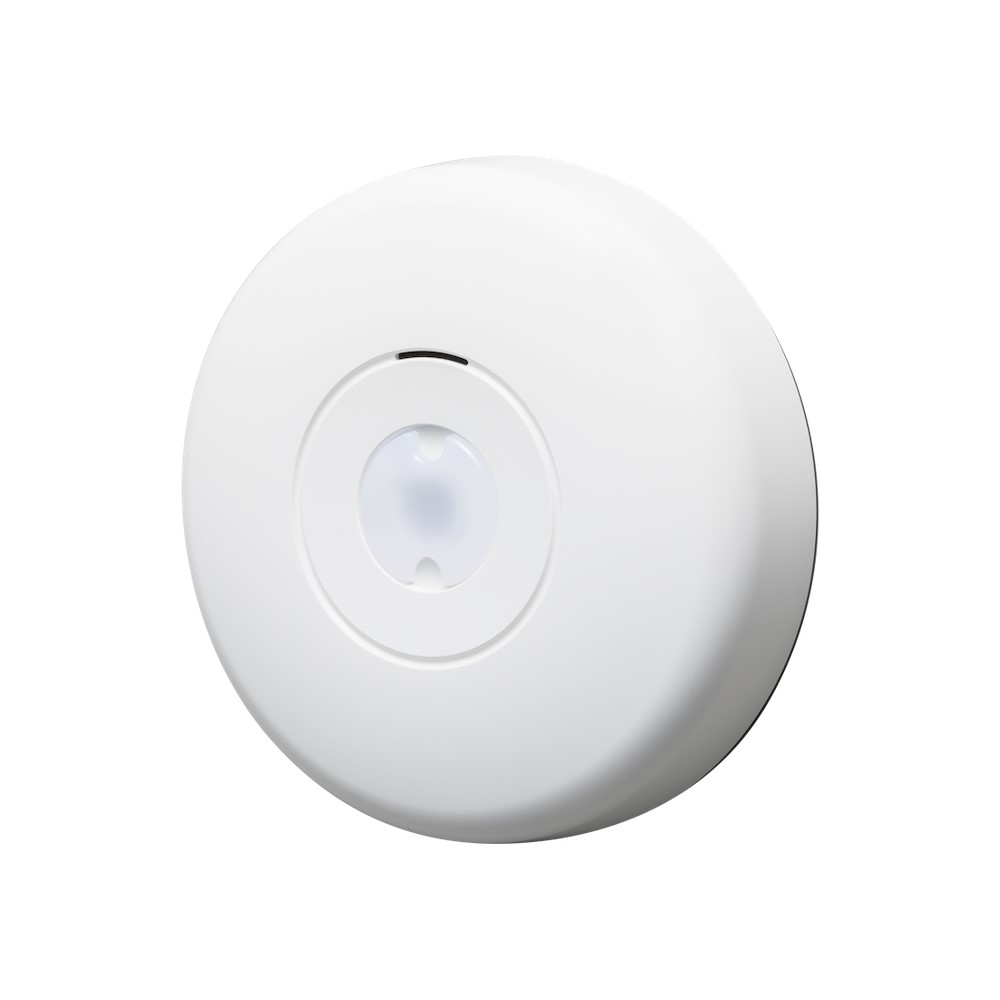

Takex 4 Wire Vape Sensor

TAK-VS-1000E
AVAILABLE TO ORDER
Takex 4 Wire Vape Sensor

The VS-1000E leverages a high-sensitivity particle detection system coupled with advanced algorithms to adapt to changing environmental conditions, ensuring rapid and reliable identification of vaping and smoking activities.

Unlike many vape sensors, the VS-1000E operates independently without the need for app-based management, offering seamless, licence-free operation.

  • Alarm output: solid state relay (N.C./N.O. selectable)
  • Operation: one shot (approx. 2sec.)/detecting time
  • Capacity: 30V (AC/DC) 0.2A (resistive load) contact
  • Tamper output: dry contact relay (N.C.)
  • Operation: activated when cover is detached (continuous output)
  • Capacity: 30V (AC/DC) 0.1A (resistive load)
  • Alarm LED (red): warm-up - blinking
  • Detection: lights on (LED ON/OFF selectable)
  • Error: fast blinking sound
  • Buzzer: sound at detecting (disable/10sec./30sec./continuous)
  • Ambient temperature: 0C to +50C without condensation/frozen
  • Mounting position: indoor (ceiling/wall)
  • Weight: 210g
  • Appearance: resin (body: white, base: black)

  • Detects vaping and smoking in restrooms and similar areas
  • Adjustable detection sensitivity (standard/low)
  • Selectable alarm contact output (N.C./N.O.)
  • Enable/disable LED indicator
  • Dedicated terminal for interconnecting multiple units
  • Quick-to-install screwless terminals
  • Tamper-resistant cover locking mechanism
  • Suitable for ceiling or wall mounting
