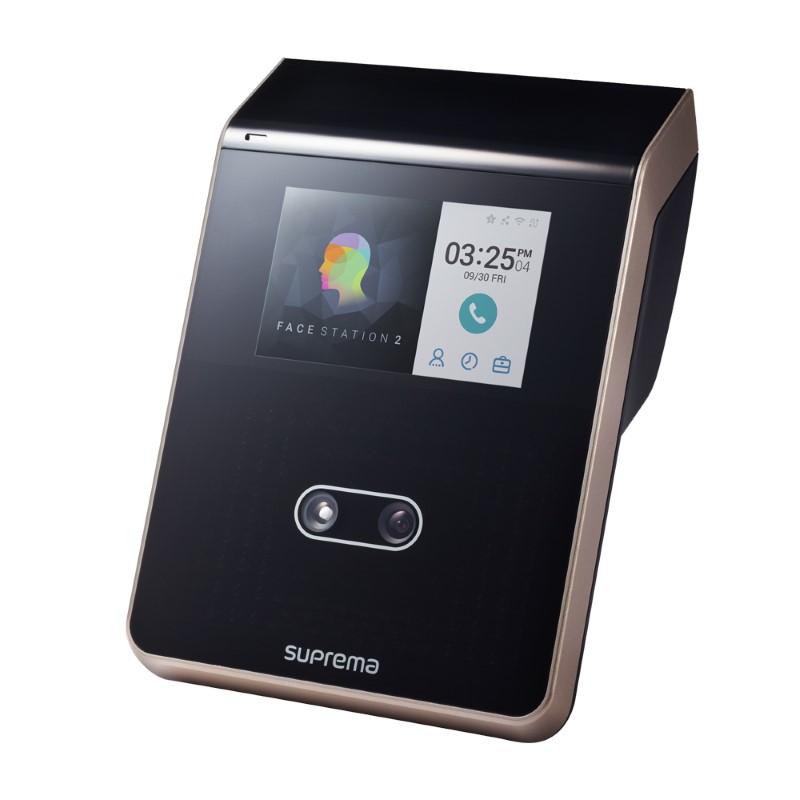

Suprema FaceStation 2 Facial Recognition Terminal, 4K Faces WiFi, 4" LCD, PROX, iClass

Suprema’s range of biometric and facial recognition readers are exceptional products that can be added as a peripheral device to an access control system.

Options for standalone or integration make this range suitable for any site, large or small, where minimising human contact is priority number one.

Features that can include vandal resistance, weather resistance or iClass technology support make Suprema's offerings second to none that adds another layer of security for piece of mind.

• Stores up to 30,000 faces (template on card)
• Stores up to 4,000 faces (template in database)
• Stores up to 5,000,000 event logs
• 1/4,000 second matching speed
• 25,000 lux operating illuminance
• LCD display
• Ethernet port
• WiFi
• Wiegand output
• 2x inputs
• 1x relay output

Datasheets

• SUP-FS2-x Datasheet.pdf

User Manuals

• SUP-FS2-x User Manual.pdf

• CPU: 1.4 GHz
• Memory: 8GB flash and 1GB RAM
• Operating temperature: -20 to 50 degrees celsius
• Display size: 4 inch LCD
• Display resolution: 720 x 480
• Sound: 24-bit
• WiFi: built-in, IEEE 802.11 b/g
• Power: 24V DC
• Weight: 548g
• Dimensions: 141mm (W) x 164mm (H) x 125mm (D)

Supported Technologies

13.56MHz High Frequencies

• iClass
• iClass SE
• SEOS
• Mifare Classic
• Mifare DESFire EV1/EV2
• CSN/UID
• FeliCa

125KHz Low Frequencies

• HID PROX
• EM
