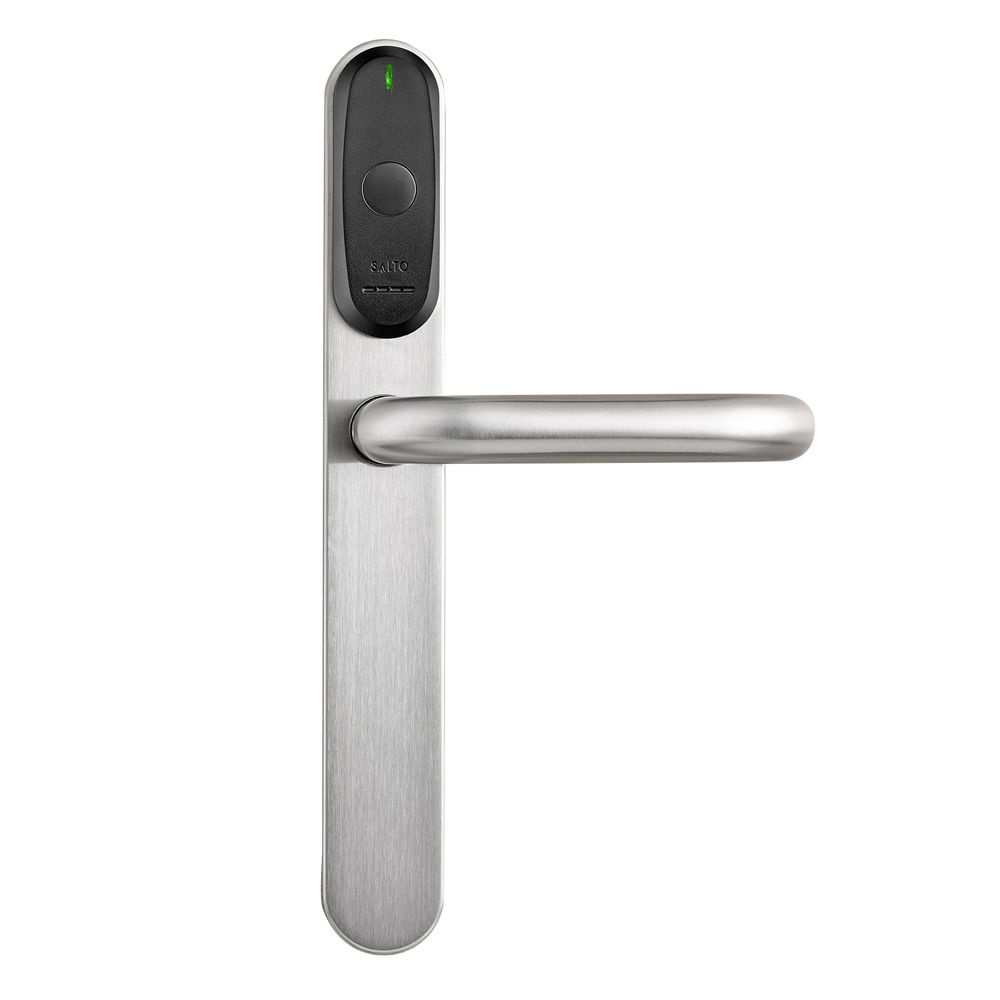

Salto Sallis Euro Escutcheon, iClass, Slim Body, Slim U-Lever, Satin

Salto Sallis Euro Escutcheon, iClass, Slim Body, Slim U-Lever, Satin



Code: SS-EH450
Brand: Salto Systems
Product Details
Salto Sallis Euro Escutcheon, iClass, Slim Body, Slim U-Lever, Satin


The narrow body version is specially designed to fit most Euro profile doors, even narrow profile framed doors and work with the majority of European mortise locks and cylinders.

SS-EH450 (E9450U00IMA6-S) is the iClass Version. Other ID technologies available include: i-Button, DESfire, DESfire EV1, Mifare, Mifare plus, Mifare Ultralight C, Inside Picopass, Legic, HID iClass, SKIDATA

  • Clutch mechanism escutcheon when unlocked handle moves free
  • Available in wireless Sallis version for wireless real-time control
  • Door status detector to monitor intrusions or door left open status (wireless escutcheons only)
  • Body and escutcheon made of steel
  • Compatible with DIN mortise locks, European mortise locks and narrow style mortise lock
  • Compatible with European profile cylinders and Swiss profile cylinders
  • Square spindles available: 7mm, 7.6mm split, 8mm, 8mm split, 9mm and 9mm split
  • Mechanical override with audit trail facility available
  • Electronic privacy function through thumb turn or button on the inside
  • AMOK version available for off-line lockdowns
  • IP55 compliant (external escutcheon)
  • EN1634-2 EI 120 Fire Resistant
  • UL 10C Compliant (90min wooden doors)
  • Dimensions: 282mm x 40mm x 20mm
  • Handle rotation: 33 degrees
  • Door thickness compatibility: 30mm to 115mm
  • Distance from the handle to the cylinder: 47mm to 110mm
