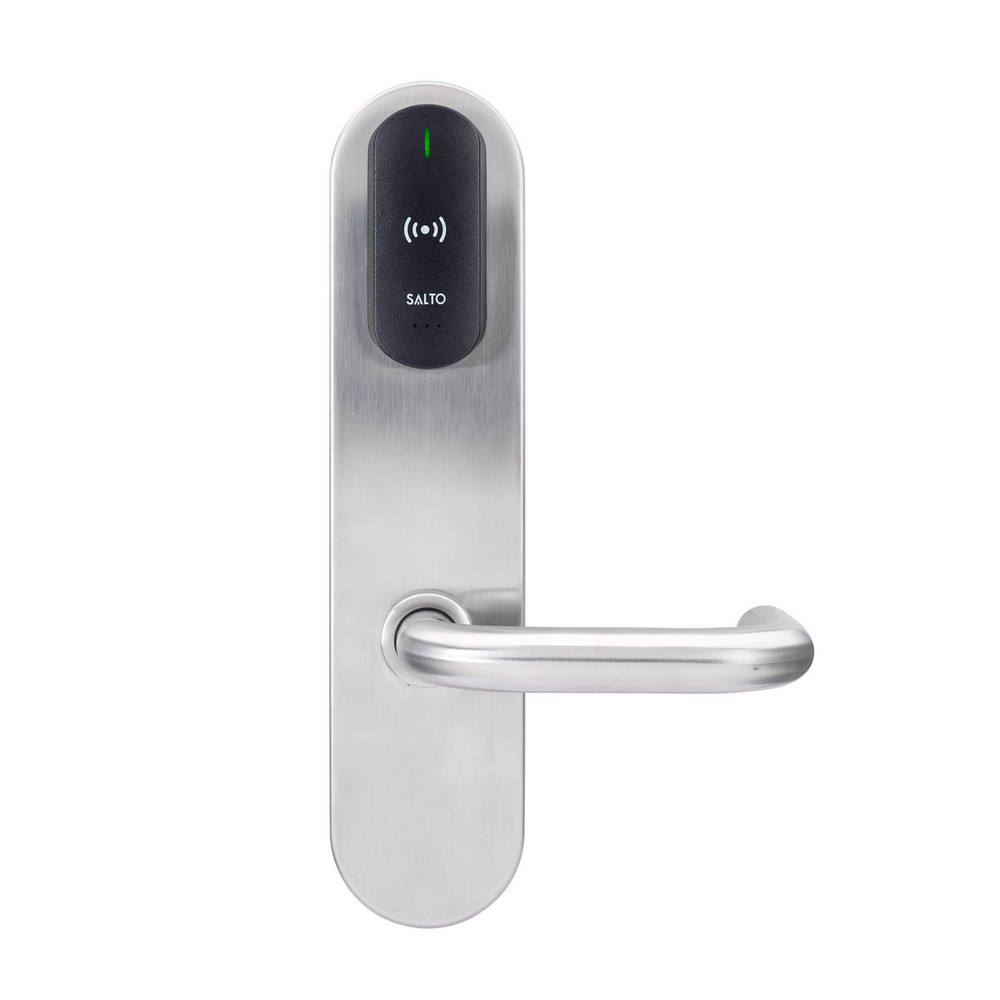

Salto XS4 Original+ Wide, ANSI, Satin Stainless, Z Lever, USK, E. Privacy

SS-AM656Z00IMBU6
AVAILABLE TO ORDER
Salto XS4 Original+ Wide, ANSI, Satin Stainless, Z Lever, USK, E. Privacy

The Salto XS4 Original+ is designed to fit most ANSI profile doors, mortise, cylindrical and tubular locks. Easy to install and retrofit, it can replace your existing door hardware and fits any door with a broad range of different models and functions. The XS4 Original+ incorporates the latest BLUEnet wireless and mobile credentials technology to accommodate access control needs of both today and tomorrow.

The perfect solution to integrate with Inner Range's Integriti system.

  • Covers door thicknesses: from 32 (1-3/8") up to 120 mm (4-3/4")
  • Dimensions: 290mm (11-27/64") x 67mm (2-5/8") x 20mm (25/32")
  • Clutch mechanism escutcheon: when unlocked, handle moves freely
  • Reversible handle: left or right escutcheon
  • Handle rotation: 52 degrees
  • Compatible Override Mortise Cylinder length: 1-1/8"
  • Compatible with ANSI standard cylindrical and mortise locks
  • Square spindles available: 8mm (5/16"), 7mm diamond (9/32"), 8mm split (5/16"), 7mm diamond split (9/32") and 7.6mm (19/64")

  • Simple installation is possible on any type of door
  • Body and escutcheon made of steel
  • Available with mechanical cylinder cut outs for key override or access lock outs (override mortise cylinders)
  • Mechanical or electronic privacy option
  • The lock can always be opened from the inside (single action panic feature works in conjunction with the Salto LA1T15 series mortise lock)
