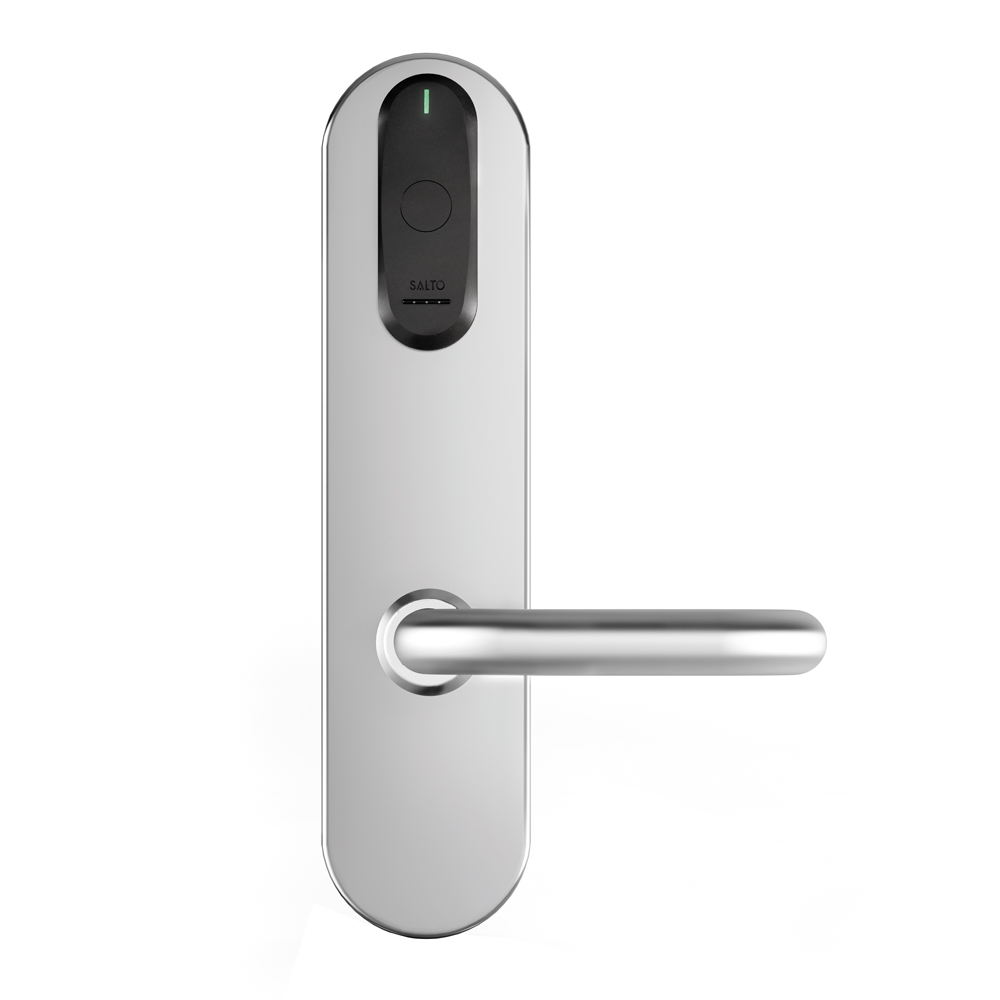

Salto Sallis ANSI Escutcheon, Mifare, Wide Body, Wide U-Lever, Satin

The wide version is specially designed to fit most Euro profile doors, and work with the majority of European mortise locks and cylinders. It is specially designed for use on busy, high traffic doors that need additional strength.

SS-A9650 is the Prox version. Other ID technologies available include: i-Button, DESfire, DESfire EV1, Mifare, Mifare plus, Mifare Ultralight C, Inside Picopass, Legic, HID iClass, SKIDATA

• Clutch mechanism escutcheon when unlocked handle moves free
• Available in wireless Sallis version for wireless real-time control
• Door status detector to monitor intrusions or door left open status (wireless escutcheons only)
• Body and escutcheon made of steel
• Compatible with DIN mortise locks, European mortise locks and narrow style mortise lock
• Compatible with European profile cylinders, Swiss profile cylinders and some tubular latches
• Square spindles available: 7mm, 7.6mm split, 8mm, 8mm split, 9mm and 9mm split
• Mechanical override with audit trail facility available
• Electronic privacy function through thumb turn or button on the inside
• AMOK version available for off-line lockdowns
• IP55 compliant (external escutcheon)

• Dimensions: 290mm x 67mm x 20mm
• Handle rotation: 52 degrees
• Door thickness compatibility: 30mm to 115mm
• Distance from the handle to the cylinder: 47mm to 110mm
