Siemon Replacement Die, AllPrep, Cat 6A Green

The SIE-CPT-DIE-6A AllPrep cable preparation tool provides a robust and reliable method of preparing both coaxial and twisted-pair cable for termination. The tool features two color-coded dies that are interchangeable for each media type. The coaxial die strips RG59 and RG6 coaxial cable and the twisted-pair die strips a wide variety of UTP, screened and fiber cables.

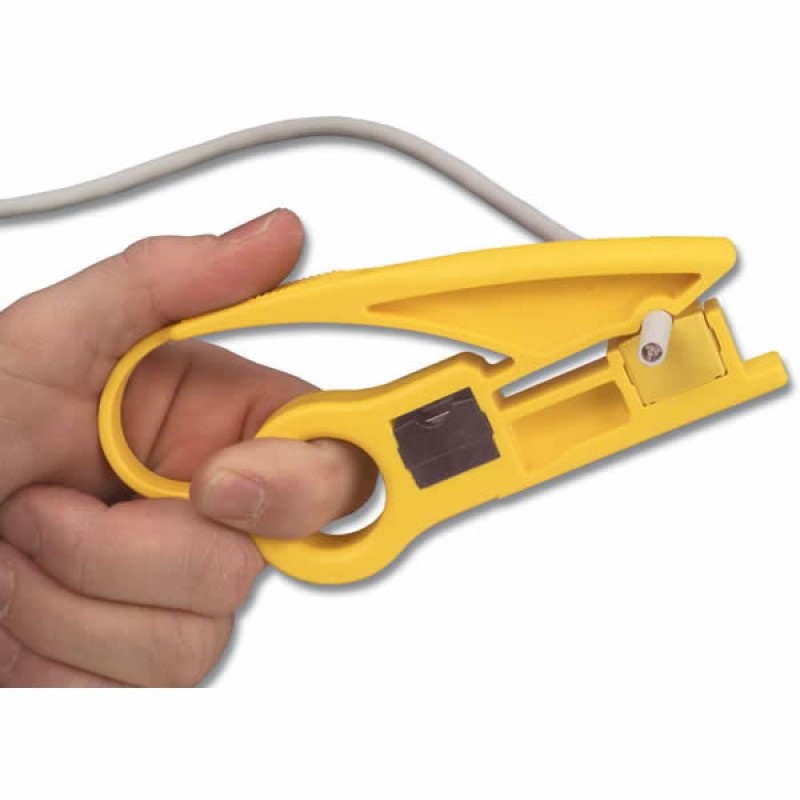

The CPT provides a simple and effective method to remove the outer cable jacket from 2-, 3-, or 4-pair cables without damaging the inner conductor insulation. The CPT is recommended for use with any round cable with an exterior diameter from 2.54 - 6.35mm (0.100 - 0.250 in.) and an outer jacket thickness from 0.380 - 0.635mm (0.015 - 0.025 in.). The TERA cable preparation tool uses a patent pending process to significantly reduce the time required to prepare fully shielded (S/FTP) cable. The tool includes an insert die with a blade, which is specifically designed to accurately strip the jacket and foil from 4-pair fully shielded cable without damaging the conductors. A template is also included to pre-align cable pairs and ensure proper pair positioning during termination.

To view the Datasheet click here
