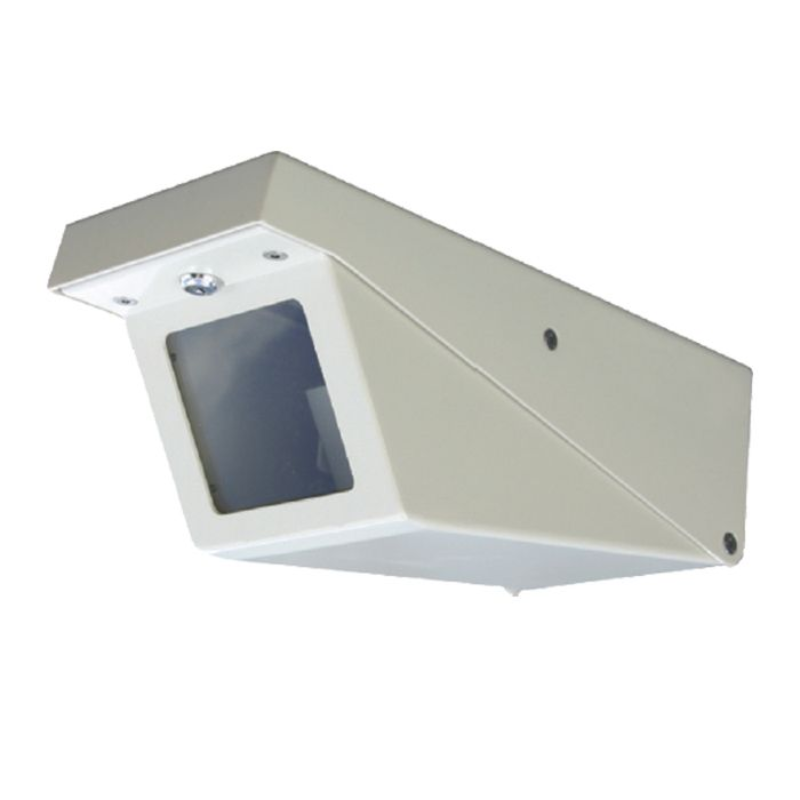

SEE Surface Mount Wedge Housing, IP66, Vandal, Coin Lock Fitted

The SMW5 IP66 Outdoor wedge housing is designed for high security applications where corrosion resistance and mechanical strength are required.

Manufactured from powder coated zinc plated steel the SMW5 offers a single keylock and dual captive security screw access and the option of surface run conduit to enter the enclosure directly without conversion to flexible conduit.

Datasheets

• SEE-SMW5 Datasheet.pdf

• Construction: 2.5mm zinc plated powder coated mild steel.
• Finish: Mossvale sands (light beige) polyester powder coat.
• Lens: 6.0mm polycarbonate.
• Access: 4 x 6.0mm stainless steel security screws plus one Selectrix coin keylock as standard.
• Cable Entry: 2 x 20mm entries.
• Max. Camera Size: 265mm.
• Weight: 6.4kg.
