SEE IP66 Indoor/Outdoor Environmental Housing, Stainless Steel, Beige

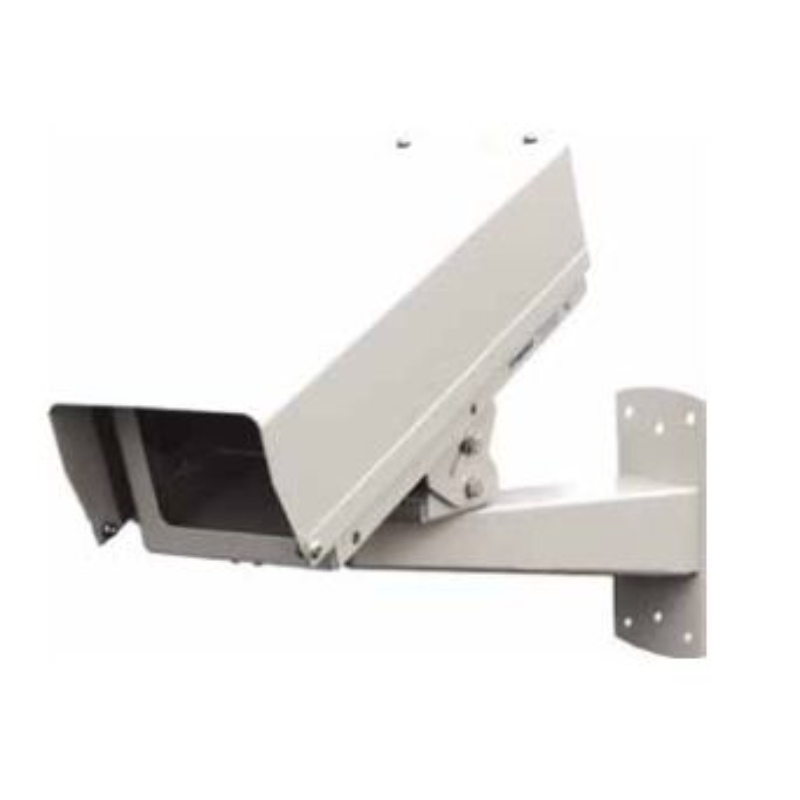

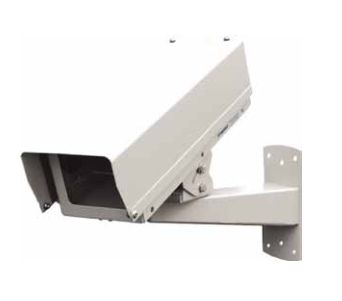

IP66 Outdoor camera housing for general purpose and corrosive applications.

The LPAR400SS is designed to accommodate a 1/4" to 1/3" CCD camera fitted with fixed and zoom lenses. Including a 100mm clear space behind the camera for connections when the maximum camera lens combination is used, this housing can be mounted off poles, building walls or in factories. It is also suitable fo use in mines.

Datasheets

• SEE-LPAR400 Datasheet.pdf

• Constructio: LPAR400SS- 1.2mm stainless steel.
• Finish: Mossvale sands (light beige) polyester powder coat.
• Lens: 4.8mm arris edged safety glass.
• Cable Entry: 4 x 20mm knockouts, supplied with 2 x 20mm compression glands and 2 x 20mm grommets.
• Access: 4 x 6.0mm stainless steel post cap security screws.
• Max. Camera Size: 284mm (L) x 135mm (W) x 86mm (H). 120mm height available with custom camera sled.
• Weight: 4.2kg
