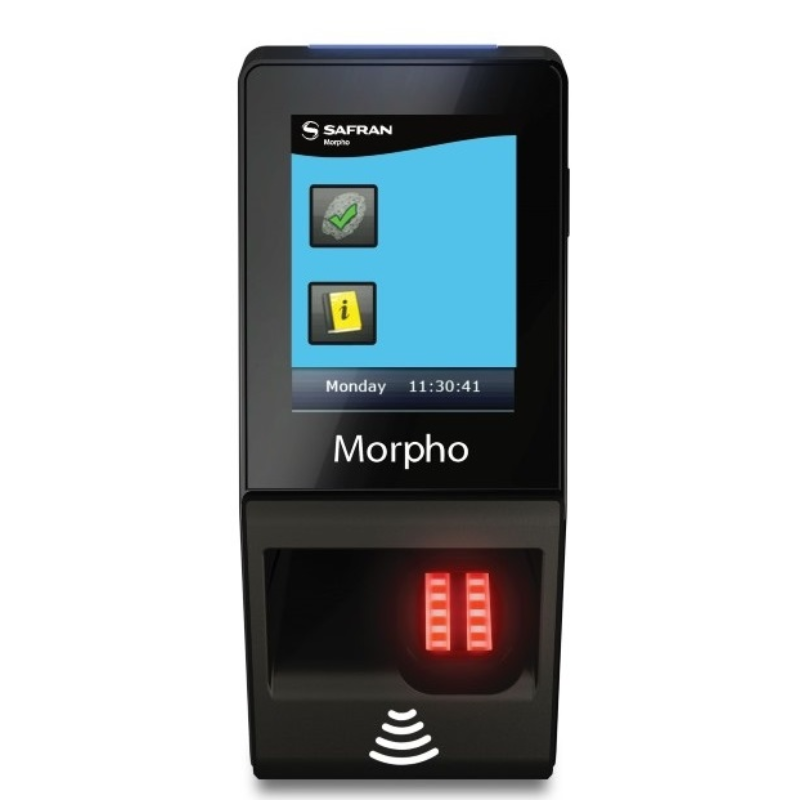

Idemia Sigma Lite Bio & iCLASS Card Reader with LCD Display, 500 Users

The Sigma Lite is an indoor / outdoor IP based finger scan reader capable of sending standard 26-bit Wiegand to an Access Control System or it can operate in standalone mode via an on-board relay. A single input and output are available for a Request to Exit (REX) button and door contact. A USB Wi-Fi Network adaptor kit can be used if a cat5 cable is not available at the reader. This model Sigma Lite+ has a built-in iCLASS card reader and a 2.8" LCD touchscreen display. All setup and configuration is carried out through MorphoManager Software which is comprised of a Server and Client Package. First time users need to attend a CSD in branch training session prior to purchase of Morpho finger scan readers.

• 500 users with additional licences for up to 3,000 or 10,000 users
• iCLASS card reader with a 2.8" LCD touchscreen display
• Up to 250,000 users in 1:1 verification mode
• Up to 10,000 users (2 finger templates per user) in 1:N identification mode
• 1:10,000 user matching in 1 second
• Accuracy maintained regardless of number of users in database
• FBI PIV IQS certified optical sensor
• 1,000,000 event transaction log
• Latest generation Morpho embedded algorithms (MINEX and FIPS 201 approved)
• WiFi Network Adaptor (optional)

User Manuals

• SAF-SIGMA-L User Guide.pdf

• Interfaces: Standard 26-bit Wiegand, RS485, relay, Ethernet, WiFi (optional)
• Power Supply: External 12V-24Vdc or POE
• Weather resistant IP65 rated
• Dimensions: 156 (H) x 68 (W) x 62 (D) mm
• Cat5 cable for network connection
• 6 core screened cable for power, Wiegand and tamper
• Enrolment station is required for saving finger scans to the User profile
• PC with MorphoManager software is required
• In-branch pre-sales training prior to purchase
