Idemia Sigma Lite Bio Only Finger Scan Reader, 500 Users

SAF-SIGMA-L
AVAILABLE TO ORDER
Idemia Sigma Lite Bio Only Finger Scan Reader, 500 Users

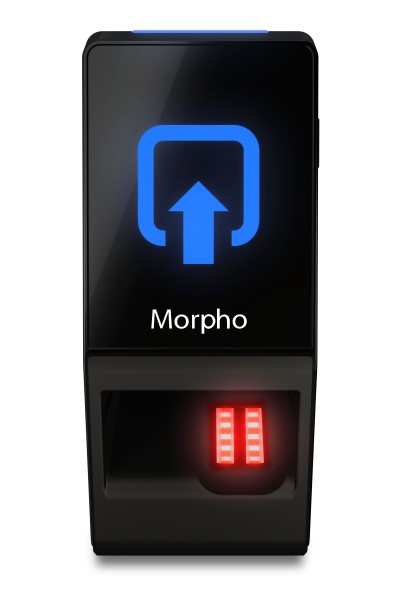

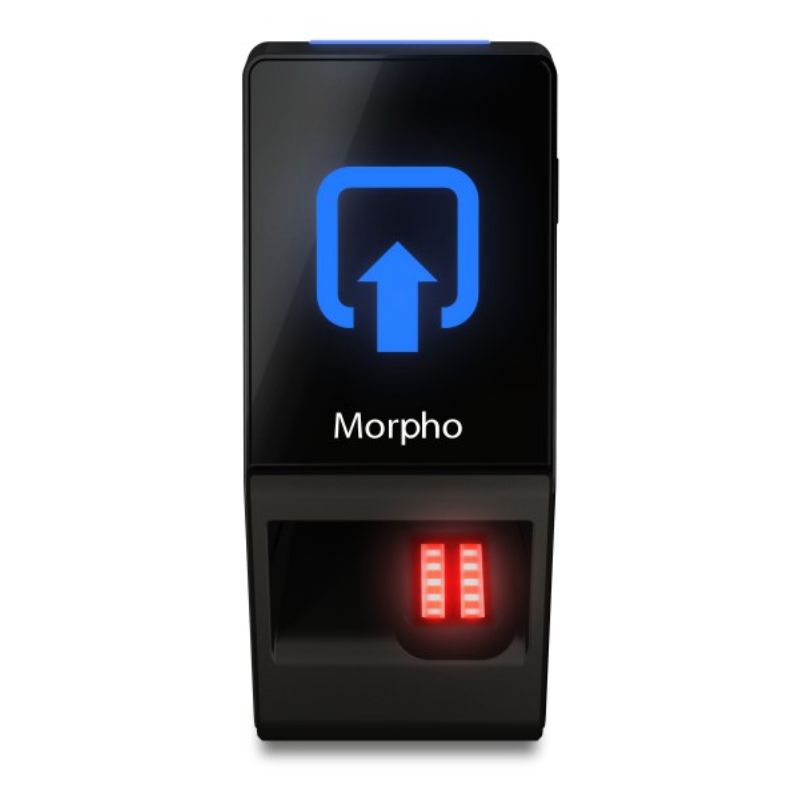

The Morpho Sigma Lite is an indoor / outdoor finger scan reader capable of sending 26 bit Wiegand to an Access Control System. It can also operate in standalone mode via an on-board relay.

A single input and output are available for a Request to Exit (REX) button and door contact, additionally, there is also a Wiegand input for adding the Sigma Lite reader to an existing Access Control system that is currently using card access. A USB WiFi network adaptor kit can be used if a Cat5 cable is not available at the reader.

All setup and configuration is carried out through MorphoManager Software which is comprised of a Server and Client Package. Other models available include an iCLASS Reader, a MIFARE/DESfire Reader or a Finger Scan Reader with a Time and Attendance feature for interfacing to payroll or job tracking management systems.

N.B. First time users will need to attend a CSD in-branch training session prior to purchase of Morpho finger scan readers.

  • 500 users with additional licences for up to 3,000 or 10,000 users.
  • Up to 250,000 users in 1:1 verification mode
  • Up to 10,000 users (2 finger templates per user) in 1:N identification mode
  • 1:10,000 user matching in 1 second
  • Accuracy maintained regardless of number of users in database
  • FBI PIV IQS certified optical sensor
  • 26 bit Wiegand IN for an external card reader
  • 1,000,000 event transaction log
  • Latest generation Morpho embedded algorithms (MINEX and FIPS 201 approved)
  • Wifi network adaptor (optional)

  • Interfaces: 26 bit Wiegand, RS485, Relay, Ethernet, Wi-Fi (optional)
  • Power Supply: External 12V-24Vdc or POE
  • Weather resistant: IP65 rated
  • Vandal resistant: IK08 rated
  • Dimensions: 156 (H) x 68 (W) x 62 (D) mm
  • Cat5 cable for network connection
  • 6 core screened reader cable for Power, Wiegand and Tamper
  • Enrolment station for saving finger scans to the User profile
  • PC with MorphoManager Software
  • In Branch pre sales training prior to purchase

add remove Description

No description available for this product

  • Interfaces: 26 bit Wiegand, RS485, Relay, Ethernet, Wi-Fi (optional)
  • Power Supply: External 12V-24Vdc or POE
  • Weather resistant: IP65 rated
  • Vandal resistant: IK08 rated
  • Dimensions: 156 (H) x 68 (W) x 62 (D) mm
  • Cat5 cable for network connection
  • 6 core screened reader cable for Power, Wiegand and Tamper
  • Enrolment station for saving finger scans to the User profile
  • PC with MorphoManager Software
  • In Branch pre sales training prior to purchase
