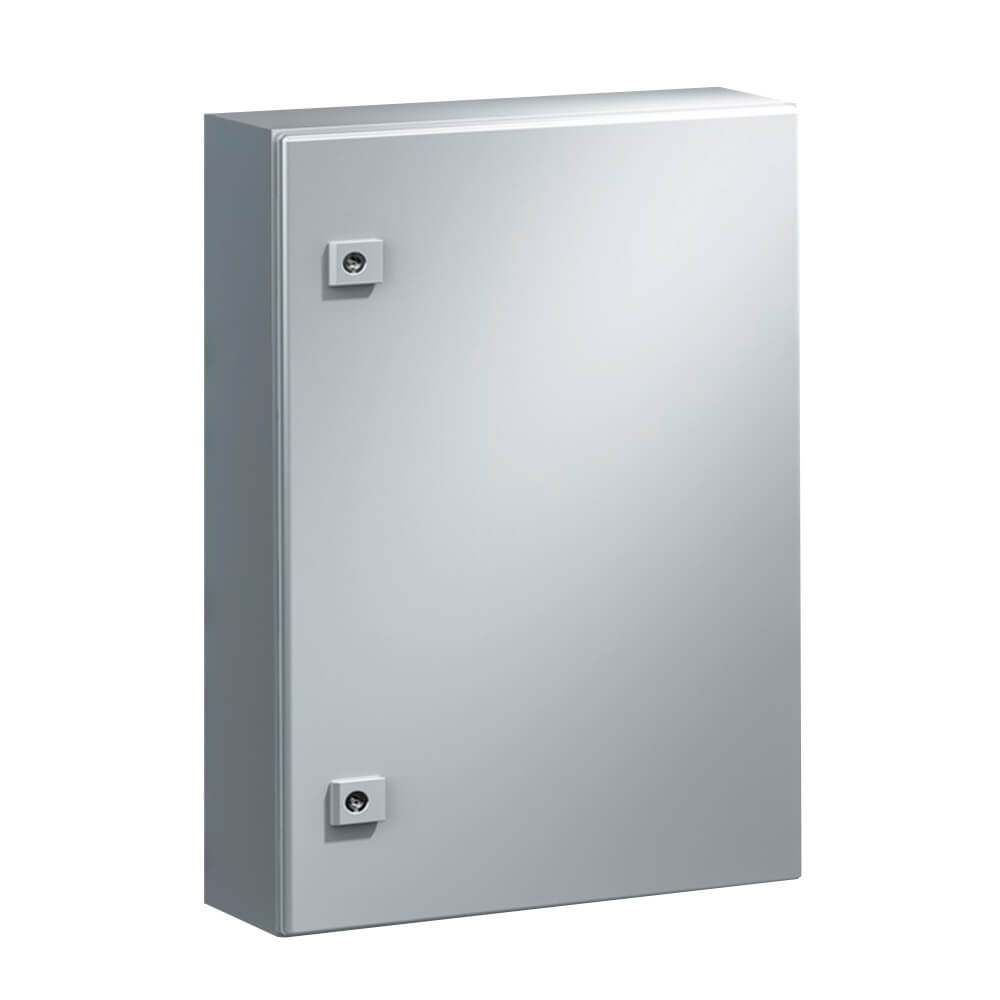

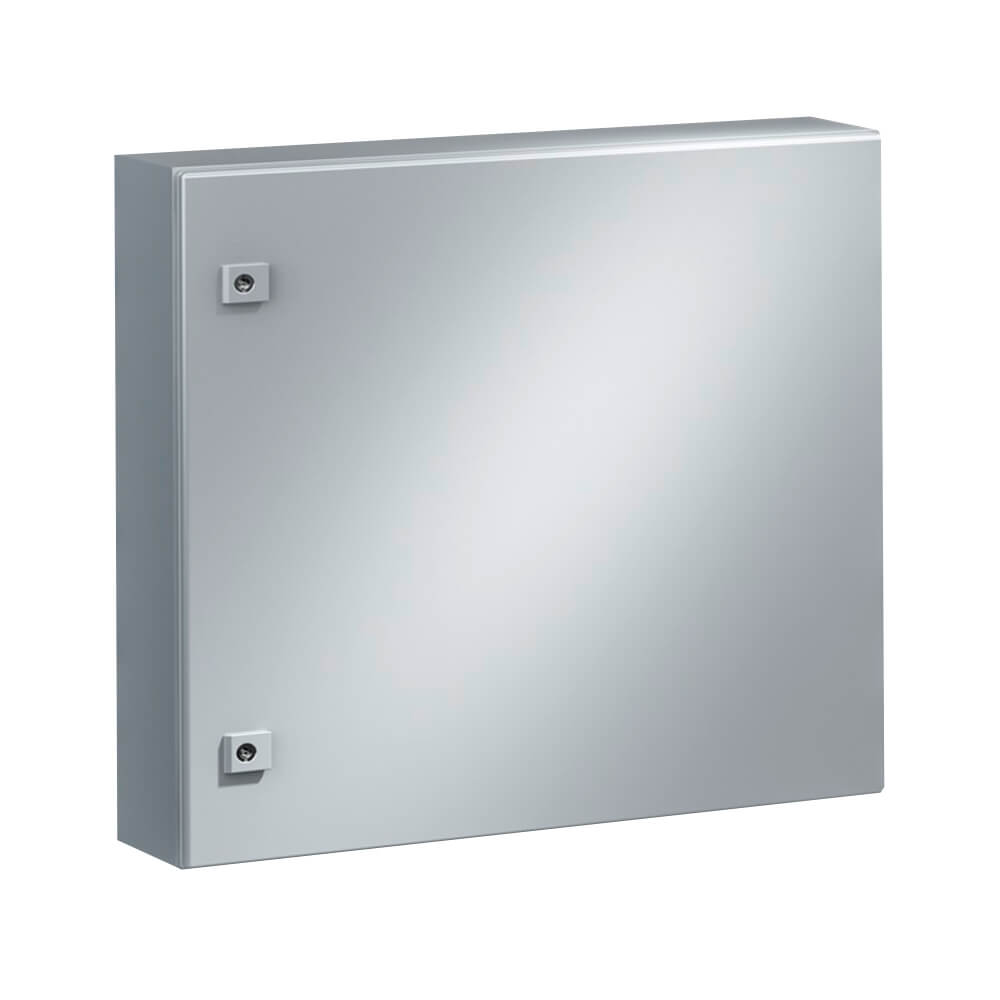

Rittal AE Compact Enclosure, 380 x 600 x 210mm, 2 Locks, PCB Mount Plate, IP66
RT-AE-1038500
AVAILABLE TO ORDER
Rittal AE Compact Enclosure, 380 x 600 x 210mm, 2 Locks, PCB Mount Plate, IP66
The Rittal AE enclosure series offer extremely versatile applications with moderate space requirements, meeting the highest standards of corrosion protection with a protection category of up to IP66. The wall-mounted enclosures offer simple interior installation and flexible cable entry. Rittal provides in-house access to their Applications Centre that offers an extensive range of value added modifications such as drilling, milling and tapping of metric threads on all fasciae of enclosures either flat or preformed.
- Protection category IP to IEC 60 529: IP66
- Protection category NEMA: NEMA 4
- Anti-Vandal rating: IK09
Material
- Enclosure: Sheet steel
- Door: Sheet steel, all-round foamed-in PU seal
Surface Finish
- Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
- Mounting plate: Zinc-plated
