Rosslare Power Supply, 12V, 2A Output + 300mA for Battery Charging

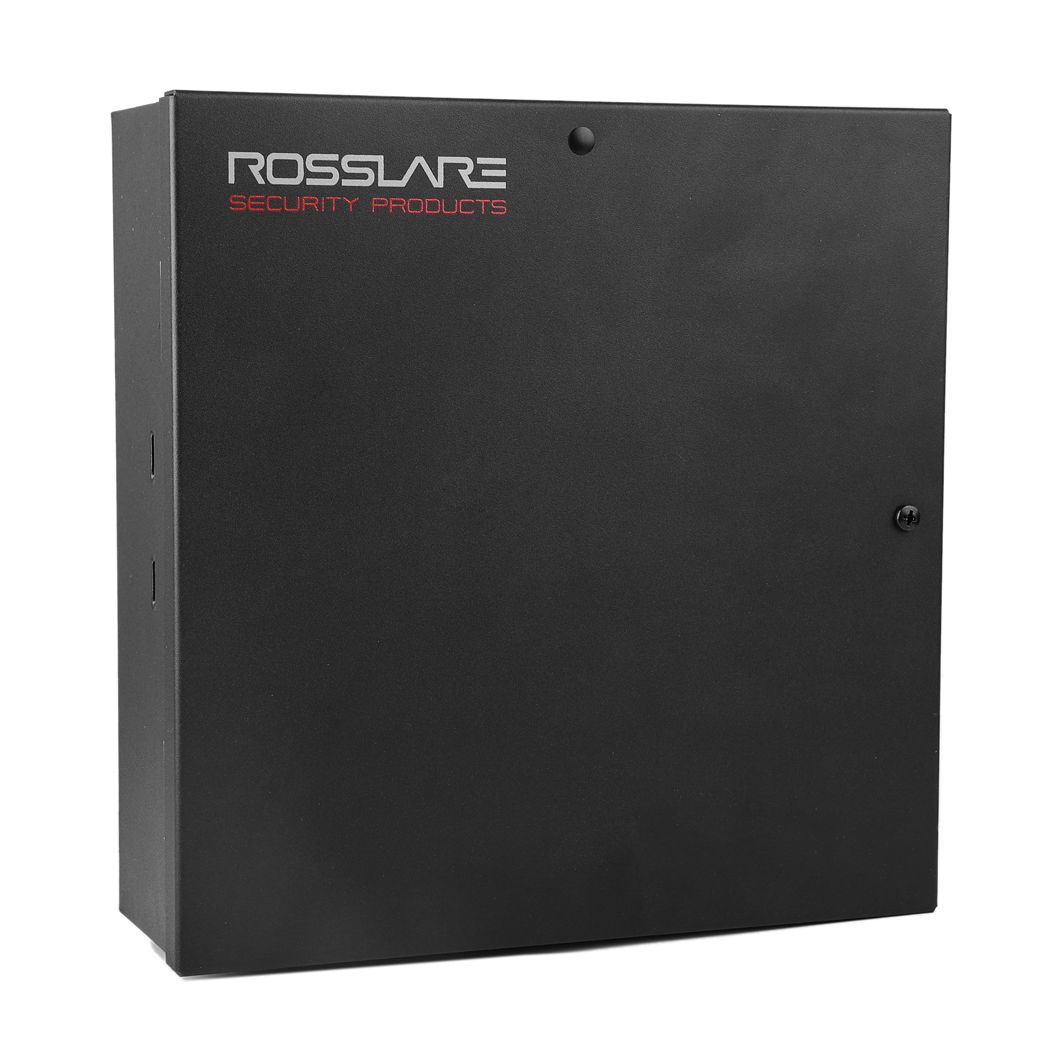

The Rosslare ROS-ME-0515M is a multipurpose wall mountable power management enclosure. It features a 4A switch-mode power supply, two isolated output channels and a separate battery charging management circuit.

• Enclosure to fit standard 12V 7Ah lead acid batteries
• Preventative deep discharge circuitry
• C14 inlet plug
• C13 AC cable
• Enclosure lock

Datasheets

• ROS-ME0515M-A Datasheet.pdf

• Input: 110-240V AC, 50/60Hz, 1.5A with C14 plug
• Output: 14.5V DC, 2A (shared across 2x outputs)
• Battery Charge Current: 1.5A
• Dimensions: 228mm x 224mm x 84mm
• Weight: 2.21kg
