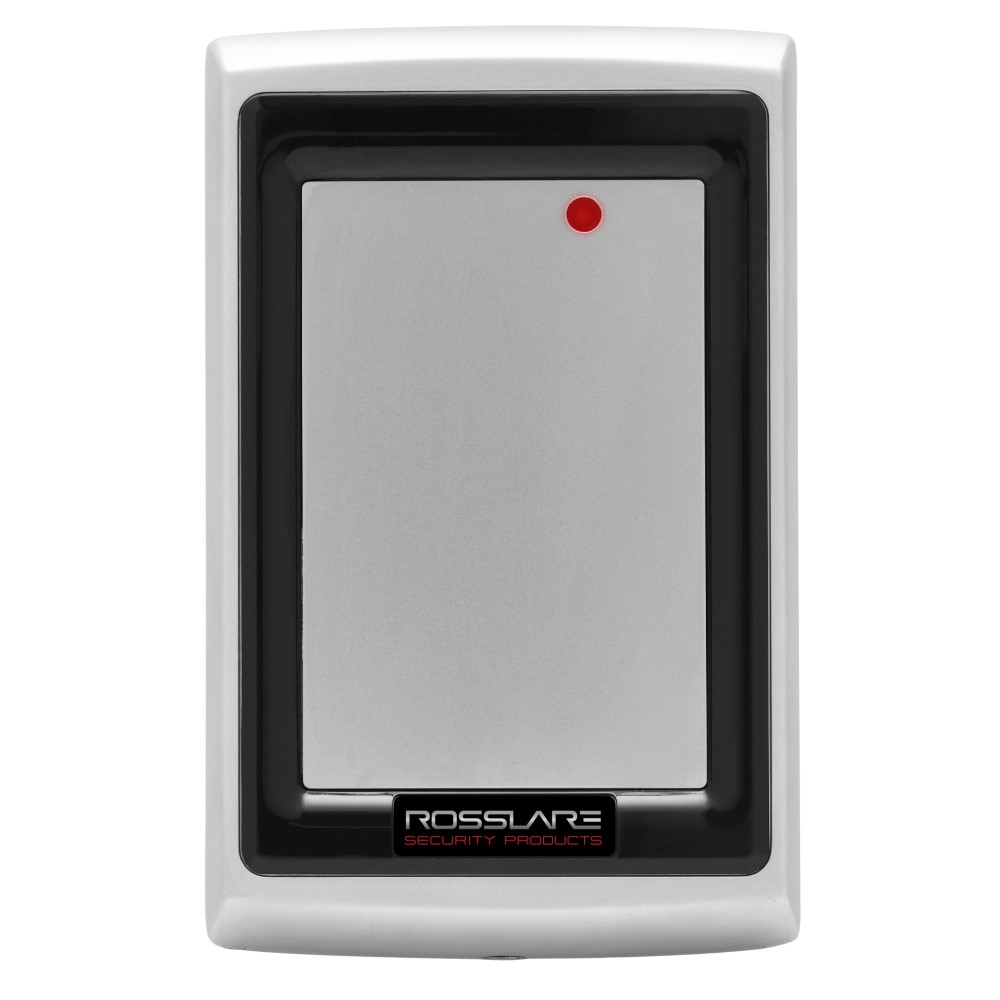

Anti-Vandal Mifare Contactless Smartcard Reader, CSN Select

The Rosslare ROS-AYQ6255 is an anti-vandal Mifare smartcard contactless reader, which provides the capability of serial ID reading from many smart card RFID standards which is great for Mifare cards to any standard access control system. With 7 programmable output formats, it will fit almost any existing system's needs and required read information, making it a very simple, reliable and cost effective way to upgrade your system to smartcard standard.

This fully sealed, epoxy potted unit provides a weatherproof and vandal-resistant solution for extremely harsh environments.

• Sleek and modern design
• Customisable control and status lines available with the CSN SELECT Configuration Card Tool for DR-6255
• Selectable Wiegand output formats using the CS-HCT hardware configuration tool for the DR-6255 application
• Tri-colored LED operation
• Optical wall tamper detection
• IP65 rated and made of tough polycarbonate UV-resistant plastic
• Comes with mounting template and installation kit for easy installation
• Anti-Vandal enclosure
• NFC android smartphone is supported with the android app for host card emulation (HCE)

Datasheets

• ROS-AYx6255 Datasheet.pdf

• Read range: 5cm
• IP65 rating
• Operating temperature: -35 to 66 degrees Celsius
• Dimensions: 120 x 76 x 21.5mm
• Weight: 430 grams
