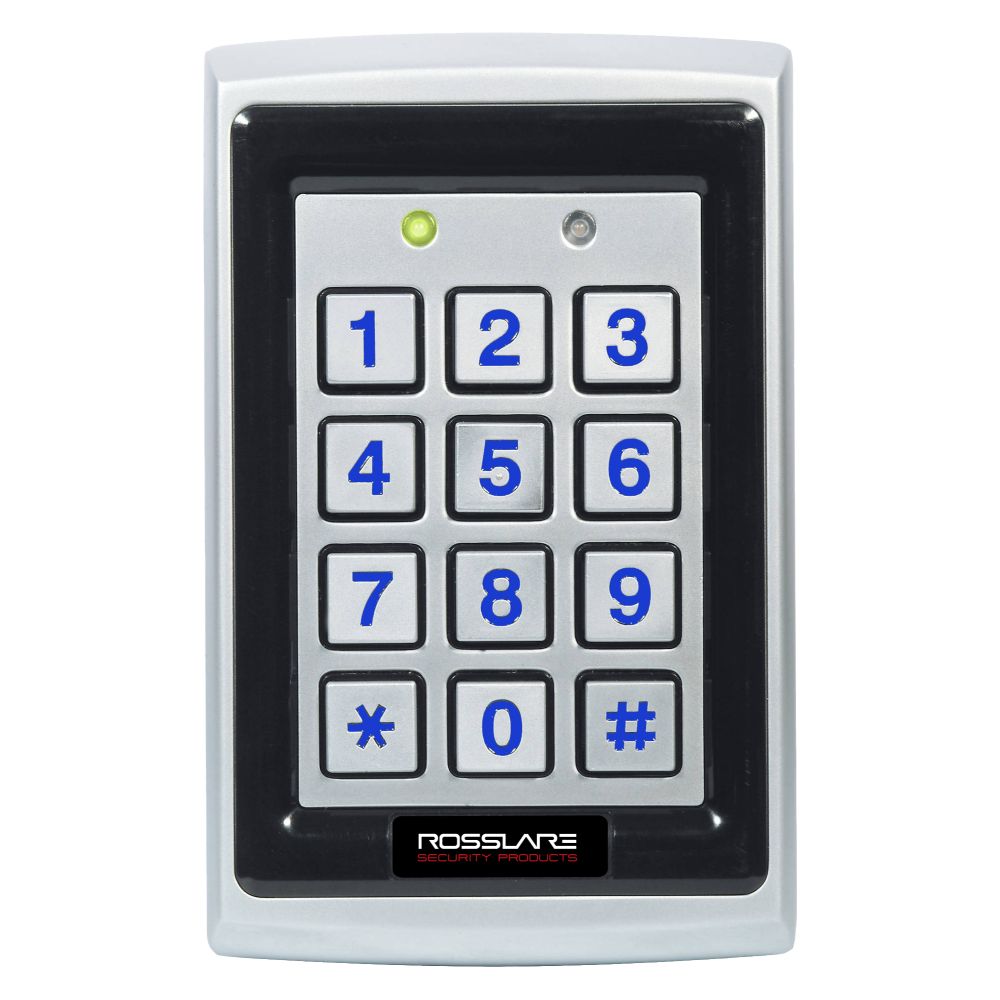

Rosslare 3x4 PIN Keypad, EM Prox, Wiegand, Backlit, Vandal, IP65

Part of the Rosslare convertible line of readers / controllers, this unit can be operated as an outdoor backlit keypad &;amp; proximity reader, which connects to any standard controller, or else it converts into a fully featured, 500-users stand-alone controller when connected to Rosslare's PS-x5 family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN and proximity credentials are required. This attractive looking yet robust model features unique shiny blue illuminated metal keys on a metallic, epoxy filled, sealed housing.

• Supports 4 to 8-Digit PIN credentials and 125KHz EM type RFID cards and tags
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible BLUE Backlit Keypad.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User friendly menu, based on keypad, LED and sounder indicators.
• Back and Cover Optical tamper detection and output.
• Default operation as a multi-format reader (Wiegand 26 bits / Clock &;amp; Data)
• PS-x5 intelligent power supply family converting it into a 500-user stand-alone controller with secure relays
• 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3&;times;4 Matrix
• Supports Wiegand or Clock &;amp; Data Transmission formats.
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorised opening.
• 60 cm (23.6 in.) shielded interface cable.

Datasheets

• ROS-AYCQ64B Datasheet.pdf
