Anti-Vandal Mifare Smartcard Contactless Reader with Keypad , CSN Select, Convertible

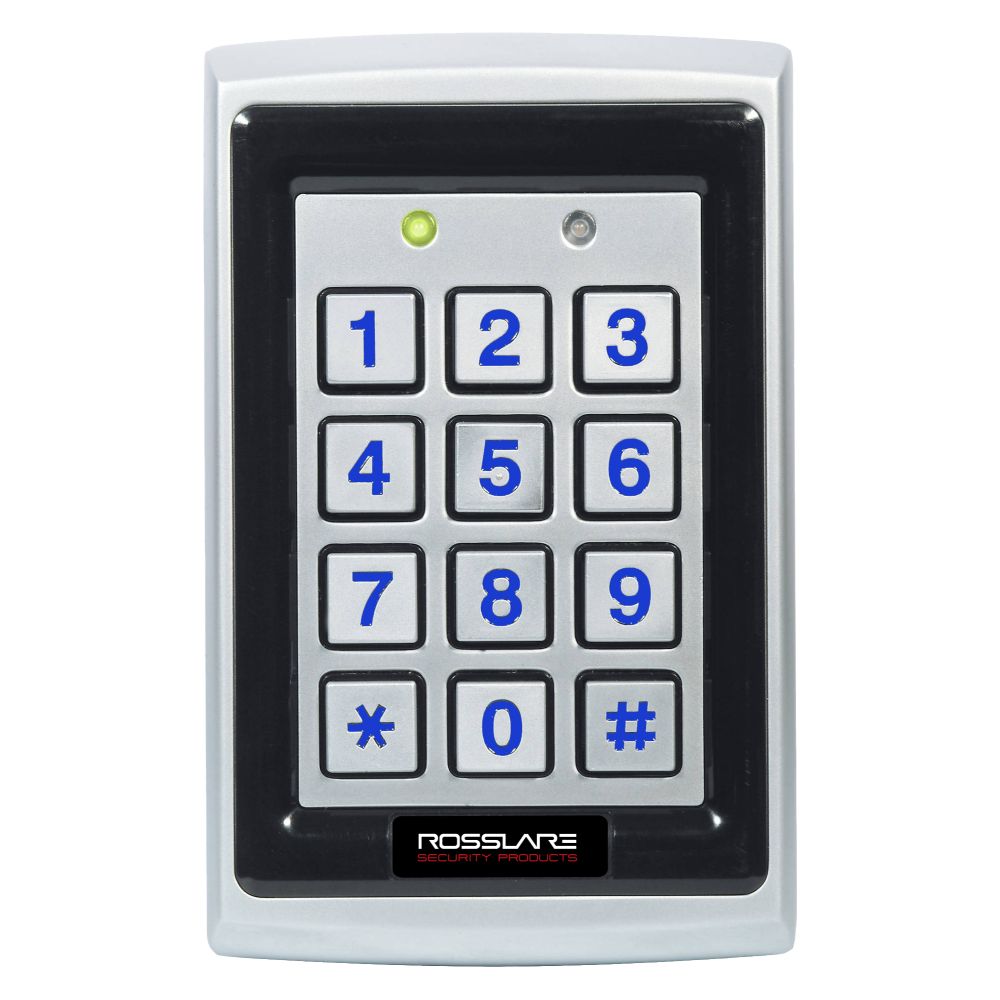

The Rosslare ROS-AYCQ6355 is an anti-vandal Mifare smartcard contactless reader with keypad, which provides the capability of serial ID reading from many smart card RFID standards which is great for Mifare cards to any standard access control system. With 7 programmable output formats, it will fit almost any existing system's needs and required read information, making it a very simple, reliable and cost effective way to upgrade your system to smartcard standard.

This fully sealed, epoxy potted unit provides a weatherproof and vandal-resistant solution for extremely harsh environments.

• Selectable Wiegand output formats using the CS-HCT hardware configuration tool for the DR-6255 application
• Eight keypad transmission formats are available and can be locally selected via keypad programming
• Features Rosslare's convertible technology
• NFC android smartphone is supported with the android app for host card emulation (HCE)
• Sleek and modern design
• Addressable OSDP connectivity, up to 32 addresses using DIP switches
• Customisable control and status lines available with the CSN SELECT Configuration Card Tool for DR-6255
• Two tri-colored LED operation
• Optical wall tamper detection
• Blue backlit keypad with power saving options (On, Off, Dimming)
• IP65 rated and made of tough polycarbonate UV-resistant plastic
• Comes with mounting template and installation kit for easy installation

Datasheets

• ROS-AYCx6355 Datasheet.pdf

• Read range: 5cm
• IP65 rating
• Operating temperature: -35 to 66 degrees Celsius
• Dimensions: 120 x 76 x 21.5mm
• Weight: 430 grams
