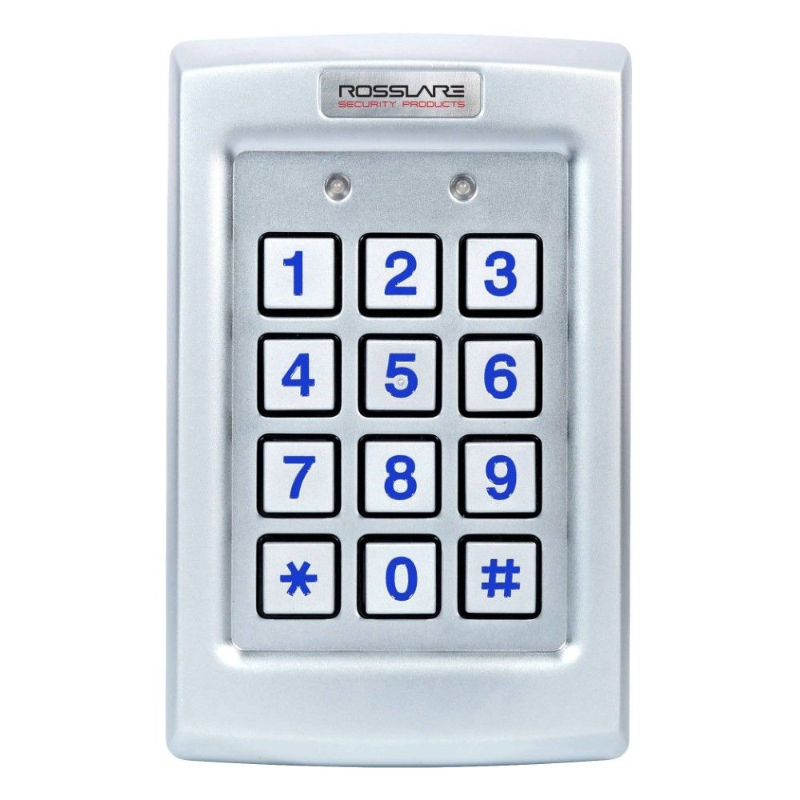

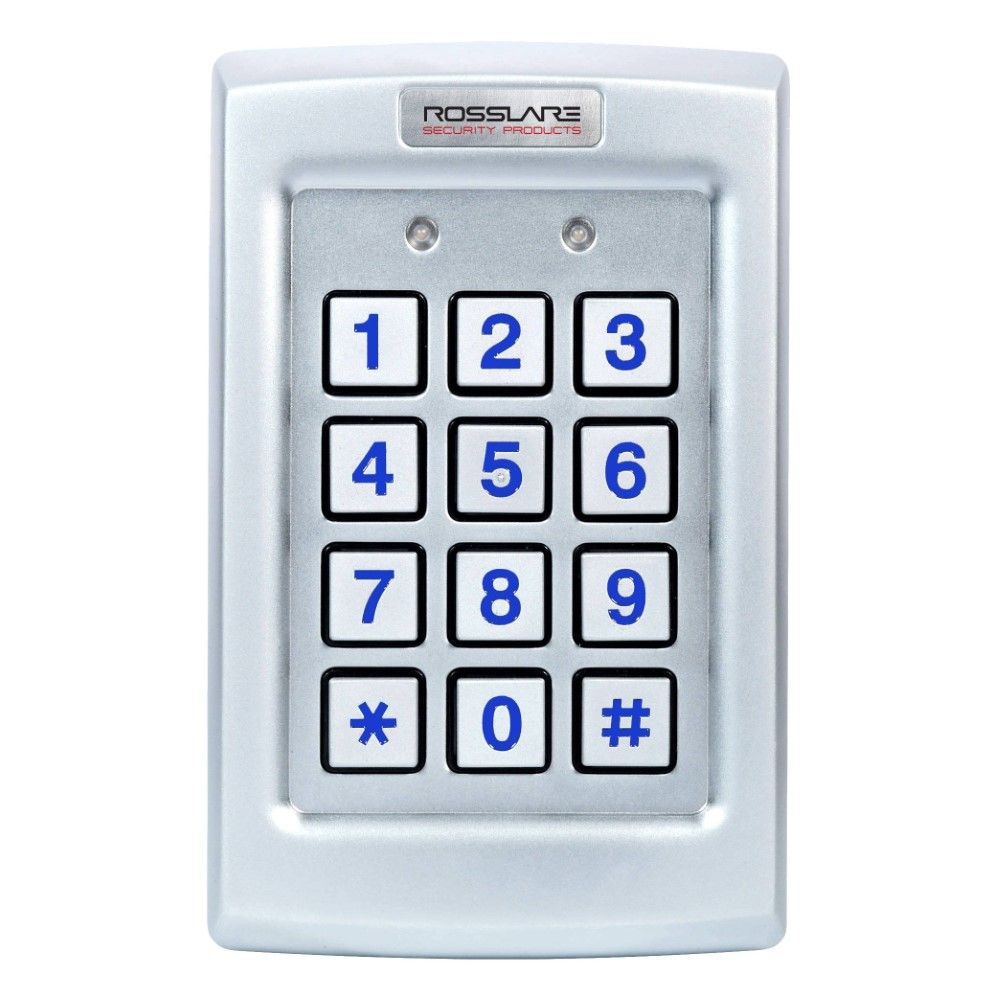

Rosslare 3x4 PIN Keypad, Wiegand, Backlit, Vandal, IP65

The AYC-Q54B offers programmable PIN transmission formats, LED Control and tamper detection, providing extra security and flexibility. Come rain or shine, this unit can handle the challenge, with its extremely-strong metallic housing and waterproof enclosure for maximum durability. The backlit keypad, with its auto-dimming options is clearly visible day or night, making these units ideal for residential and commercial applications.

• Supports 4 to 8-Digit PIN credentials
• Smooth, attractive design, with all-weather indoor and outdoor operation
• Large, highly-visible BLUE Backlit Keypad
• 2 tri-colored LEDs and an integral sounder for programming and operation
• User friendly menu, based on keypad, LED and sounder indicators
• Back and Cover Optical tamper detection and output
• Automatically recognizes Rosslare's PS-x5 intelligent power supply family converting it into a 500-user stand-alone controller with secure relays
• 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3&;times;4 Matrix
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
• 60 cm (23.6 in.) shielded interface cable
• Meets IP65 for outdoor use

Datasheets

• ROS-AYCQ54B Datasheet.pdf
