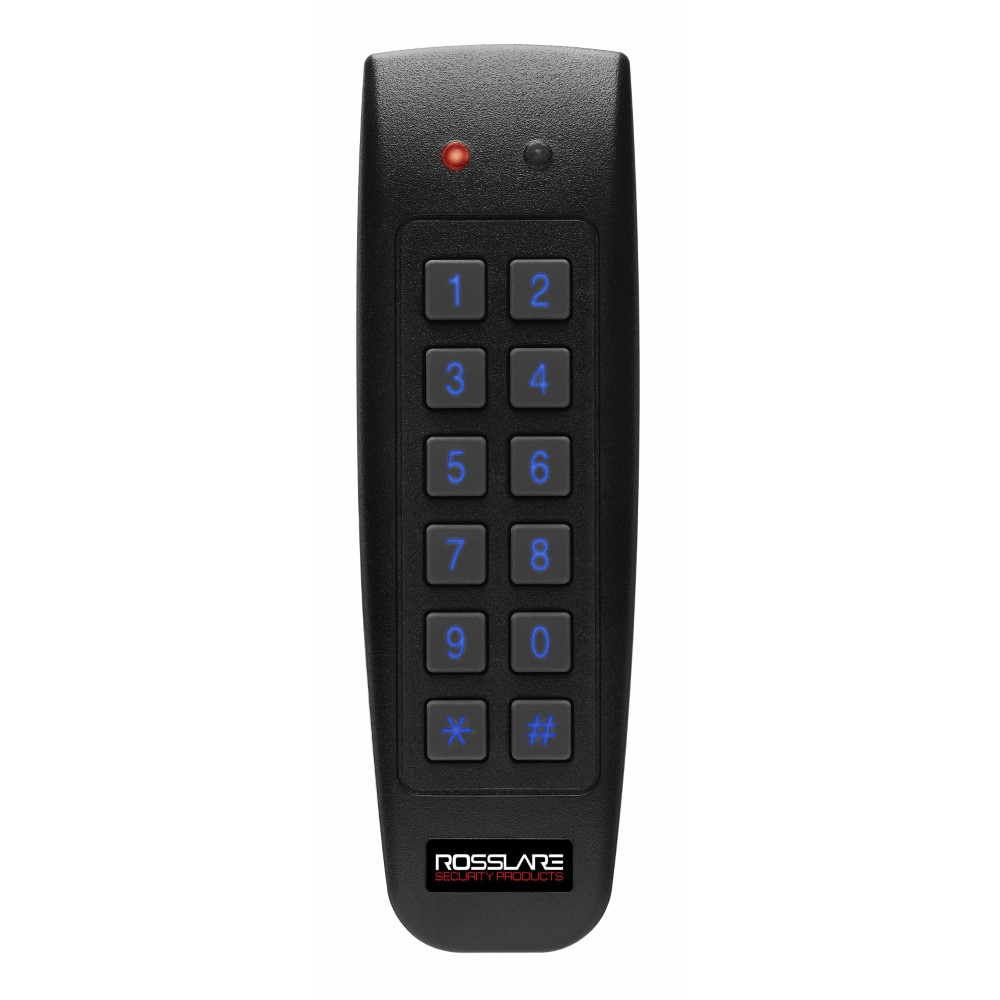

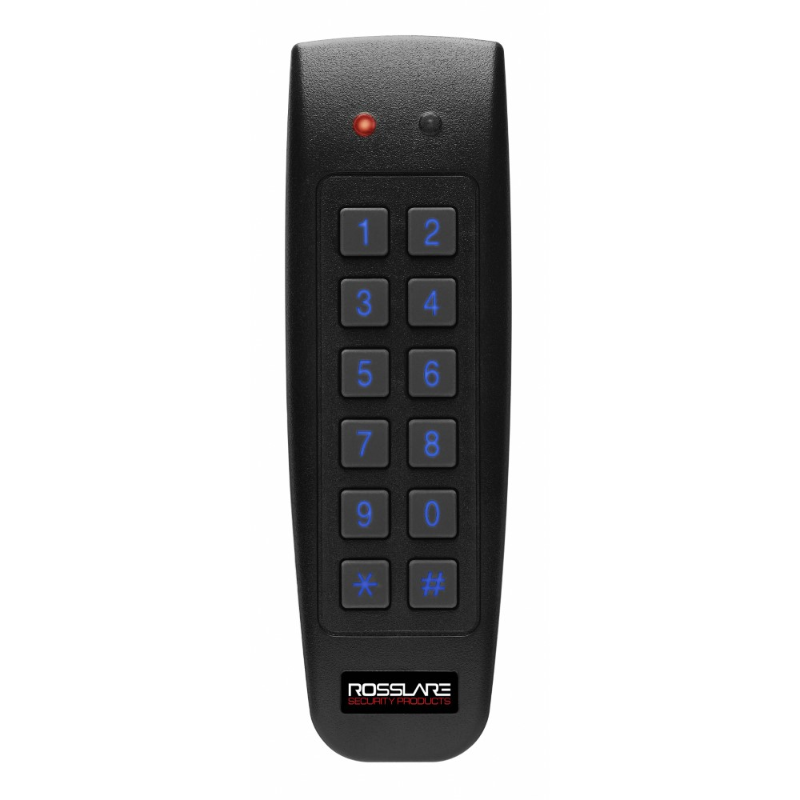

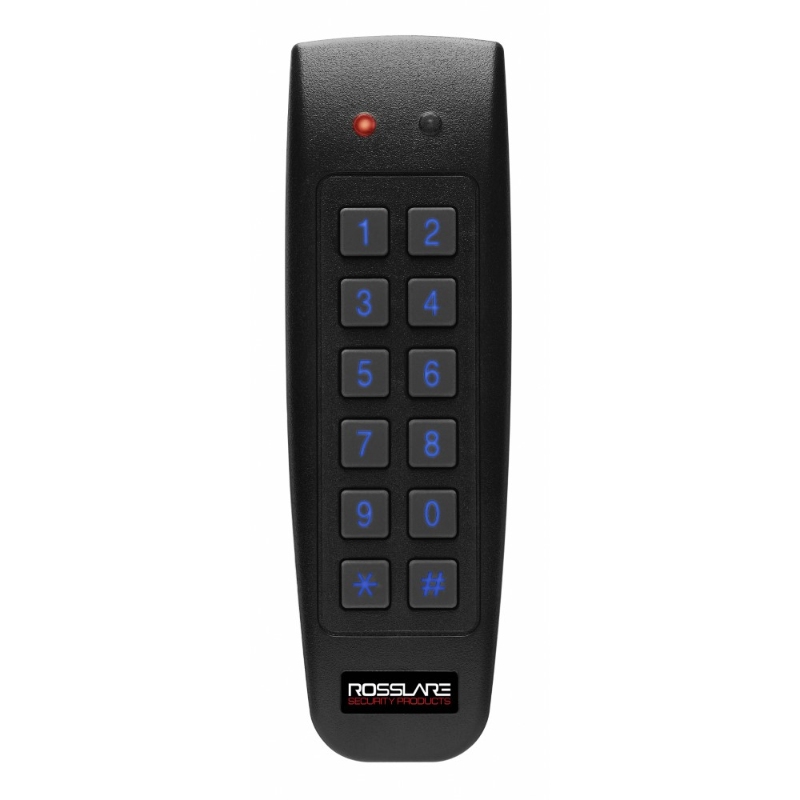

Rosslare goProx 2x6 PIN Keypad, HID Prox, Wiegand, Backlit, IP65

Rosslare's goPROX ROS-AYCQ60 is a convertible PIN/Proximity Reader with Genuine HID Technology. The goPROX AYC series automatically determines whether to function as a reader or as a secured standalone controller. For example, if the unit is connected to a standard access control unit, then it functions as a reader. Alternatively, if the unit is connected to a Rosslare secured intelligent power supply such as the PS-A25T, PS-C25T, or PS-C25TU, it functions as a 500-user secured standalone controller.

• Advanced, secure, multi-application functionality for intelligent installations
• Smooth, attractive design, with all-weather indoor and outdoor operation
• 2 tri-coloured LEDs and an integral sounder for programming and operation
• Unique backlit piezoelectric keys
• User-friendly menu based on keypad, LED, and sounder indicators
• Back and cover optical tamper detection and output
• Default operation as a multi-format reader
• (Rosslare PROX and HID Genuine Technology formats, Wiegand 26 bits, Clock & Data)
• Automatically recognises Rosslare’s PS-x5 intelligent power supply family converting it into a 500-user standalone controller with secure relays
• 3 security levels (controller mode): Bypass (free entry), Normal (card or PIN required) or secure (card + PIN)

Datasheets

• ROS-AYCx60 Datasheet.pdf

• Operating voltage range: 5–16 VDC
• Cable distance host controller: Up to 150 m (500 ft) using an 18 AWG cable
• Max proximity card range: 55 cm (2.165 in.)
• Compatible cards: 125KHz and / or dual technology ISO cards, clamshell and tags
• Operating temperature: -30 degrees to 65 degrees Celsius
• Outdoor usage: IP65
• Dimensions: 137 x 44 x 21 mm
• Weight: 160g
