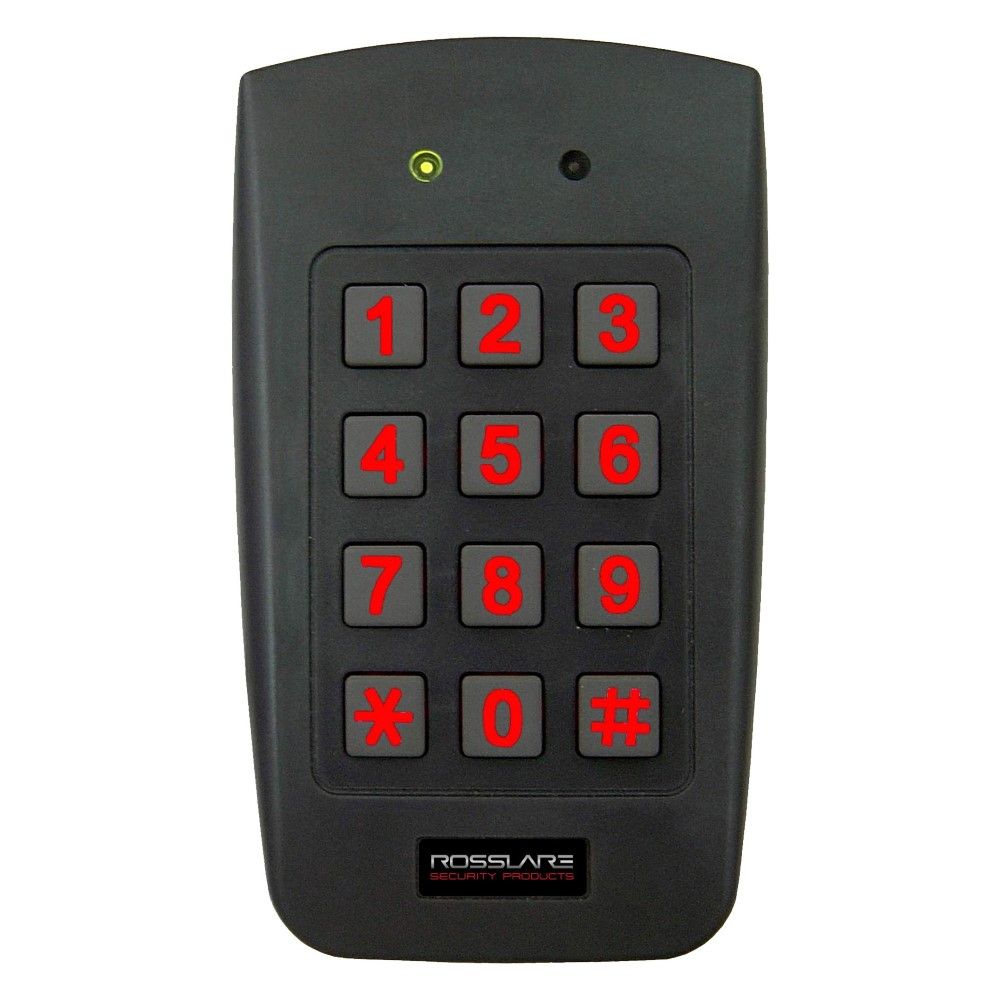

Rosslare 3x4 PIN Keypad, Wiegand out, Backlit, IP65

Rosslare's AYC-F54 is part of the Convertible line of readers / controllers, this unit can be operated as an outdoor backlit keypad reader, which connects to any standard controller, or else it converts into a fully featured, 500-users stand-alone controller when connected to Rosslare's PS-x5 family of intelligent power supply/relay units. This unit provides a most effective solution for indoor and outdoor access systems where PIN credentials are required.

• Supports 4 to 8-Digit PIN credentials.
• Smooth, attractive design, with all weather indoor and outdoor operation.
• Large, high-visibility RED Backlit Keypad.
• 2 tri-colored LEDs and an integral sounder for programming and operation.
• User friendly menu, based on keypad, LED and sounder indicators.
• Back and Cover Optical tamper detection and output.
• Automatically recognizes Rosslare's PS-x5 intelligent power supply family converting it into a 500 users standalone controller with secure relays.
• 8 Selectable PIN transmission modes including options for Key stream, Binary, Parity, and 3?4
• Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorised opening
• 60 cm (23.6 in.) shielded interface cable

Datasheets

• ROS-AYCF54 Datasheet.pdf
