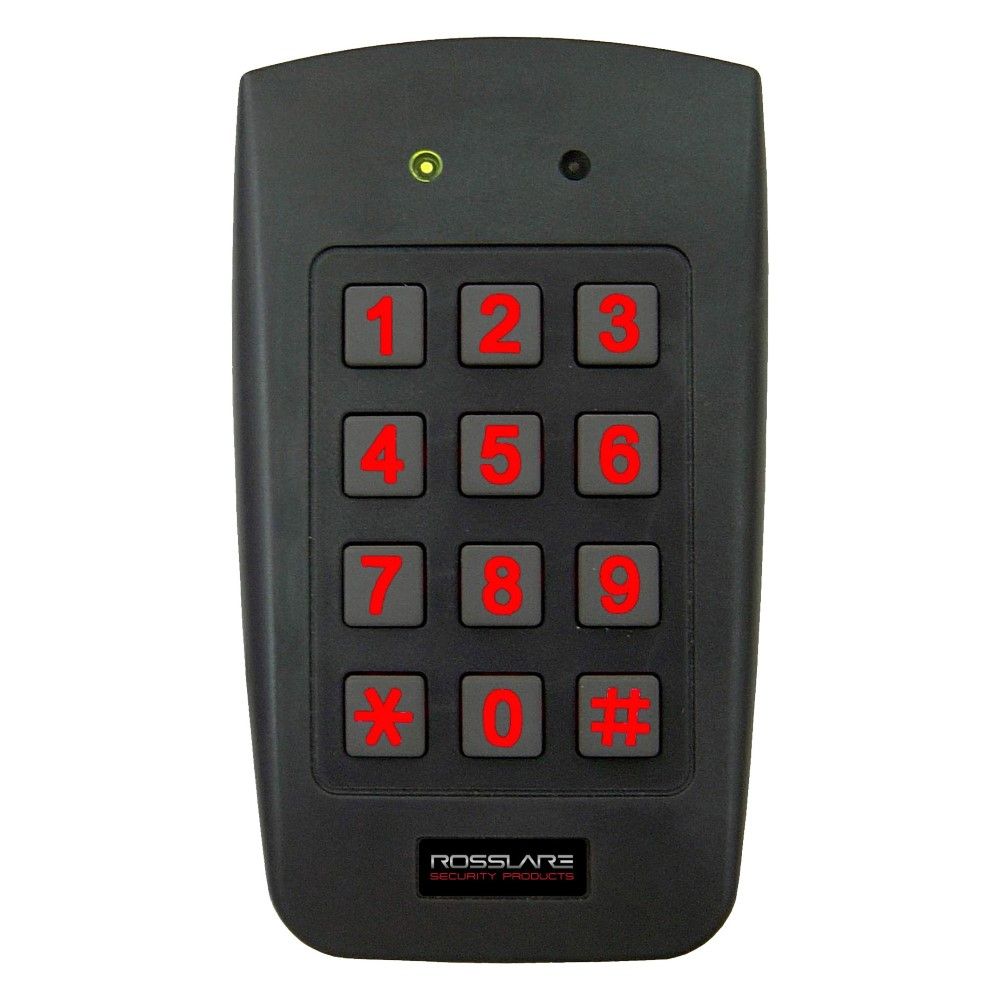

Rosslare Standalone 3x4 PIN Keypad, 2 Form C Outputs Backlit, 500 Users, IP65
ROS-ACF43
AVAILABLE TO ORDER
Rosslare Standalone 3x4 PIN Keypad, 2 Form C Outputs Backlit, 500 Users, IP65
Rosslare's standalone backlit PIN controller is used for both indoor and outdoor systems where PIN credentials are required. This durable model can be easily programmed with up to 500 users on a single door.
- Up to 500 users can be coded using Smart enrol and delete technology
- A mounting template and installation kit are provided
- 3 security modes and 3 user levels
- Suitable for mullion installations
- Programmable PIN code length of 4-digits to 8-digits
- Powered either by transformer (AC) or regulated power supply (DC)
- IP65 water-resistant and UV-resistant
- Internal buzzer
- Two inputs: REX and Auxiliary
- Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
- Two tri-coloured status/programming LEDs
- Built-in optical back tamper
- 12-24V DC or 16-24V AC
Datasheets
Rosslare's standalone backlit PIN controller is used for both indoor and outdoor systems where PIN credentials are required. This durable model can be easily programmed with up to 500 users on a single door.
- Two inputs: REX and Auxiliary
- Two Form C, 2 Amp outputs: Lock Strike and Auxiliary
- Two tri-coloured status/programming LEDs
- Built-in optical back tamper
- 12-24V DC or 16-24V AC
