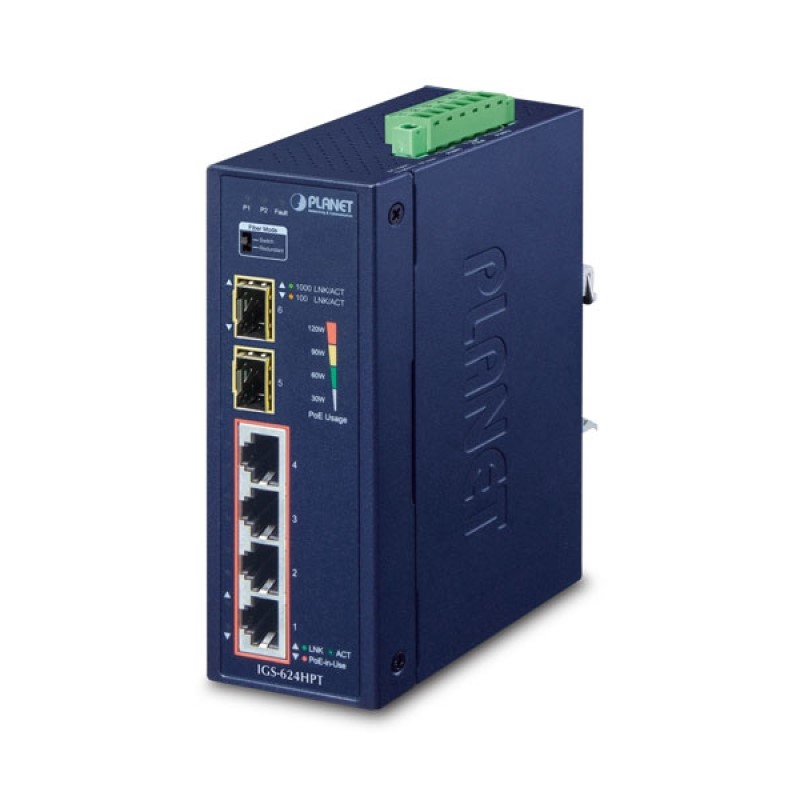

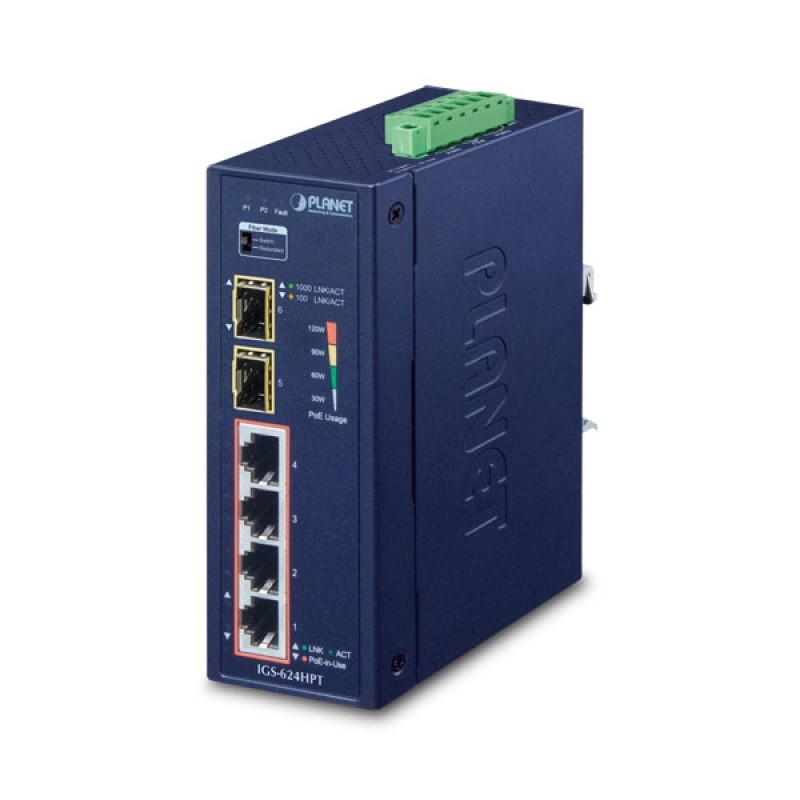

Planet 4 Port Industrial Gigabit Switch, 4 x 30W+ Ports + 2 SFP Ports (-40 to 75 C)

PLA-IGS-624HPT
AVAILABLE TO ORDER
Planet 4 Port Industrial Gigabit Switch, 4 x 30W+ Ports + 2 SFP Ports (-40 to 75 C)

The Planet PLA-IGS-624HPT is an industrial gigabit 802.3at PoE+ switch providing non-blocking wire-speed performance and great flexibility for gigabit Ethernet extension in harsh industrial environments. It provides 4-port 10/100/1000Base-T copper with 802.3af/at PoE injector and 2 extra 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged case with redundant power system. The PLA-IGS-624HPT is well suited for applications related to deploying surveillance systems, and securing control and wireless services in climatically demanding environments with wide temperature ranges between -40 to 75 degrees C.

  • 4-port 10/100/1000Base-T RJ-45 with IEEE 802.3af / 802.3at PoE injector
  • 2-port SFP slot interface, SFP supports 1000Base-X and 100Base-FX transceiver via DIP switch configured
  • Complies with IEEE 802.3af / IEEE 802.3at Power over Ethernet plus end-span PSE
  • Up to 4 IEEE 802.3af / 802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Provides DC 52V power over RJ-45 Ethernet cable to PD with Ethernet port
  • Auto-detects EEE 802.3af/at equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m

add remove Description

No description available for this product.
