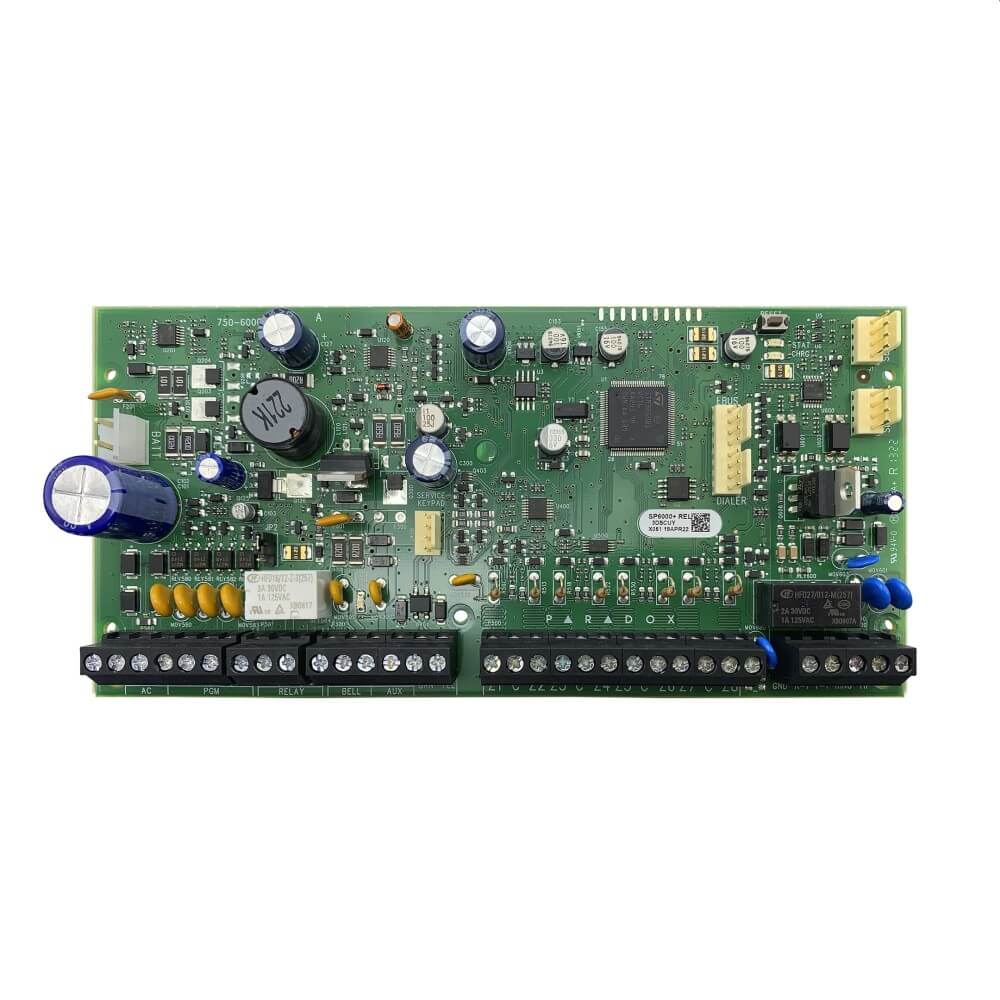

Paradox Alarm Controller 8-32 Zones, 32 Users, 2 Areas, 5-16 PGM's, PCB Only

Paradox Alarm Controller 8-32 Zones, 32 Users, 2 Areas, 5-16 PGM's, PCB Only



Code: PDX-SP6000+
Brand: Paradox
Product Details
Paradox Alarm Controller 8-32 Zones, 32 Users, 2 Areas, 5-16 PGM's, PCB Only


The Paradox PDX-SP6000+ is the successor to the SP6000 with a few enhancements. The event memory has been increased to 512 events and the AUX output current to 1000mA. To obtain this output, the CSD-T1630S-T 16VAC, 3A transformer is required. If the standard 16VAC-1.5A plug pack is used, the AUX output current is limited to the standard 600mA. The PDX-SP6000+ now includes a second serial port that is a backup IP reporting channel for the first serial port.

  • Loaded with CSD default settings
  • Supports zone doubling
  • 1000mA AUX output
  • 512 event history
  • 2 Serial Ports - primary and backup IP reporting
  • Touch screen keypads support installer quick menu programming
  • Compatible with Insite Gold smart phone app
  • Compatible with BlueEye smart phone app
  • Power supply: 16VAC - 1.5A for 600mA output
  • Power supply: 16VAC - 3A for 1000mA output
  • Battery charger: 13.8V DC @700mA
  • Zones: 8 doubled to 16 and expandable to 32
  • PGM's: 5 expandable to 16
  • User codes: 32
  • Partitions: 2
