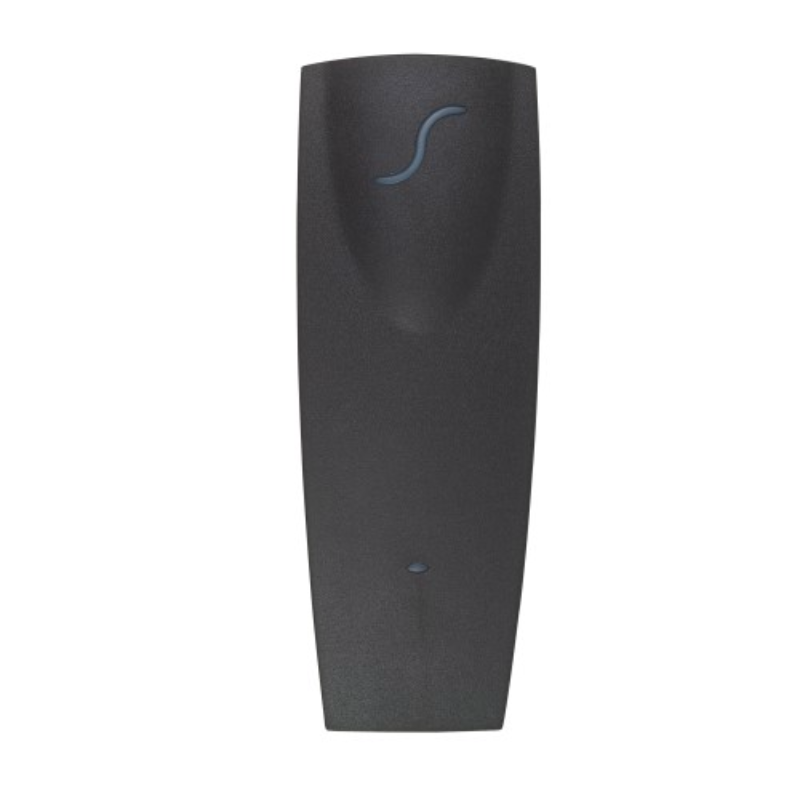

The Paradox R910 are reliable and cost effective readers, that use only 4 wires instead of the usual 7 to connect to the 4-wire ACM12 single door access control modules. Designed for both the Paradox EVO192 and EVOHD control panels, the R910 also includes a tri-colour LED display (red, green and amber) that is used to indicate the reader's status.

• Only compatible with Paradox ACM12 single door access control modules
• Supports arming and disarming
• 2 readers can be used for reader IN and reader OUT

• Power Input: 11Vdc to 14.5Vdc
• Current Consumption: 60mA
• Frequency: 125KHz Pulse Modulated
• Operating Temperature: -35C to +65C
• Cables: 4 wires (twisted pair recommended)
